8210SRC21.21

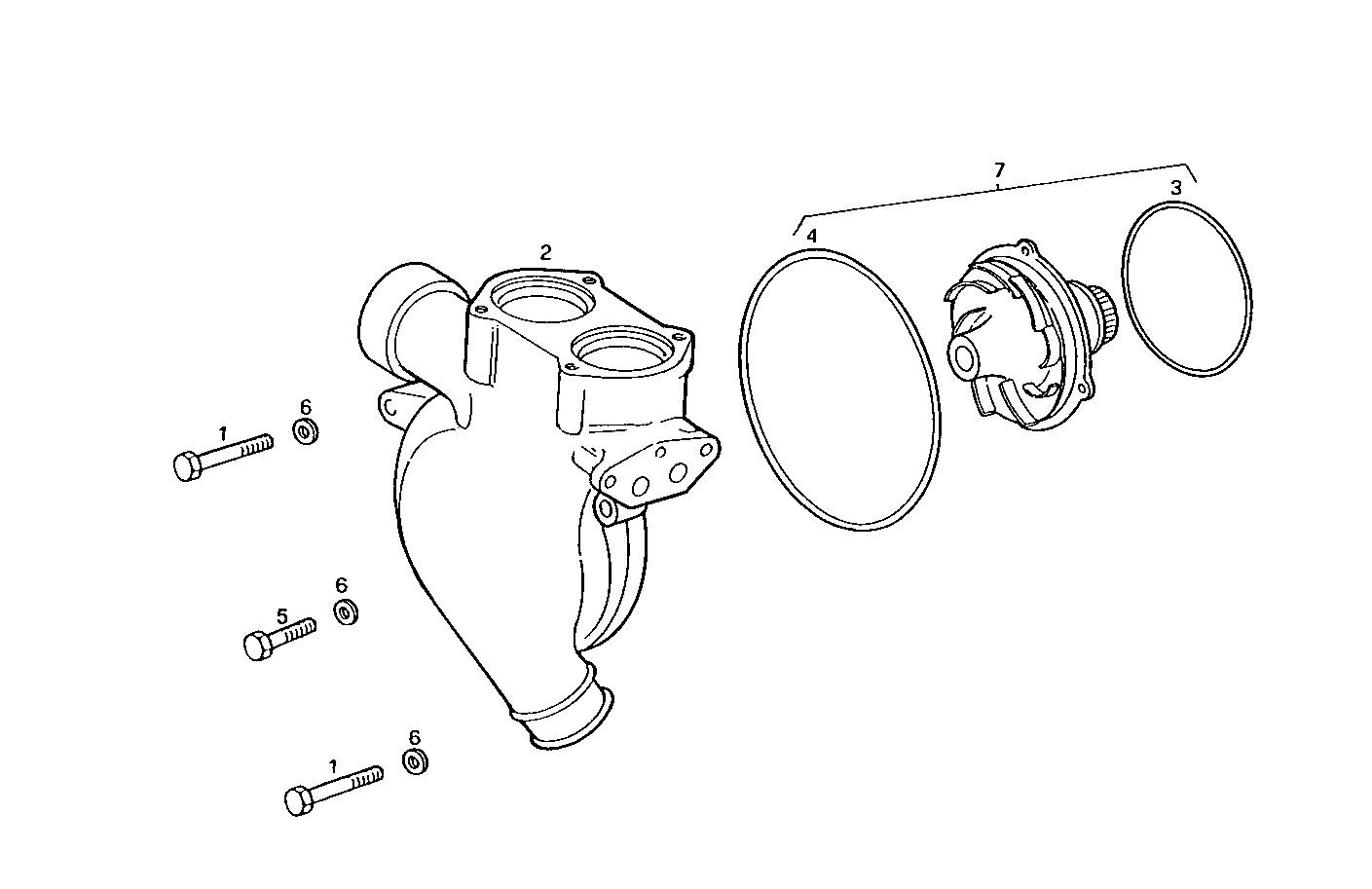

3200.098 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 15972224 | HEXAGON BOLT M10X1,25X120 MM |
| 2 | 99450904 | WATER PUMP HOUSING M8X1,25X30 MM |
| 3 | 17285281 | O-RING Ø71,12 MM SP=2,62 MM |
| 4 | 98461200 | O-RING Ø120,32 MM SP=2,62 |
| 5 | 15005924 | HEXAGON BOLT M10X1,25X150 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 98479675 | WATER PUMP ASSY |
