8210SRC21.21

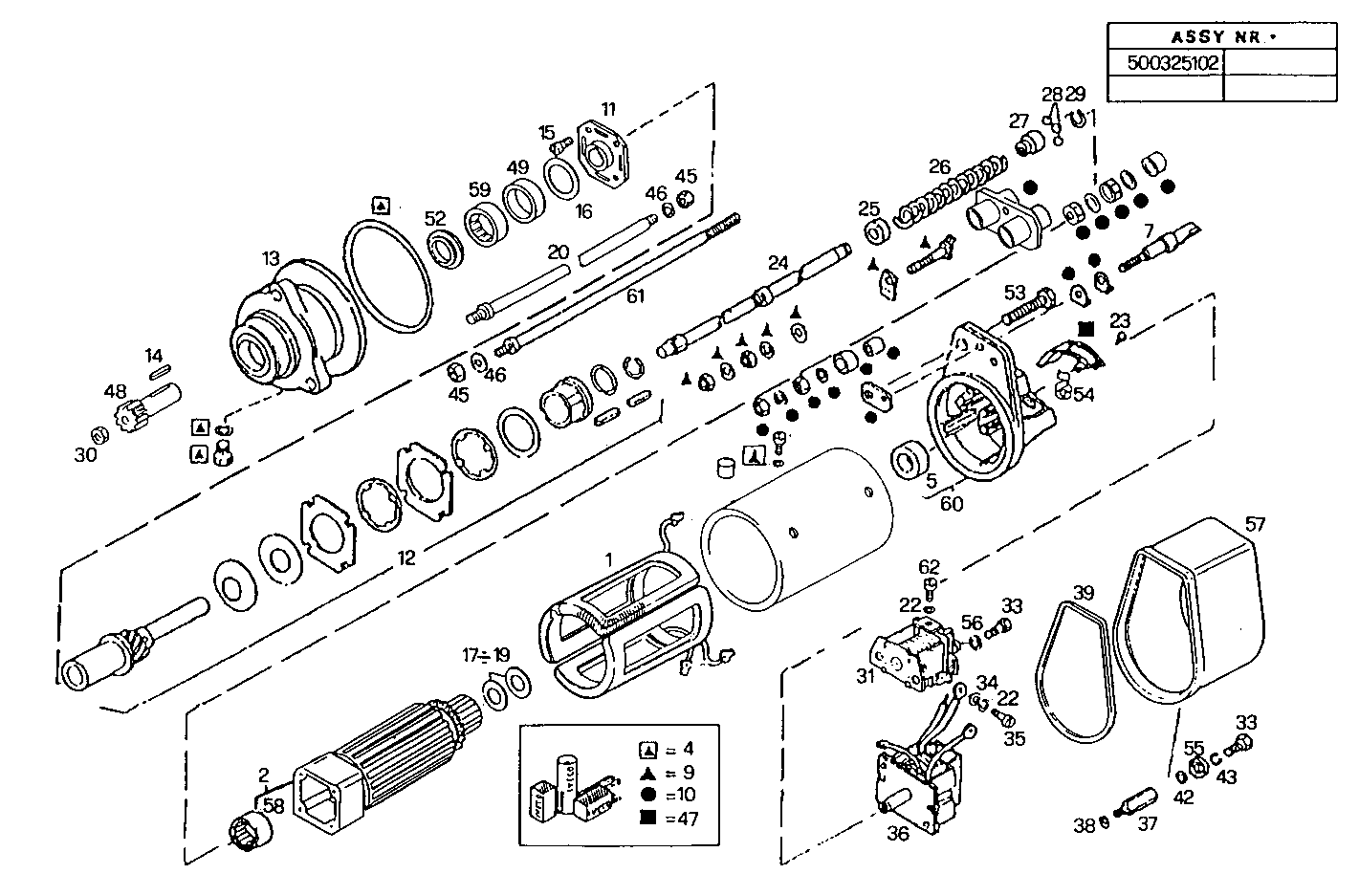

3630.039 STARTER MOTOR (COMPONENTS)

Iveco/FPT STARTER MOTOR (COMPONENTS)

Item Part number Description
1 8198726 STARTER WINDING
2 8121267 STARTER ARMATURE ASSY
3 42533166 PARALLEL PIN
4 79052274 KIT-STARTER
5 79052278 BUSH
7 42532370 SPRING CONTACT
9 42532039 KIT-STARTER
10 93161762 KIT-STARTER ASSY
11 9920338 FLANGE
12 79052241 SHAFT ASSY
13 9930441 STARTER SUPPORT ASSY
14 1117970 KEY
15 79052237 SCREW
16 79052239 RING
17 79052250 SHIM 0,30 MM
18 1289919 SHIM 0,50 MM
19 1289920 WASHER SP=0,2 MM
20 9934324 STUD
22 17494634 SPRING WASHER Ø5,1X9,2 MM
23 42533167 SCREW
24 8121268 SHAFT ASSY
25 79052244 RING
26 79052245 SPRING
27 79052246 RING SP=0,5 MM
28 79052247 BALL
29 9920367 CIRCLIP Ø125 MM SP=4 MM
30 93190269 NUT ASSY
31 79052269 STARTER SOLENOID
33 93163744 SCREW ASSY
34 93159935 WASHER M6X12 MM
35 79028449 SCREW
36 79052266 STARTER SOLENOID
37 79052263 PIN
38 9920379 WASHER
39 79052256 WASHER SP=0,5 MM
41 14305721 SCREW
42 1289929 GASKET
43 79052265 BUSH
45 17037821 HEXAGON NUT M6X1
46 17094604 WASHER Ø6X11 MM
47 42531954 CARBON BRUSHES
48 93160544 STARTER PINION Ø116 MM SP=1,5 MM
49 79052271 BUSH
52 79052272 GASKET
53 9920668 SCREW Ø125 MM SP=4 MM
54 1290139 SPRING
55 13160617 SPRING LOCKWASHER
56 10516673 SPRING WASHER Ø8,1X14,8 MM
57 42533168 COVER
58 1905092 ENGINE BEARINGS
59 1905095 ENGINE BEARINGS
60 42530594 SCREW M10X40 MM
61 8123714 STUD
62 1123746 HEXAGON BOLT M5X10 MM (8.8)
