8210SRC21.30

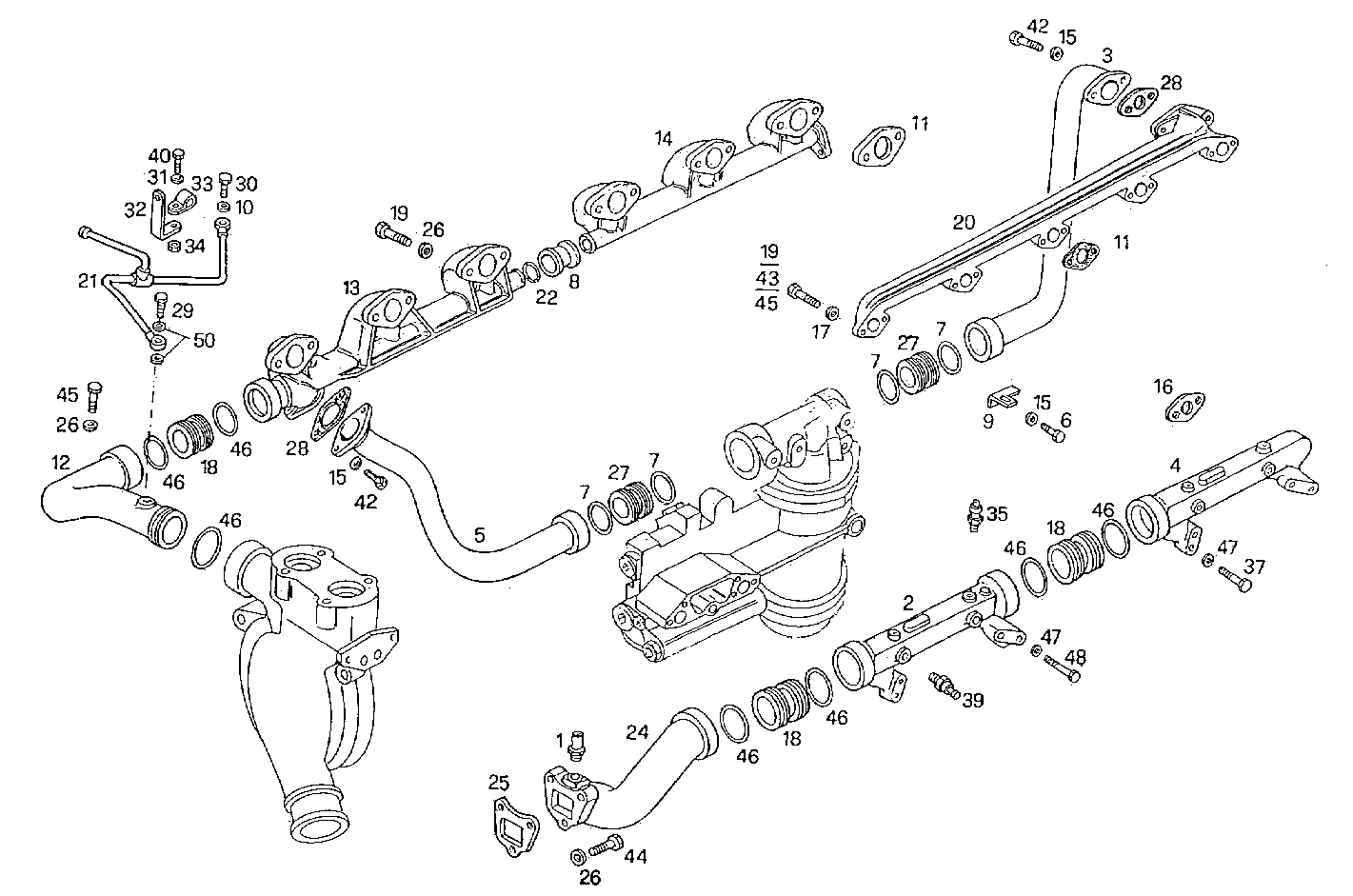

3210.162/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4633506 THREADED UNION M22X1,5
2 98416925 WATER MANIFOLD FRONT
3 99438836 WATER PIPE
4 98416926 WATER MANIFOLD REAR
5 99438837 WATER PIPE
6 16605424 SCREW M8X16 MM (8.8)
7 98469337 O-RING
8 4762647 CONNECTOR SLEEVE
9 99438833 RETAINER BUNDY
10 98474306 WASHER Ø12X20 MM SP=1,9 MM
11 98415624 FLAT ENGINE GASKET
12 98478087 WATER PIPE
13 4813618 WATER MANIFOLD
14 4813620 WATER MANIFOLD REAR
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 4852097 FLAT ENGINE GASKET
17 4852211 WASHER
18 4859434 CONNECTOR SLEEVE [from 301481]
19 16605924 SCREW M8X40 MM
20 98471454 WATER MANIFOLD
21 99475753 WATER PIPE
22 98458442 O-RING Ø24,99 MM SP=3,53 MM [from 657424]
24 98415295 WATER PIPE
25 61318850 FLAT ENGINE GASKET
26 17094914 WASHER 8x16
27 99431278 CONNECTOR SLEEVE ASSY
28 4863951 FLAT ENGINE GASKET
29 4864080 SCREW CONNECTOR M10X1,25
30 4864082 BANJO BOLT M12X1,5X25 MM
31 17088474 WASHER Ø6X12 MM
32 98466074 RETAINER
33 17314890 CLIP
34 17037821 HEXAGON NUT M6X1
35 4857250 TRANSMITTER
37 11343821 HEXAGON BOLT M10X1,25X50 MM
39 4837951 TEMP. TRANSMITTER CEBI
40 16603624 HEXAGON BOLT M6X16 MM (8.8)
42 16605734 HEXAGON BOLT M8X30 MM
43 16605824 HEXAGON BOLT M8X35 MM
44 16606024 SCREW M8X45 MM
45 16606524 HEXAGON BOLT M8X70 MM
46 98411203 O-RING
47 17097124 WASHER 10x21
48 15888721 HEXAGON BOLT M10X1,25X55 MM
50 98474305 WASHER Ø10X17 MM SP=2,3
