8210SRC21.30A001

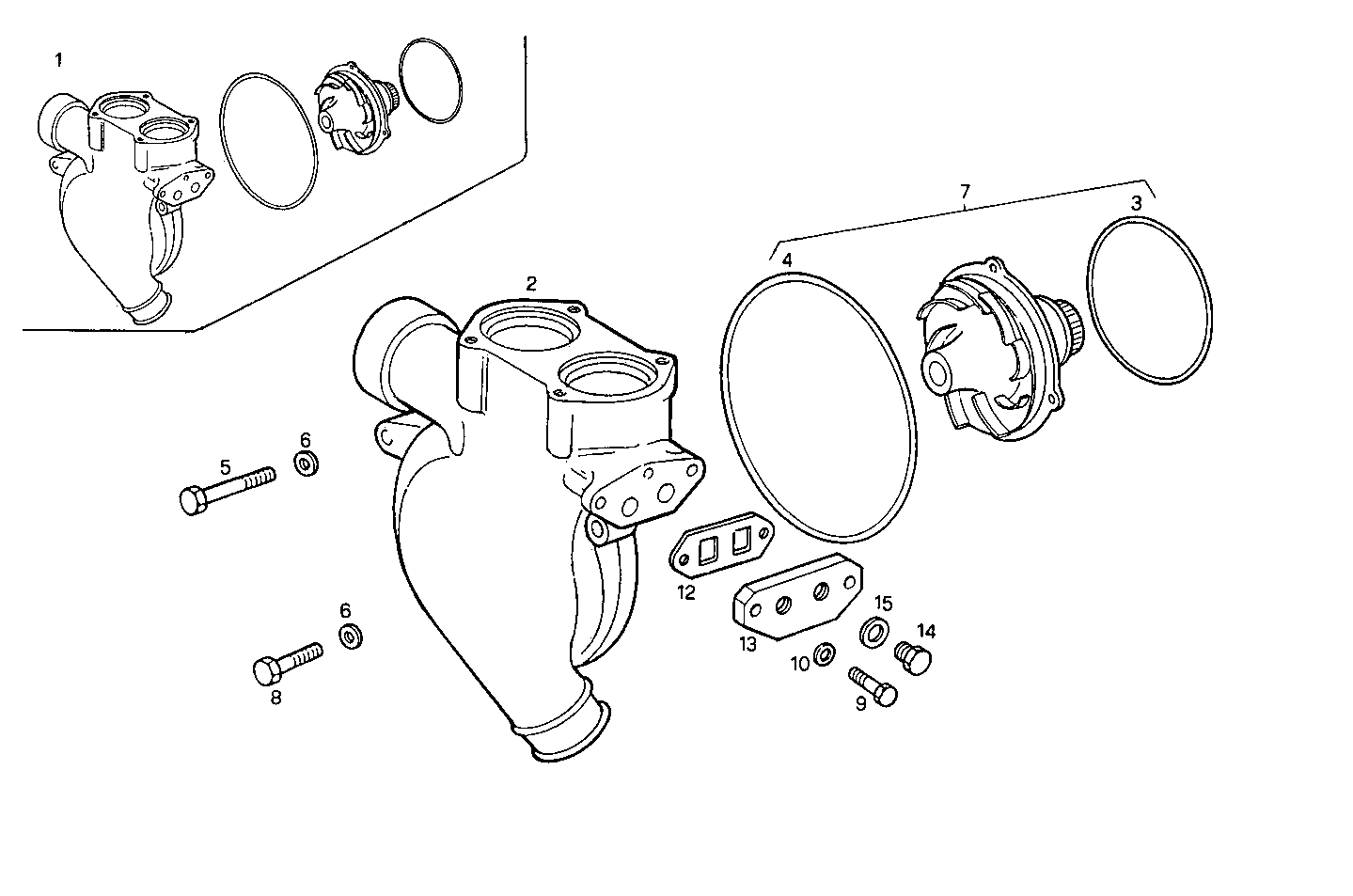

3200.088 WATER PUMP

Iveco/FPT WATER PUMP

Item Part number Description
1 500350783 WATER PUMP ASSY
2 99450904 WATER PUMP HOUSING M8X1,25X30 MM
3 17285281 O-RING Ø71,12 MM SP=2,62 MM
4 98461200 O-RING Ø120,32 MM SP=2,62
5 15972824 SCREW M10X1,25X150
6 17090174 SPRING WASHER Ø10X20 MM
7 98479675 WATER PUMP ASSY
8 15972224 HEXAGON BOLT M10X1,25X120 MM
9 16690524 SCREW M8X20 MM (8.8)
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 61318823 FLAT ENGINE GASKET
13 98495062 SPACING BAR
14 16992411 THREADED PLUG M16X1,5
15 4858609 WASHER Ø16X22 MM SP=1,5 MM
