8210SRC21.31A001

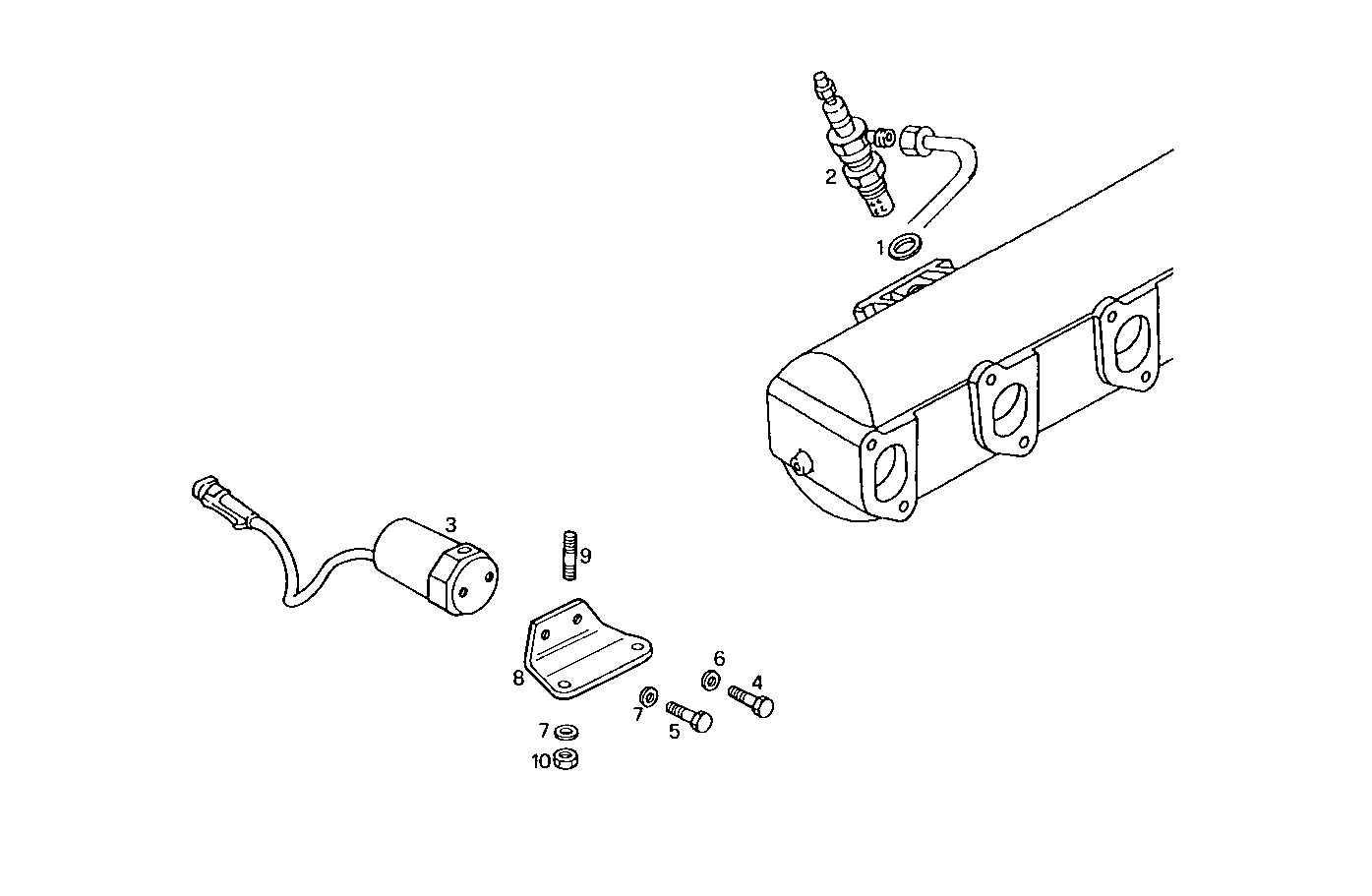

3650.035 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 2 | 4848045 | THERMO-STARTER BERU 23V |
| 3 | 4861873 | ELECT.V.VE.PREHEAT |
| 4 | 10977521 | HEXAGON BOLT M5X10 MM |
| 5 | 10979424 | HEXAGON BOLT M6X10 MM |
| 6 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 98435202 | RETAINER |
| 9 | 13540821 | STUD M6X12X14 MM |
| 10 | 17637821 | NUT |
