8210SRC22.00

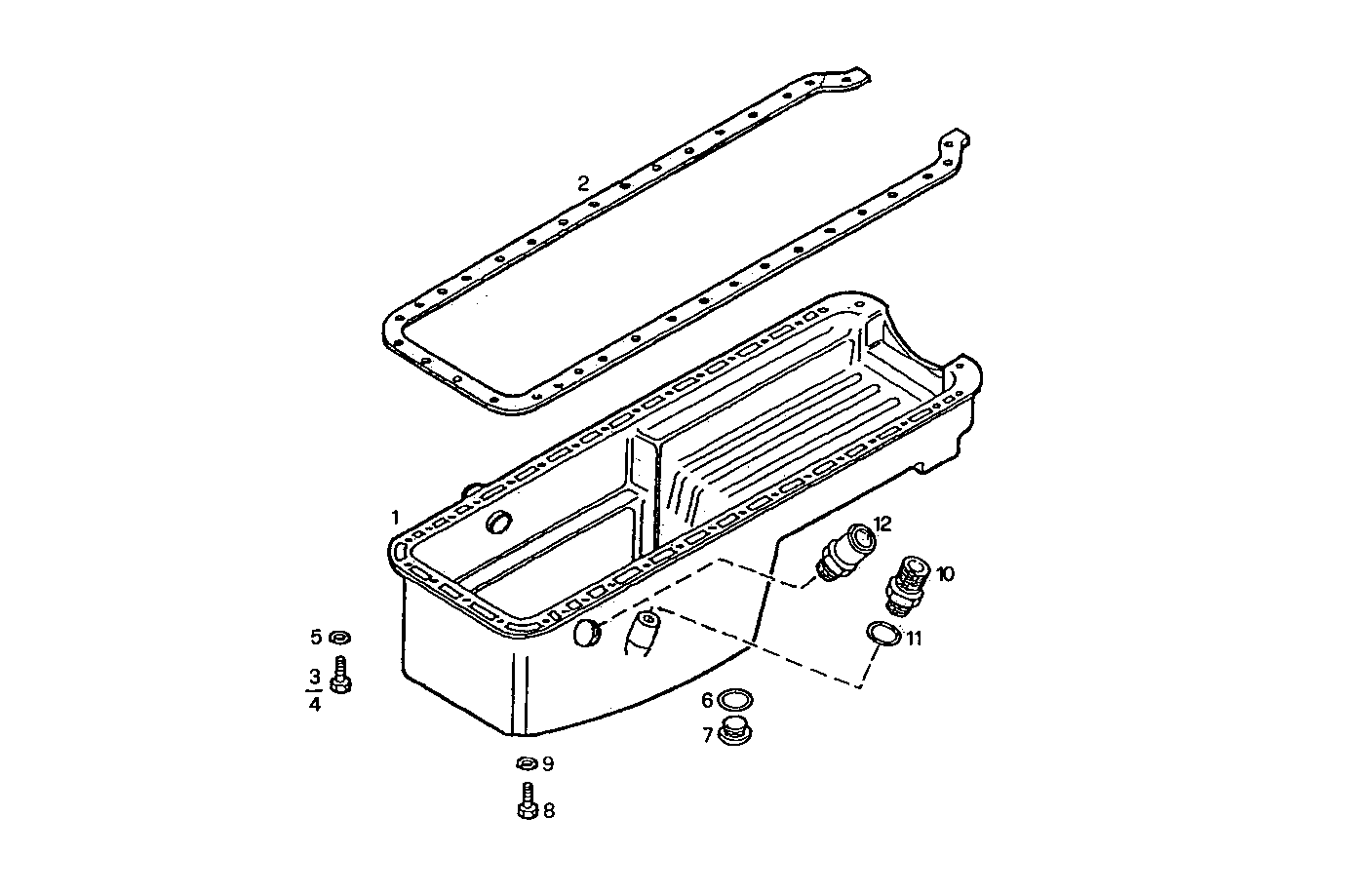

0420.132 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 61318975 | OIL SUMP ASSY |
| 2 | 98414688 | OIL SUMP GASKET |
| 3 | 11307024 | SCREW M10X1,25X40 MM |
| 4 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 5 | 12601474 | WASHER Ø10X21X1 MM |
| 6 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 7 | 98491299 | THREADED PLUG M22X1,5 |
| 8 | 10923624 | SCREW |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 98427177 | THREADED UNION |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 12 | 61319270 | THREADED UNION |
