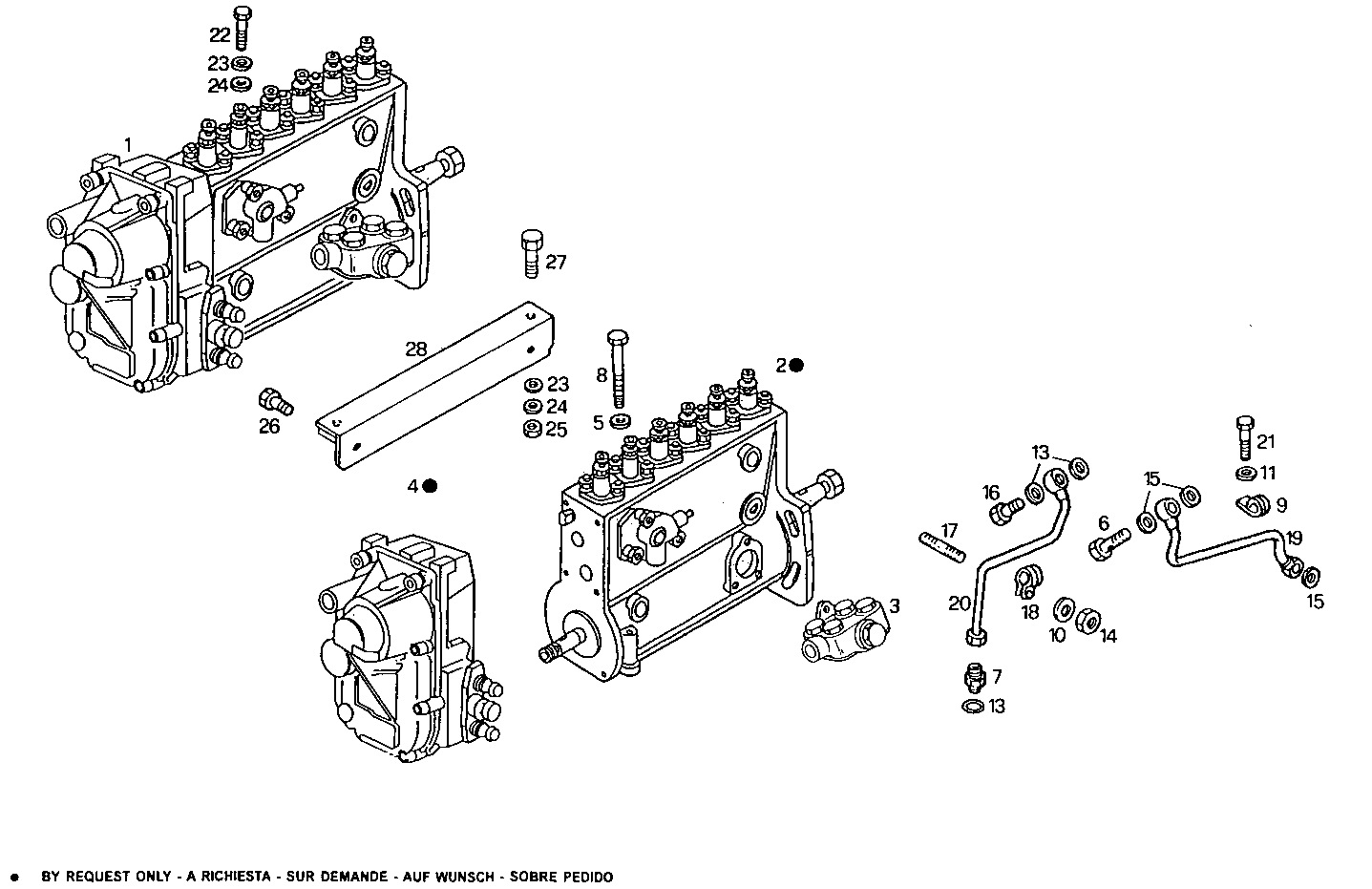

| Item |
Part number |
Description |
|
1 |
98423774 |
INLINE INJECT.PUMP ASSY |
|
3 |
93193153 |
FUEL PUMP ASSY |
|
5 |
17090274 |
WASHER Ø10X20 MM |
|
6 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
7 |
500302990 |
THREADED UNION M10X1 - M12X1,5 |
|
8 |
15971824 |
SCREW M10X1,25X100 |
|
9 |
99431539 |
PIPE CLIP VALEO 10"1/2 |
|
10 |
17088774 |
WASHER Ø6 MM |
|
11 |
17090074 |
SPRING WASHER Ø10X20X1,9 MM |
|
13 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
14 |
17037821 |
HEXAGON NUT M6X1 |
|
15 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
16 |
4864079 |
SCREW CONNECTOR M10X1 |
|
17 |
16727624 |
STUD M6X16 MM |
|
18 |
17314590 |
RETAINER Ø6 MM |
|
19 |
99431265 |
HYDRAULIC LINE |
|
20 |
99431263 |
HYDRAULIC LINE |
|
21 |
15970524 |
HEXAGON BOLT M10X1,25X20 |
|
22 |
16625634 |
HEXAGON BOLT M8X30 MM |
|
23 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
24 |
12647124 |
WASHER Ø8X20 MM |
|
25 |
17037931 |
HEXAGON NUT M8X1,25 |
|
26 |
16673534 |
HEXAGON BOLT M8X16 MM |
|
27 |
16625734 |
HEXAGON BOLT M8X35 |
|
28 |
99436241 |
SUPPORT BUNDY |
