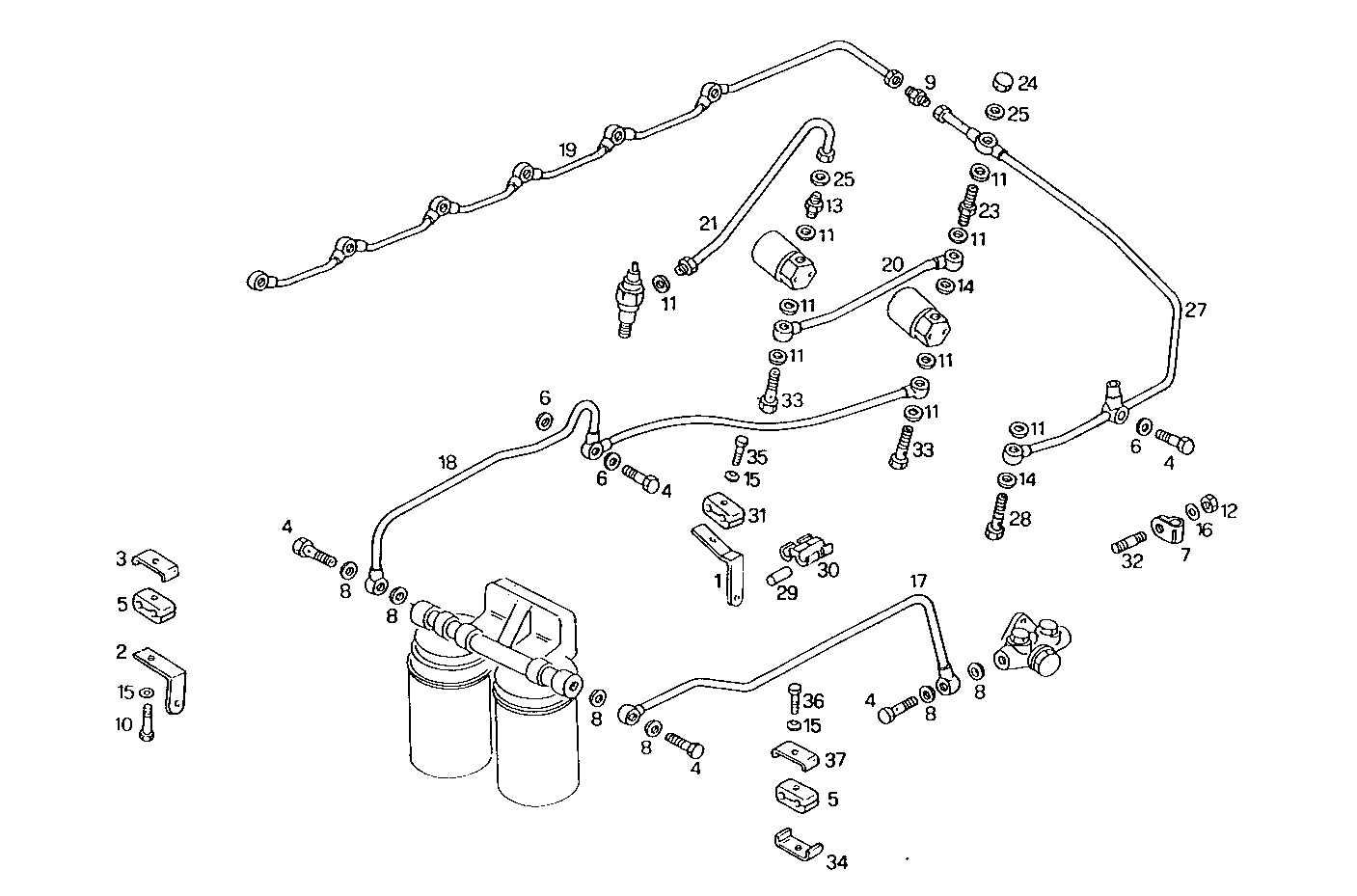

| Item |
Part number |
Description |
|
1 |
99441164 |
FASTENING BRACKET BUNDY |
|
2 |
99485093 |
FASTENING BRACKET |
|
3 |
99447234 |
CLIP |
|
4 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
5 |
4871771 |
RUBBER LUG |
|
6 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
7 |
10440990 |
PIPE CLIP Ø45 MM |
|
8 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
9 |
16501511 |
SCREW CONNECTOR M12X1,5 |
|
10 |
16603924 |
HEXAGON BOLT M6X30 MM |
|
11 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
12 |
17037821 |
HEXAGON NUT M6X1 |
|
13 |
500302990 |
THREADED UNION M10X1 - M12X1,5 |
|
14 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
15 |
17088474 |
WASHER Ø6X12 MM |
|
16 |
17088774 |
WASHER Ø6 MM |
|
17 |
98497592 |
FUEL LINE |
|
18 |
98497594 |
FUEL LINE |
|
19 |
98435435 |
FUEL LINE |
|
20 |
98487600 |
FUEL LINE |
|
21 |
98487616 |
FUEL LINE |
|
23 |
98469450 |
BYPASS VALVE |
|
24 |
98469675 |
THREADED PLUG M12X1 |
|
25 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
27 |
98487619 |
FUEL LINE |
|
28 |
4864077 |
SCREW CONNECTOR |
|
29 |
17816614 |
SPACING BAR Ø8,5X18 MM SP=30 MM |
|
30 |
98429625 |
SPRING CLAMP |
|
31 |
4746524 |
SPRING CLAMP |
|
32 |
16727624 |
STUD M6X16 MM |
|
33 |
4864079 |
SCREW CONNECTOR M10X1 |
|
34 |
99481181 |
CLIP BUNDY |
|
35 |
16603824 |
SCREW M6X25 |
|
36 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
37 |
99442252 |
RETAINER |
