8210SRC22.00

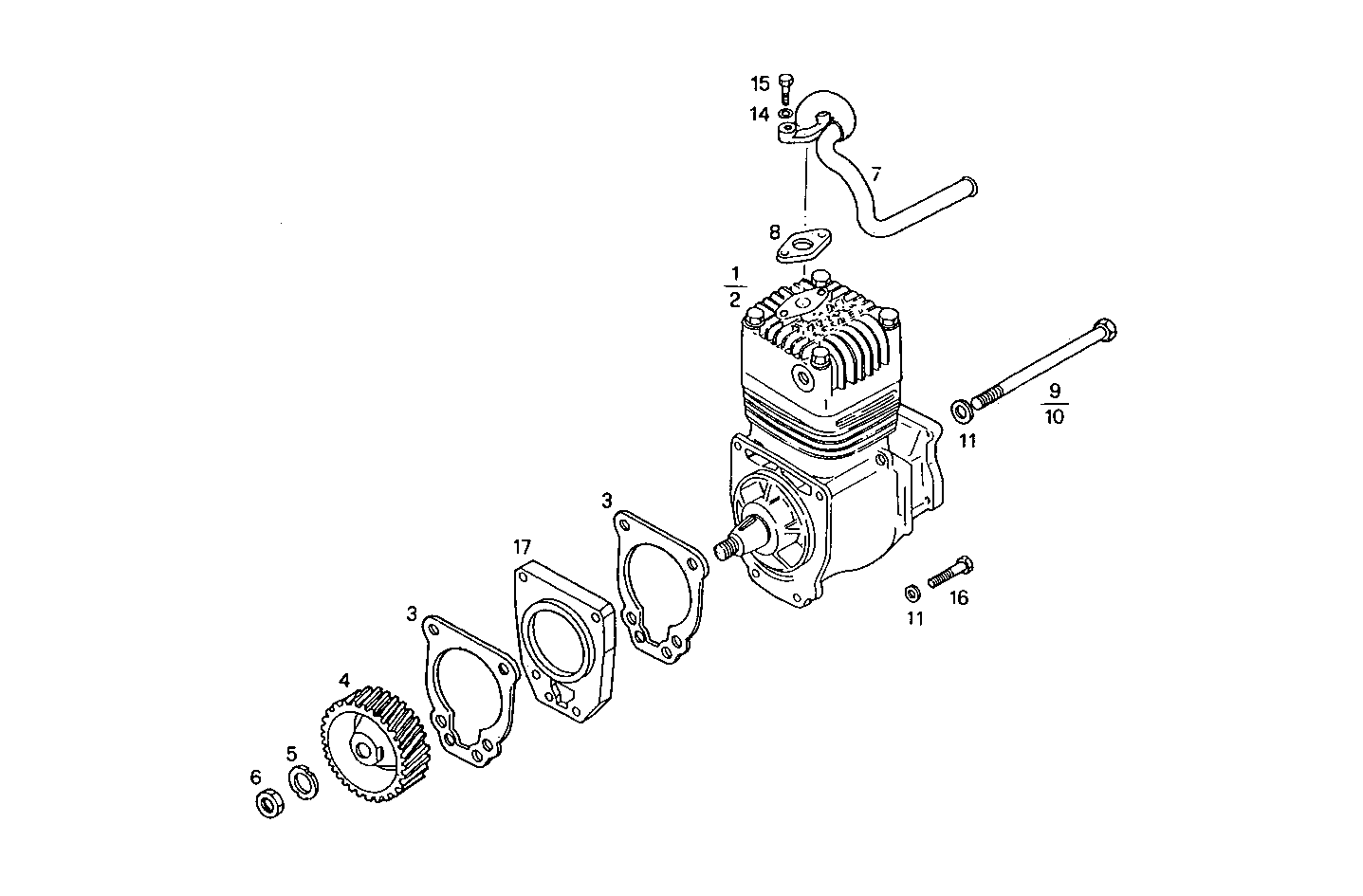

3800.021 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500310901 | AIR COMPRESSOR ASSY KNORR |
| 2 | 500310905 | AIR COMPRESSOR ASSY WABCO |
| 3 | 4864032 | FLAT ENGINE GASKET |
| 4 | 99449306 | GEAR |
| 5 | 17095814 | WASHER |
| 6 | 16980731 | HEXAGON NUT |
| 7 | 98438667 | SUCTION LINE |
| 8 | 4863948 | FLAT ENGINE GASKET |
| 9 | 15972624 | HEXAGON BOLT |
| 10 | 98434832 | HEXAGON BOLT M10X1,25X122 MM |
| 11 | 17090274 | WASHER Ø10X20 MM |
| 14 | 17094914 | WASHER 8x16 |
| 15 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 16 | 14308821 | SCREW M10X110 |
| 17 | 98424166 | SPACING BAR |
