8210SRE10.00

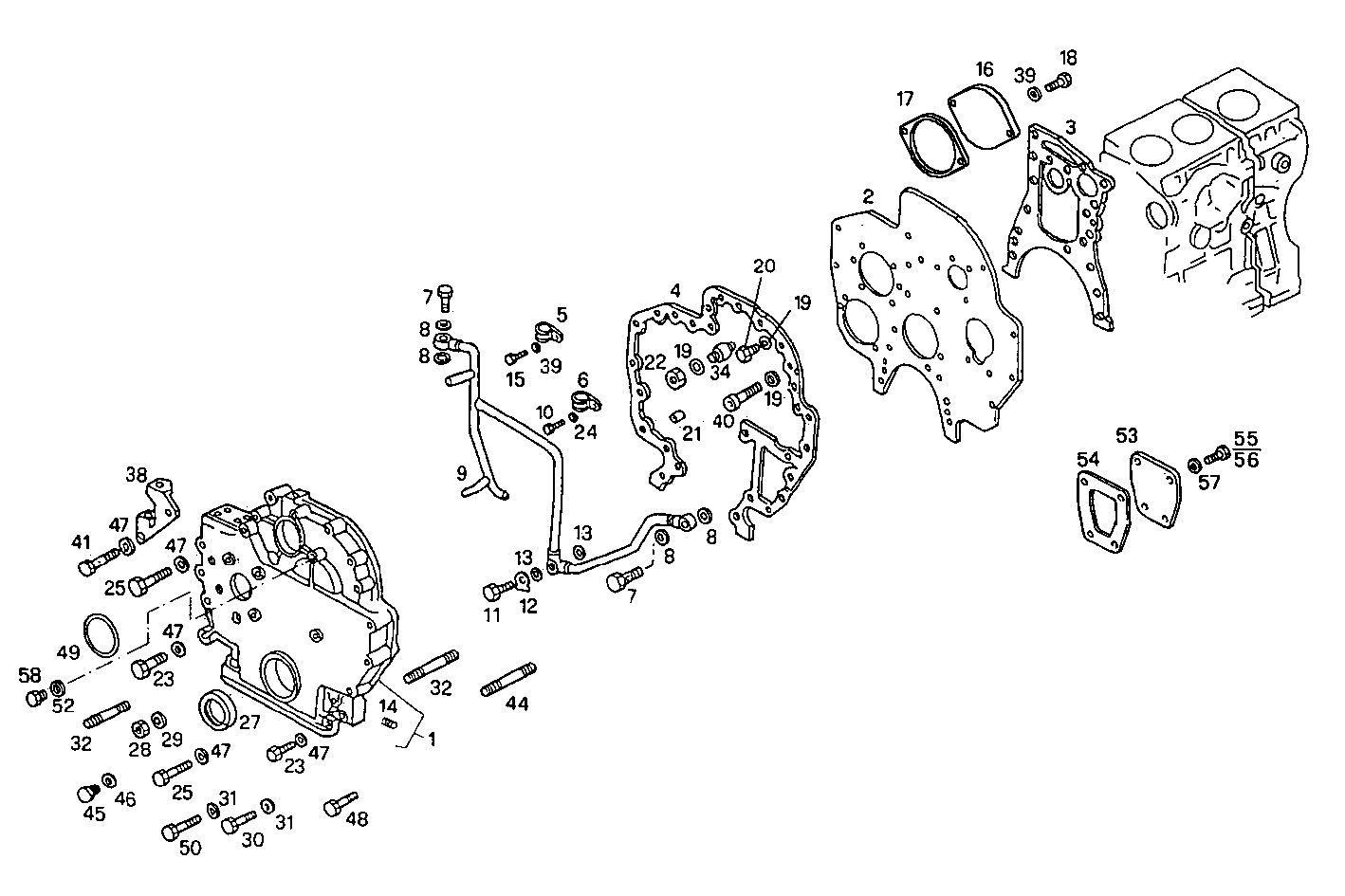

0430.188/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500348819 FRONT C.CASE COVER ASSY
2 99450902 PLATE
3 99431449 FLAT ENGINE GASKET
4 99450903 FLAT ENGINE GASKET
5 852410 FASTENING BRACKET
6 4656139 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 500302886 HYDRAULIC LINE [from 419250]
10 16042924 SCREW M8X1,25X10 MM
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 4858606 GASKET Ø10X14X1 MM
14 17849970 THREADED INSERT M10X1,25X20 MM
15 11343721 HEXAGON BOLT M10X65 MM
16 4773932 COVER REAR
17 98424208 GASKET
18 15970624 HEXAGON BOLT M12X1,25X22 MM
19 17090274 WASHER Ø10X20 MM
20 15970730 HEXAGON BOLT M10X25 MM
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 16606424 HEXAGON BOLT M8X65 MM
24 17094914 WASHER 8x16
25 16045124 HEXAGON BOLT M8X95
27 98467211 WASHER FRONT
28 17038521 HEXAGON NUT M12X1,5
29 12646904 WASHER
30 15971724 HEXAGON BOLT M10X1,25X95 MM
31 17095104 WASHER Ø10X21X2 MM
32 4628504 STUD
34 13449330 STUD M10X15X20 MM
38 98462000 SUPPORT
39 17090174 SPRING WASHER Ø10X20 MM
40 14307430 SOCKET-HEAD SCREW M10X1,25X25 MM
41 16606524 HEXAGON BOLT M8X70 MM
44 4666138 STUD
45 98436549 THREADED PLUG
46 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
47 17094924 WASHER Ø8X16 MM
48 15971424 HEXAGON BOLT M10X80 MM
49 17284381 O-RING Ø56,8 MM SP=2,62 MM
50 15972124 HEXAGON BOLT M10X115 MM
53 4687341 COVER
54 4864032 FLAT ENGINE GASKET
55 15970921 HEXAGON BOLT M10X1,25X35 MM
56 15970521 HEXAGON BOLT M10X20 MM
58 8007695 PLUG M10X1
