8210SRE10.00

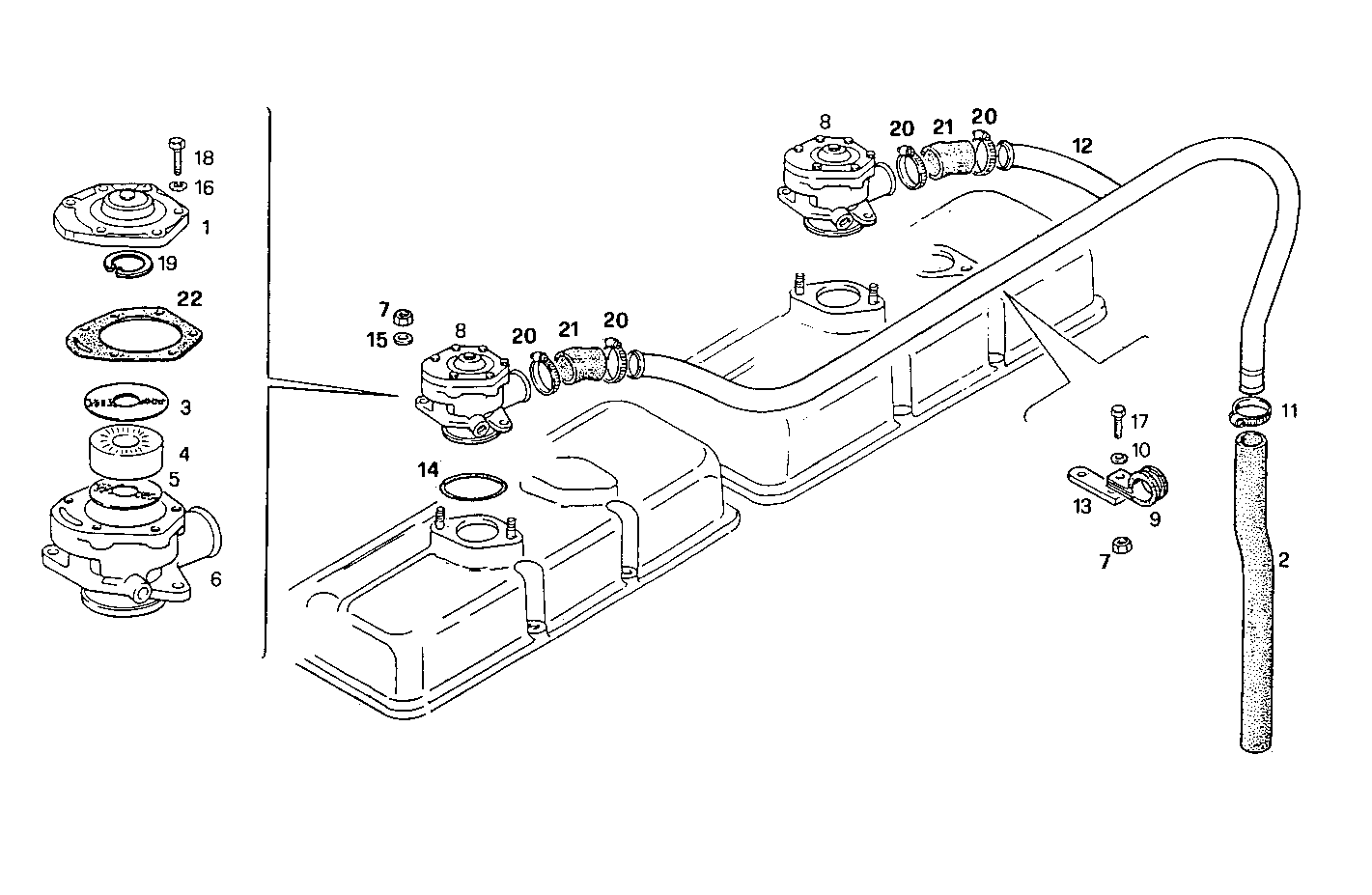

0450.159 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4771075 | COVER |
| 2 | 8025786 | OIL HOSE |
| 3 | 4771080 | DISC |
| 4 | 4771079 | FILTER |
| 5 | 4771081 | DISC |
| 6 | 4771073 | BEARING HOUSING |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 61320347 | BREATHER ASSY |
| 9 | 4760226 | FASTENING BRACKET |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17764691 | CLIP Ø25/40 MM |
| 12 | 8029680 | BREATHER PIPE |
| 13 | 4930333 | RETAINER |
| 14 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 15 | 12646704 | WASHER Ø8X21X1,5 MM |
| 16 | 17094701 | WASHER Ø6X12 MM |
| 17 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 18 | 16603924 | HEXAGON BOLT M6X30 MM |
| 19 | 16874976 | CIRCLIP Ø90,5 MM |
| 21 | 61319110 | RUBBER SLEEVE |
| 22 | 61320345 | FLAT ENGINE GASKET |
