8210SRE10.00

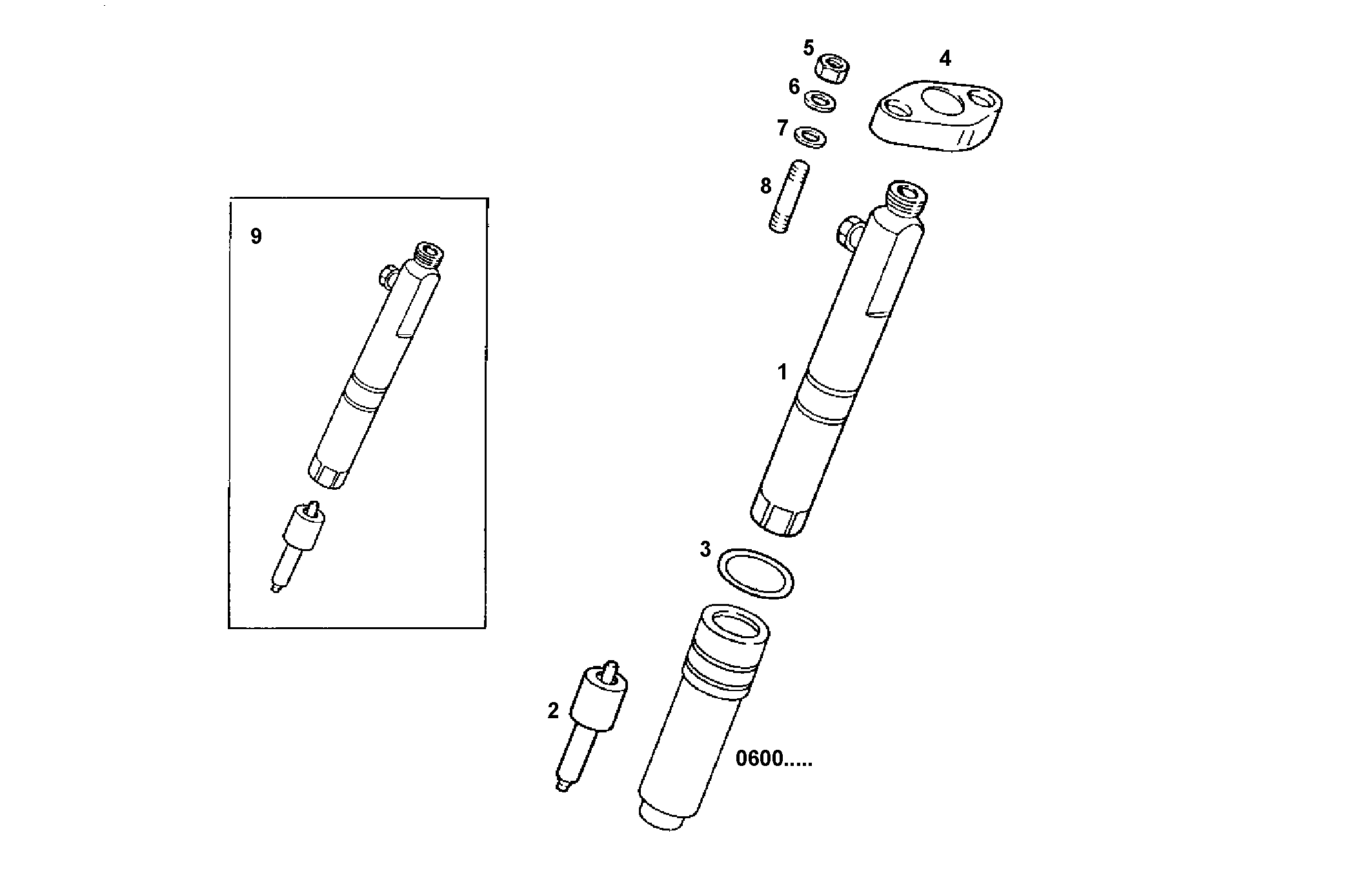

1420.082 INJECTORS

Iveco/FPT INJECTORS

Item Part number Description
1 98413208 NOZZLE HOLDER BOSCH
2 500301635 FUEL NOZZLE
3 17278581 O-RING Ø18,77 MM SP=1,78 MM
4 4863049 RETAINER
5 17038221 HEXAGON NUT M10
6 17090274 WASHER Ø10X20 MM
7 756671 WASHER
8 13450230 STUD M10X15X55 MM
9 8024794 NOZZLE ASSY
