8210SRE10.00

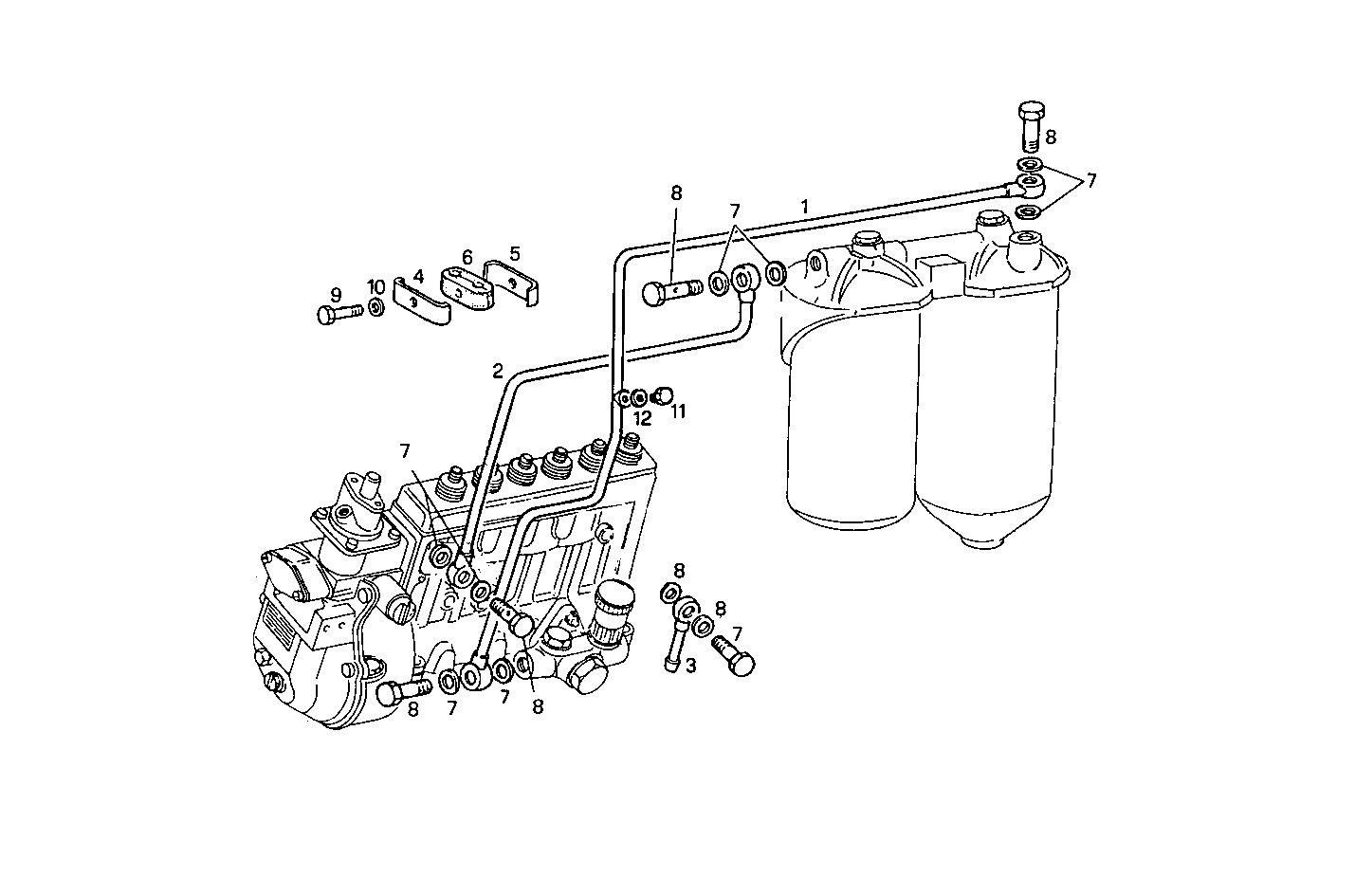

2030.166 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4865209 | FUEL LINE |
| 2 | 4865206 | FUEL LINE |
| 3 | 98404882 | PIPE SOCKET Ø8 MM |
| 4 | 4644288 | CLIP |
| 5 | 4644289 | CLIP |
| 6 | 4871771 | RUBBER LUG |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 16603824 | SCREW M6X25 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 4753563 | PLUG M10X1,5 |
| 12 | 4858606 | GASKET Ø10X14X1 MM |
