8210SRE10.00

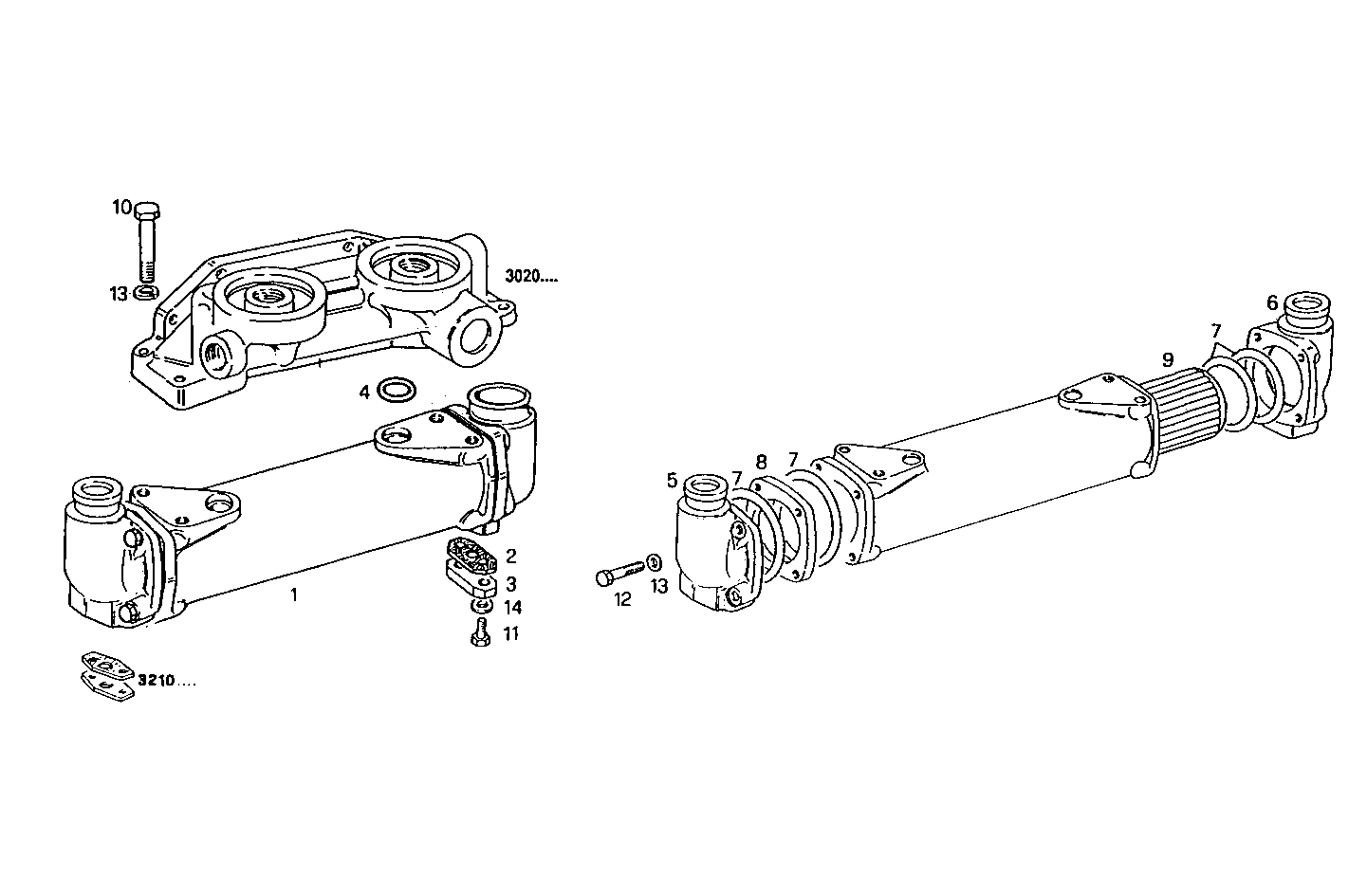

3100.087 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER ASSY MOTA |
| 2 | 4863948 | FLAT ENGINE GASKET |
| 3 | 593763 | FLANGE |
| 4 | 17282781 | O-RING Ø31,42 MM SP=2,62 MM |
| 5 | 7984210 | COVER |
| 6 | 7984211 | COVER |
| 7 | 93155996 | O-SEAL Ø104,2 MM SP=3 MM |
| 8 | 7984207 | GASKET |
| 9 | 7984209 | OIL COOLER |
| 10 | 11306921 | SCREW M10X1,25X30 |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 12 | 16043924 | SCREW M8X35 |
| 13 | 17090274 | WASHER Ø10X20 MM |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
