8210SRE10.00

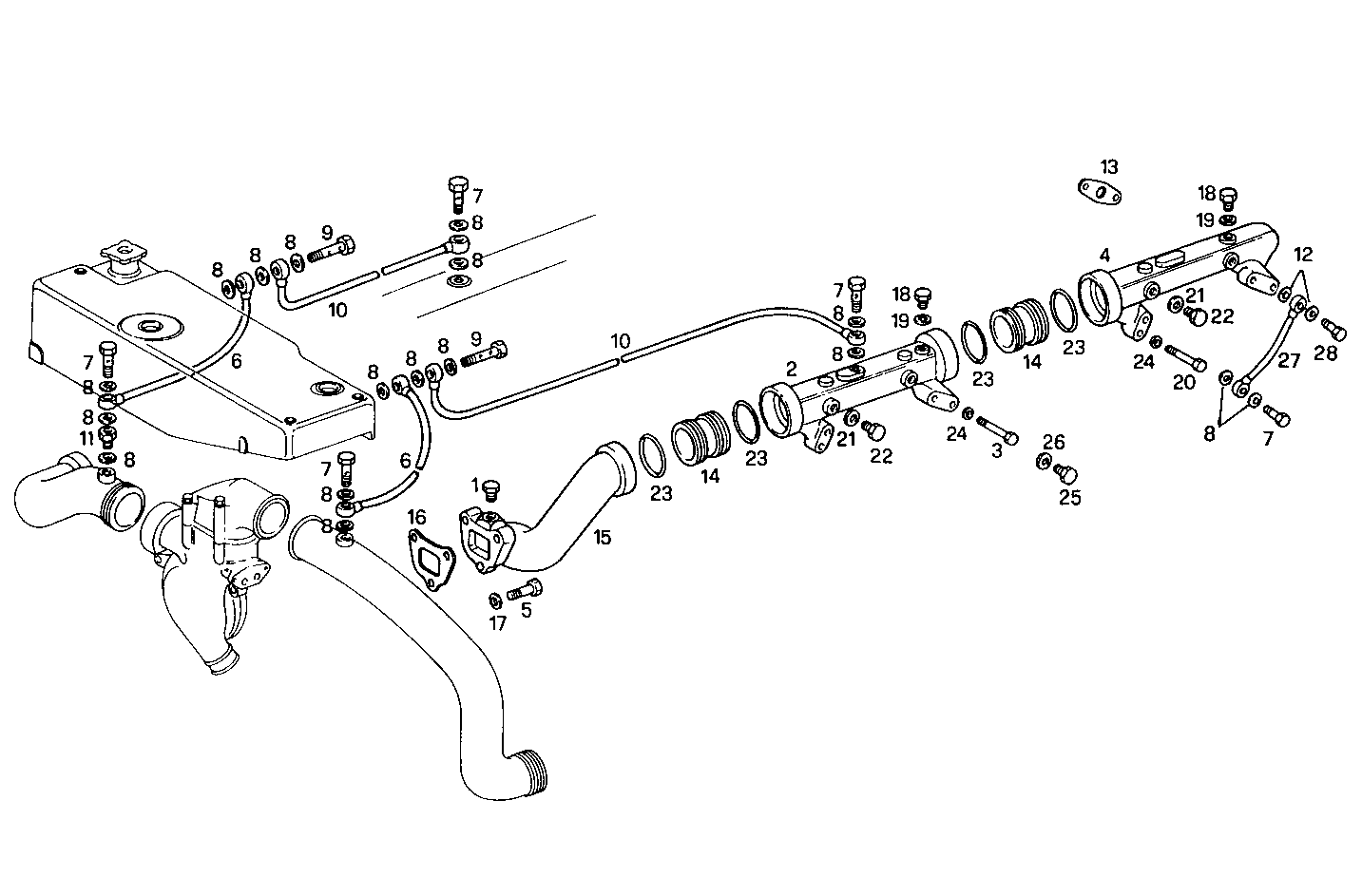

3210.206/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 16997711 LOCK PLUG M22X1,5
2 8021501 WATER MANIFOLD
3 15888721 HEXAGON BOLT M10X1,25X55 MM
4 8027937 WATER MANIFOLD
5 16606024 SCREW M8X45 MM
6 8018769 FUEL LINE L=240 MM
7 4864082 BANJO BOLT M12X1,5X25 MM
8 4858607 WASHER Ø12X17 MM SP=1,5 MM
9 8012607 SCREW CONNECTOR
10 8017577 AIR PIPE/DUCT L=380MM
11 8104714 PIPE SOCKET
12 4858606 GASKET Ø10X14X1 MM
13 99435380 FLAT ENGINE GASKET Ø50 MM
14 4859434 CONNECTOR SLEEVE [from 301481]
15 98415295 WATER PIPE
16 61318850 FLAT ENGINE GASKET
17 17094914 WASHER 8x16
18 16992311 LOCK PLUG M14X1,5
19 4858608 SEAL GASKET dia.14x19,5x1,5
20 11343821 HEXAGON BOLT M10X1,25X50 MM
21 4858609 WASHER Ø16X22 MM SP=1,5 MM
22 16992411 THREADED PLUG M16X1,5
23 98461203 O-RING
24 17095104 WASHER Ø10X21X2 MM
25 16994011 LOCK PLUG M24X1,5
26 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
27 8012899 WATER PIPE
28 8015164 SCREW CONNECTOR
