8210SRE10.00

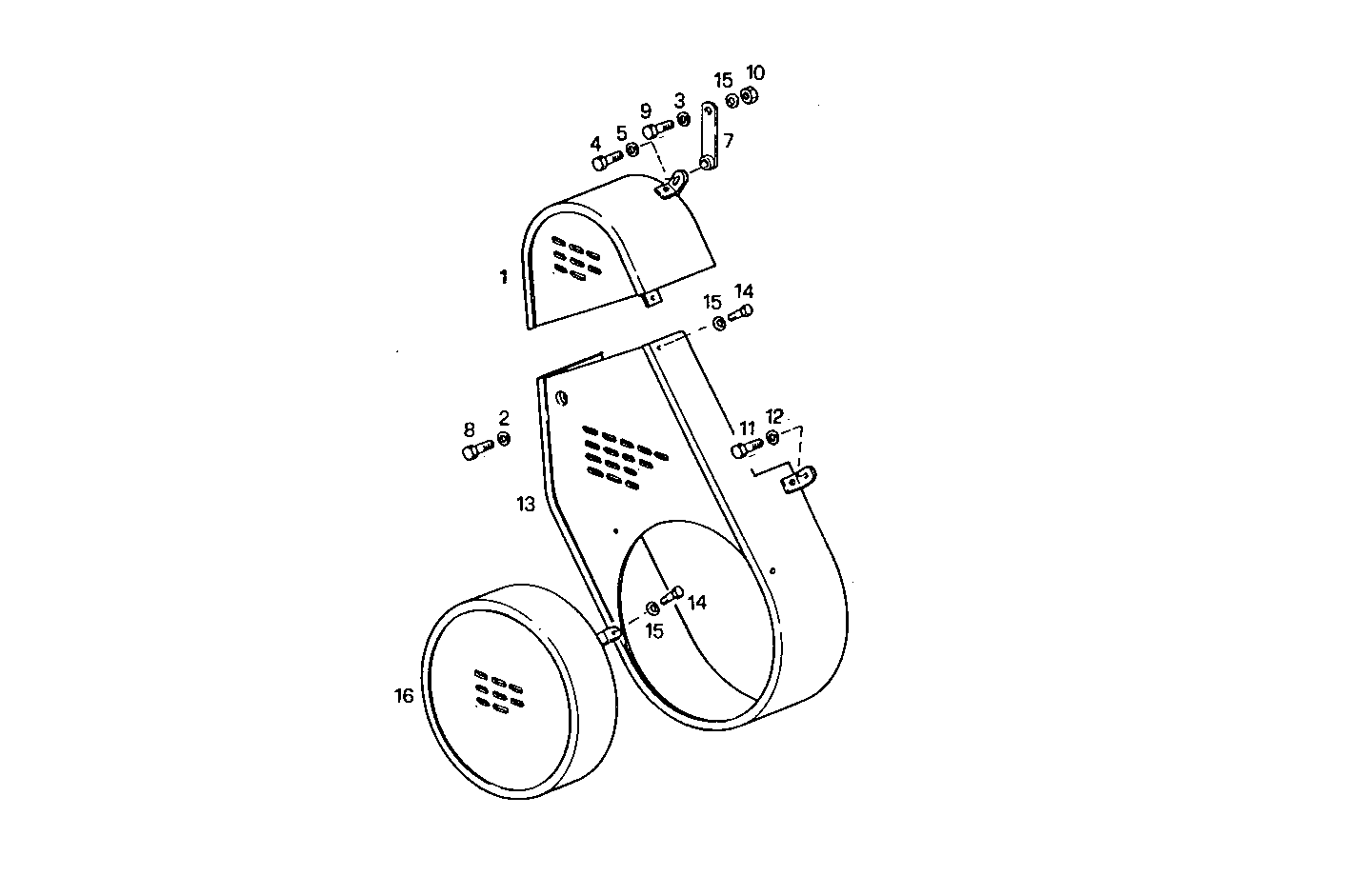

5770.035 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8029683 | PROTECTION |
| 2 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 3 | 12647001 | WASHER Ø8X25 MM |
| 4 | 16043321 | HEXAGON BOLT M8X18 MM |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 7 | 4700693 | RETAINER [up to 12-94] |
| 8 | 15970521 | HEXAGON BOLT M10X20 MM |
| 9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 15540324 | SCREW M12X1,25X25 |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 8020632 | PROTECTION |
| 14 | 16043124 | SCREW M8X14 MM |
| 16 | 8020634 | PROTECTION |
