8210SRE10.00

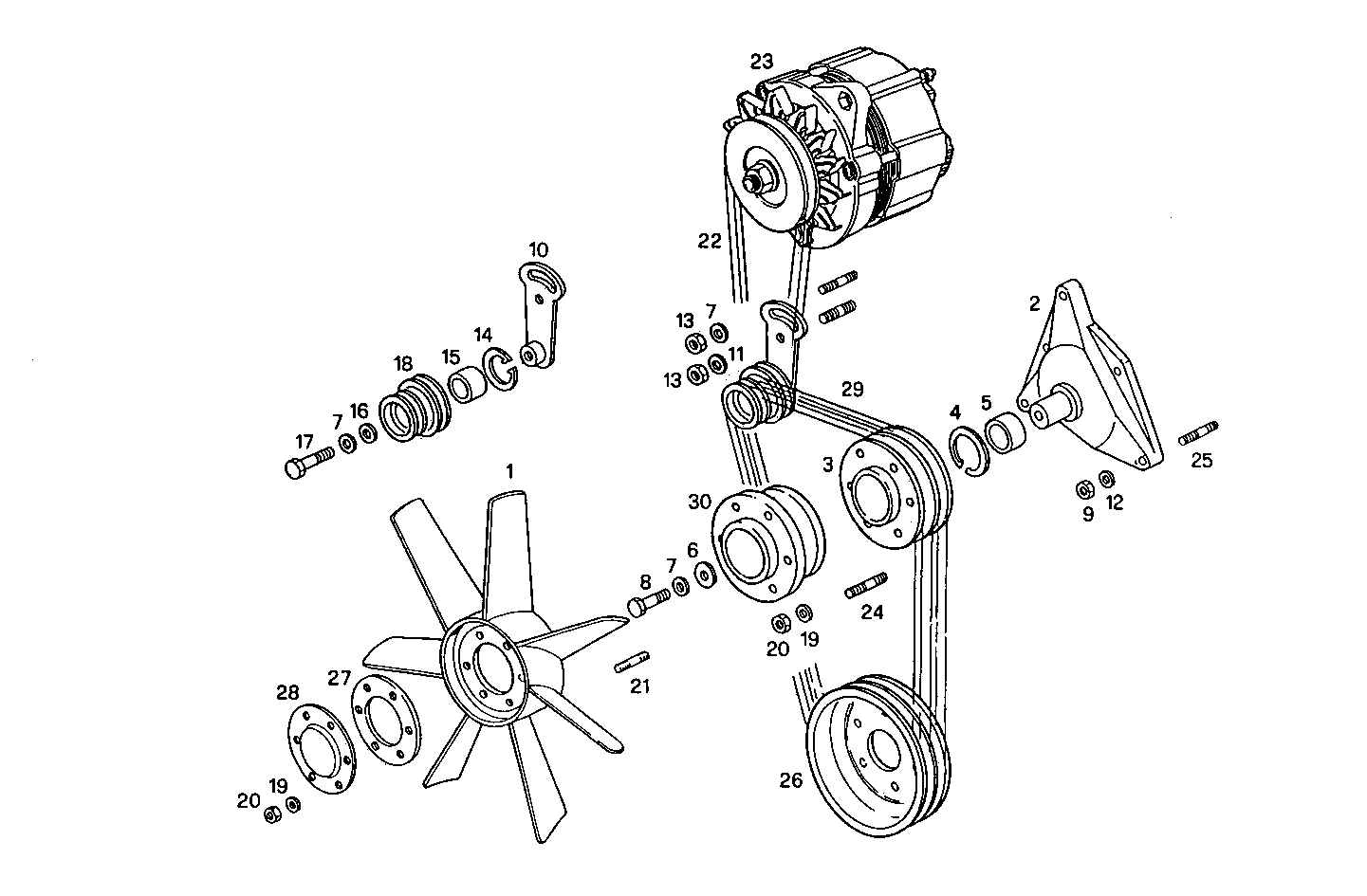

A08010050 PUSHER FAN - high position

Iveco/FPT PUSHER FAN

Item Part number Description
1 8021733 FAN Ø700 MM
2 98484127 SUPPORT
3 98435381 PULLEY
4 16874776 CIRCLIP Ø85,5 MM [from 10-92]
5 98427607 ENGINE BEARINGS
6 98427590 WASHER
7 17091074 WASHER Ø12X24X2,8 MM
8 15541421 HEXAGON BOLT M12X1,25X80 MM
9 17038221 HEXAGON NUT M10
10 98480739 BELT TENSIONER
11 12646921 WASHER Ø12X28 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 17038621 NUT M12
14 15540521 SCREW M12X1,25X35
18 98428704 PULLEY
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 17037931 HEXAGON NUT M8X1,25
21 16729224 STUD M8X16 MM
22 500385852 ALTERNATOR BELT
23 8019559 ALTERNATOR ASSY
24 16729324 STUD M8X12X20 MM
25 13543721 STUD M8X16X35 MM
26 8027991 PULLEY
27 4933279 RING
28 8021969 PROTECTION
29 4854694 SET OF V-BELTS KIT
30 8018279 SPACING BAR
