8210SRE10.00

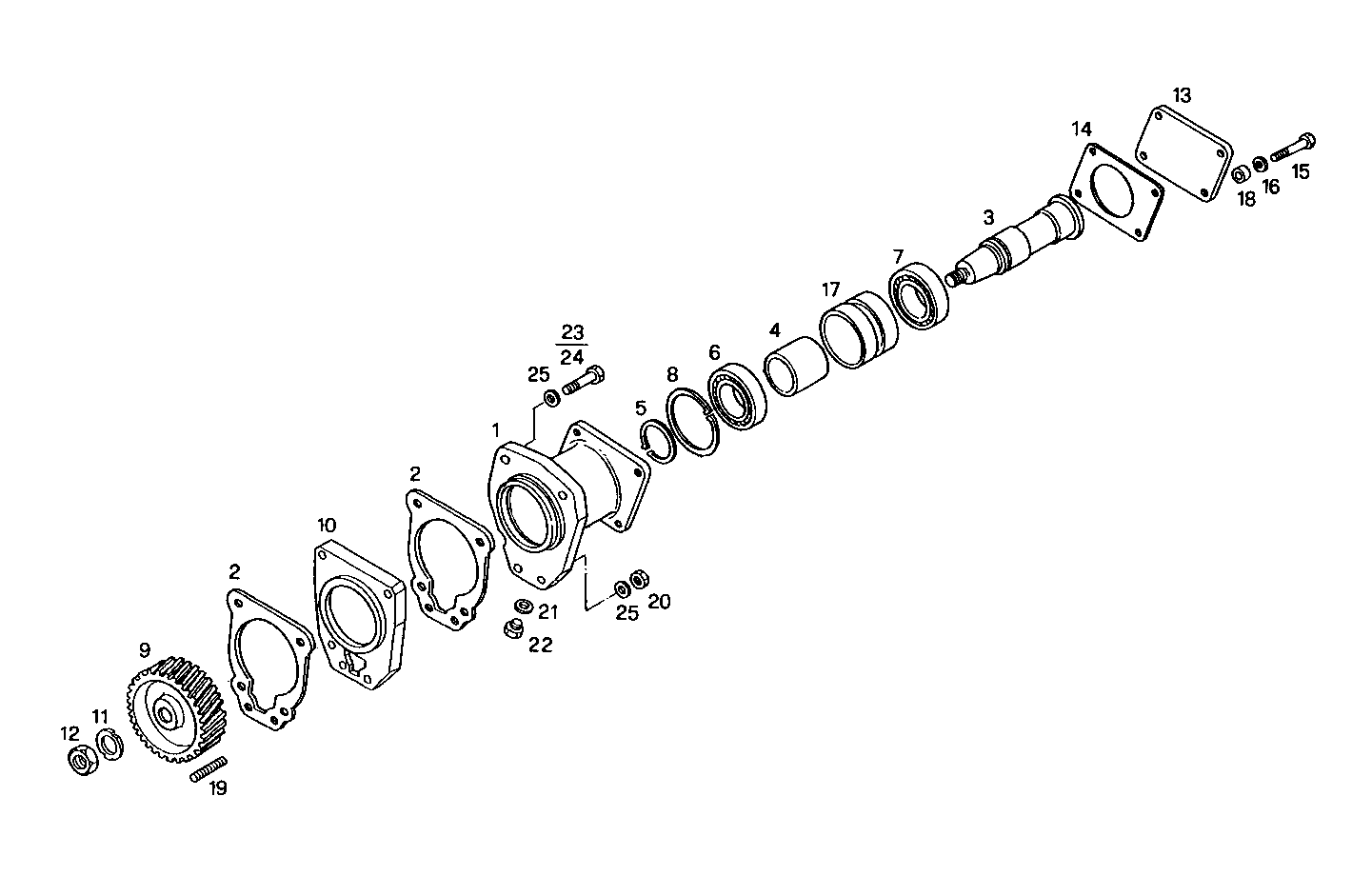

A09100007 ARRANGED FOR HYDRAULIC PUMP - left front

Iveco/FPT ARRANGED FOR HYDRAULIC PUMP

Item Part number Description
1 8022648 SUPPORT
2 4864032 FLAT ENGINE GASKET
3 8108862 SHAFT
4 61586410 SPACING BAR
5 16867176 CIRCLIP Ø35X1,5 MM
6 26798470 DRIVE BEARING
7 20705250 DRIVE BEARING
8 16874476 CIRCLIP Ø72,5X2,5 MM
9 98424645 COMP. DRIVE GEAR [up to 457050]
10 8022650 FLANGE
11 4709364 LOCKING PLATE
12 99471892 HEXAGON NUT
13 8108924 COVER
14 8009914 GASKET
15 16605924 SCREW M8X40 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 61586411 SPACING BAR
18 17816214 SPACER Ø10X8,5X18 MM
19 13547024 STUD M10X20X55
20 17038221 HEXAGON NUT M10
21 4858606 GASKET Ø10X14X1 MM
22 11903111 LOCK PLUG M10X1,25
23 11288021 HEXAGON BOLT M10X1,25X60 MM
24 11234721 HEXAGON BOLT M10X1,25X45 MM
25 17090174 SPRING WASHER Ø10X20 MM
