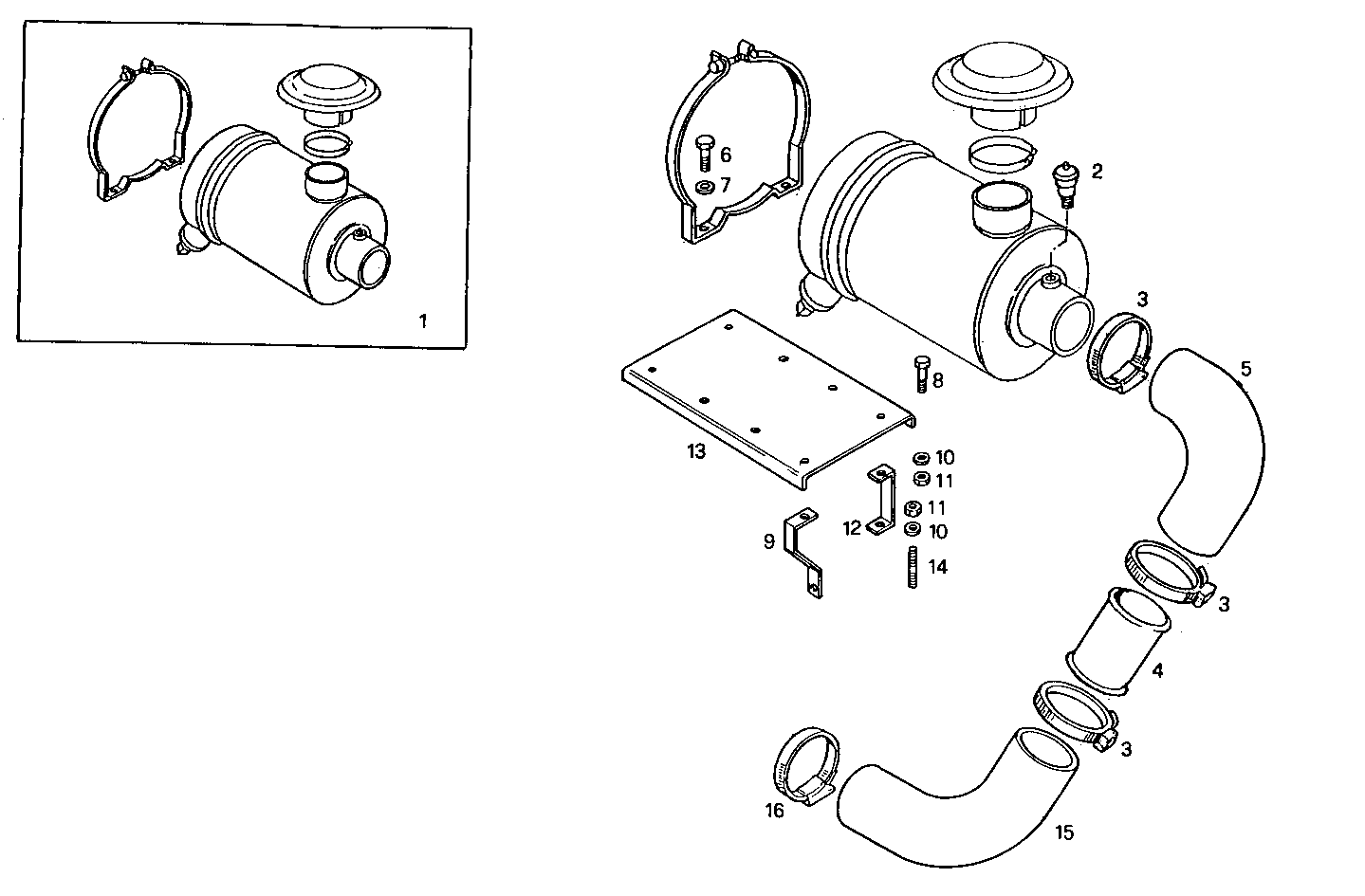

A21210076 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016915 AIR CLEANER ASSY
2 8027294 CHOCKED FILTER INDIC. MECHANICAL
3 17766091 CLIP Ø160/180 MM
4 8113940 AIR PIPE/DUCT
5 8113938 FILTER HOSE
6 15540324 SCREW M12X1,25X25
7 17091374 SPRING WASHER Ø12X30X3,0 MM
8 15004021 HEXAGON BOLT M10X1,25X25 MM
9 8114110 RETAINER
10 17090174 SPRING WASHER Ø10X20 MM
11 17038221 HEXAGON NUT M10
12 8028450 RETAINER
13 8016983 SUPPORT
14 13449321 STUD M10X1,25X15X20 MM
15 8113939 FILTER HOSE
16 17765791 CLIP DIA 130/150 [up to 10-93]
