8210SRE10.00

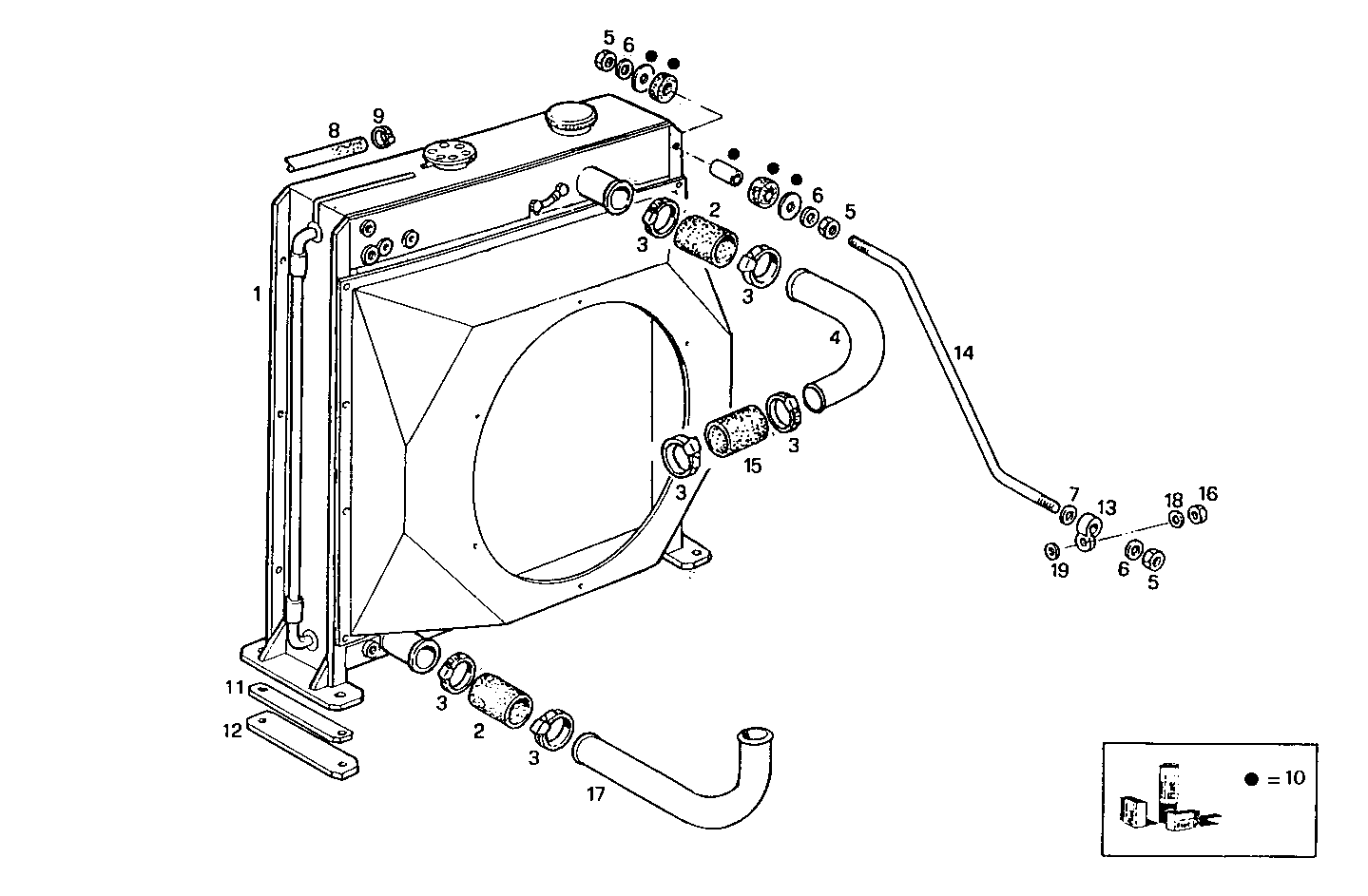

A22400003 RADIATOR FOR SETTING TILL MAX POWER - loose
| Item | Part number | Description |
|---|---|---|
| 1 | 8021898 | WATER RADIATOR ASSY |
| 2 | 17745887 | RUBBER SLEEVE WATER |
| 3 | 4830091 | CLIP |
| 4 | 8028123 | WATER PIPE |
| 5 | 17038421 | HEXAGON NUT M12 (8) |
| 6 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 7 | 17095304 | WASHER Ø12X24 MM |
| 8 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 9 | 18087991 | CLIP Ø8/16 MM |
| 10 | 8090977 | KIT-RADIATOR A.S. COMPLETE |
| 11 | 8010041 | SPACING BAR SP=7 MM |
| 12 | 8019415 | SPACING BAR |
| 13 | 8028743 | RETAINER |
| 14 | 8010577 | TIE ROD RIGHT |
| 15 | 8110652 | RUBBER SLEEVE |
| 16 | 17038821 | HEXAGON NUT M14 |
| 17 | 8028122 | WATER PIPE |
| 18 | 17091674 | WASHER Ø14X27X3,0 MM |
| 19 | 17095504 | WASHER Ø14X28 MM |
