8210SRE21.00

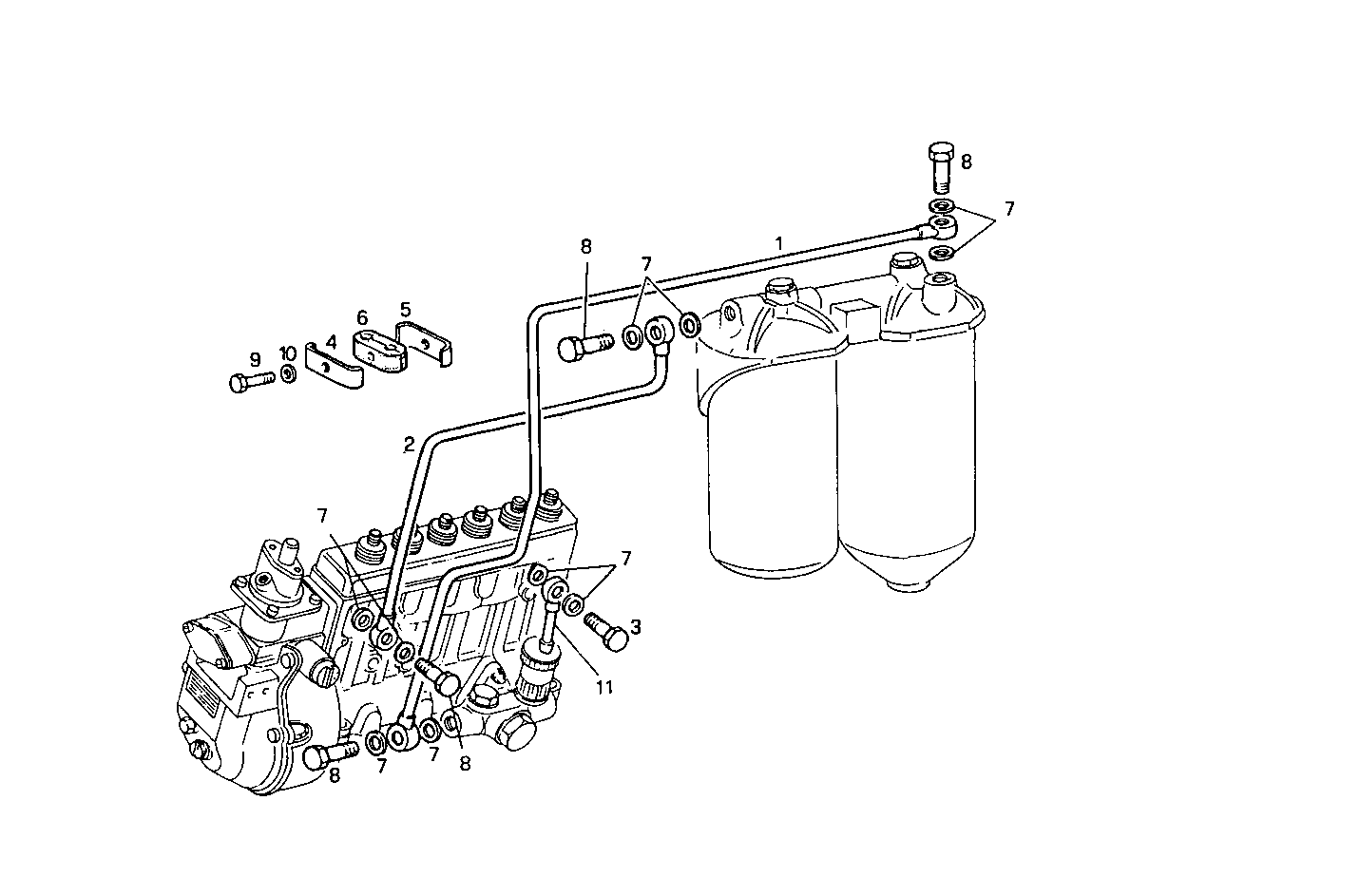

2030.167 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8013010 | FUEL LINE |
| 2 | 8013011 | FUEL LINE |
| 3 | 61608319 | SCREW CONNECTOR |
| 4 | 4644288 | CLIP |
| 5 | 4644289 | CLIP |
| 6 | 4871771 | RUBBER LUG |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 4834083 | SCREW CONNECTOR |
| 9 | 16603824 | SCREW M6X25 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 8014010 | PIPE SOCKET |
