8210SRE21.00

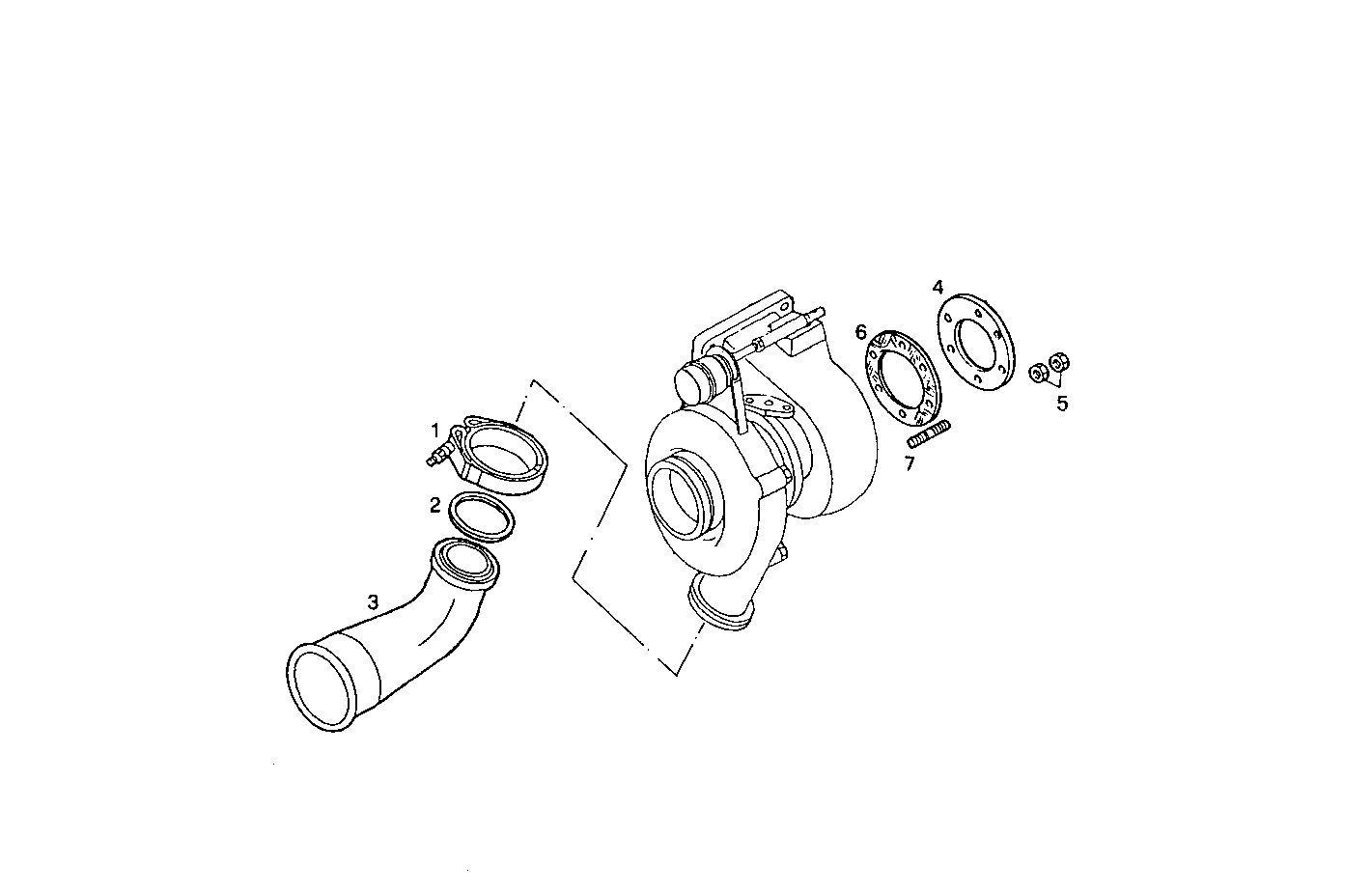

2420.161 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4800661 | CLIP Ø 75 mm. |
| 2 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 3 | 61318365 | AIR PIPE/DUCT |
| 4 | 8113463 | FLANGE |
| 5 | 8100961 | NUT M10X1,25 |
| 6 | 42075987 | GASKET |
| 7 | 500314985 | STUD M10X1,25 - M10X1,5 |
