8210SRE21.00

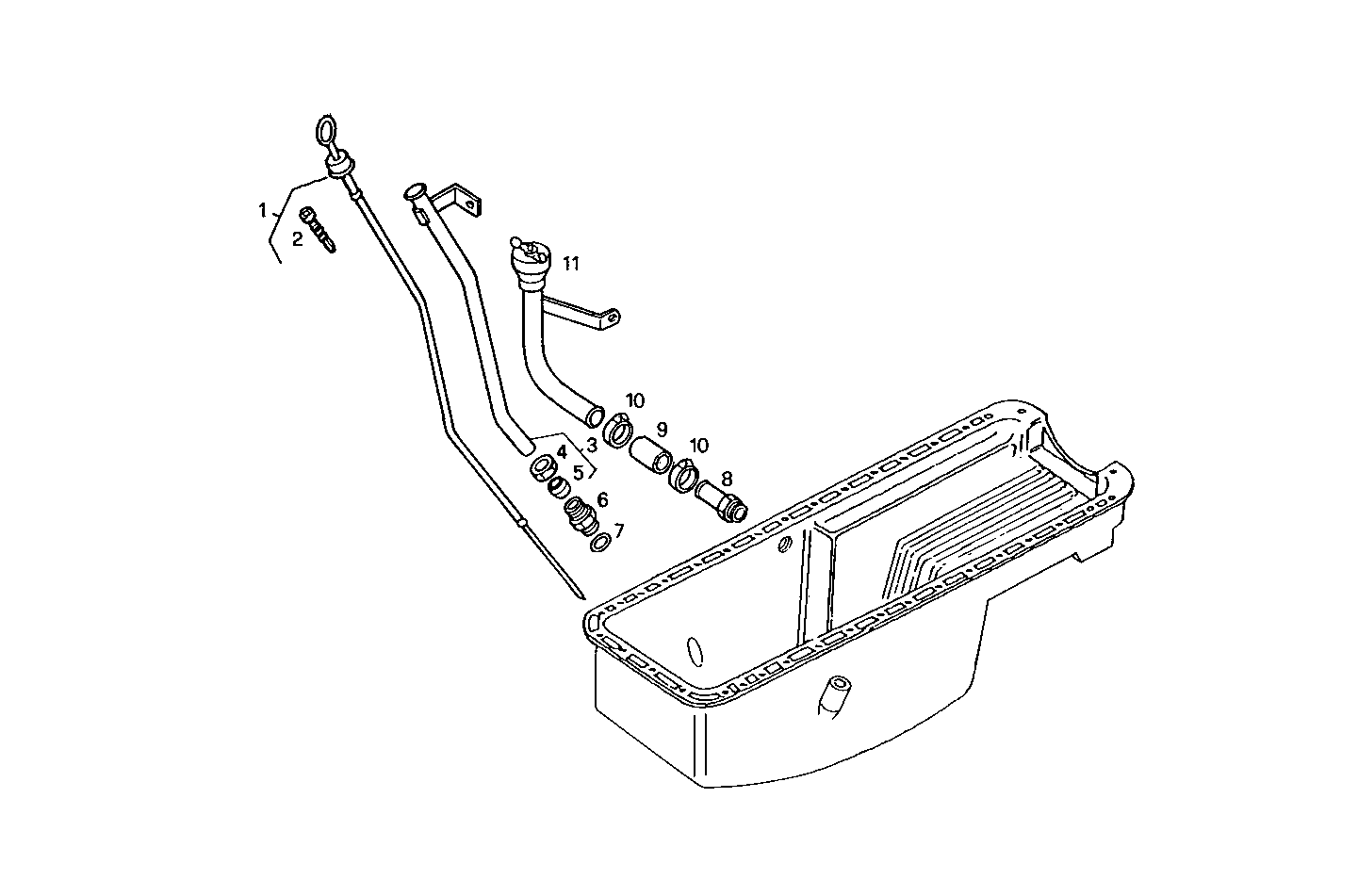

A01050021/02 OIL SUMP - max longitudinal inclination 45°
| Item | Part number | Description |
|---|---|---|
| 1 | 8025967 | OIL DIPSTICK |
| 2 | 98417751 | RUBBER GASKET |
| 3 | 8025968 | OIL LEVEL TUBE |
| 4 | 4641221 | RING |
| 5 | 4641220 | NUT |
| 6 | 98427177 | THREADED UNION |
| 7 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 8 | 61319270 | THREADED UNION |
| 9 | 8110497 | CONNECTOR SLEEVE |
| 10 | 17764791 | CLIP Ø32/50 MM |
| 11 | 8025970 | OIL FILLER PIPE |
