8210SRE21.00

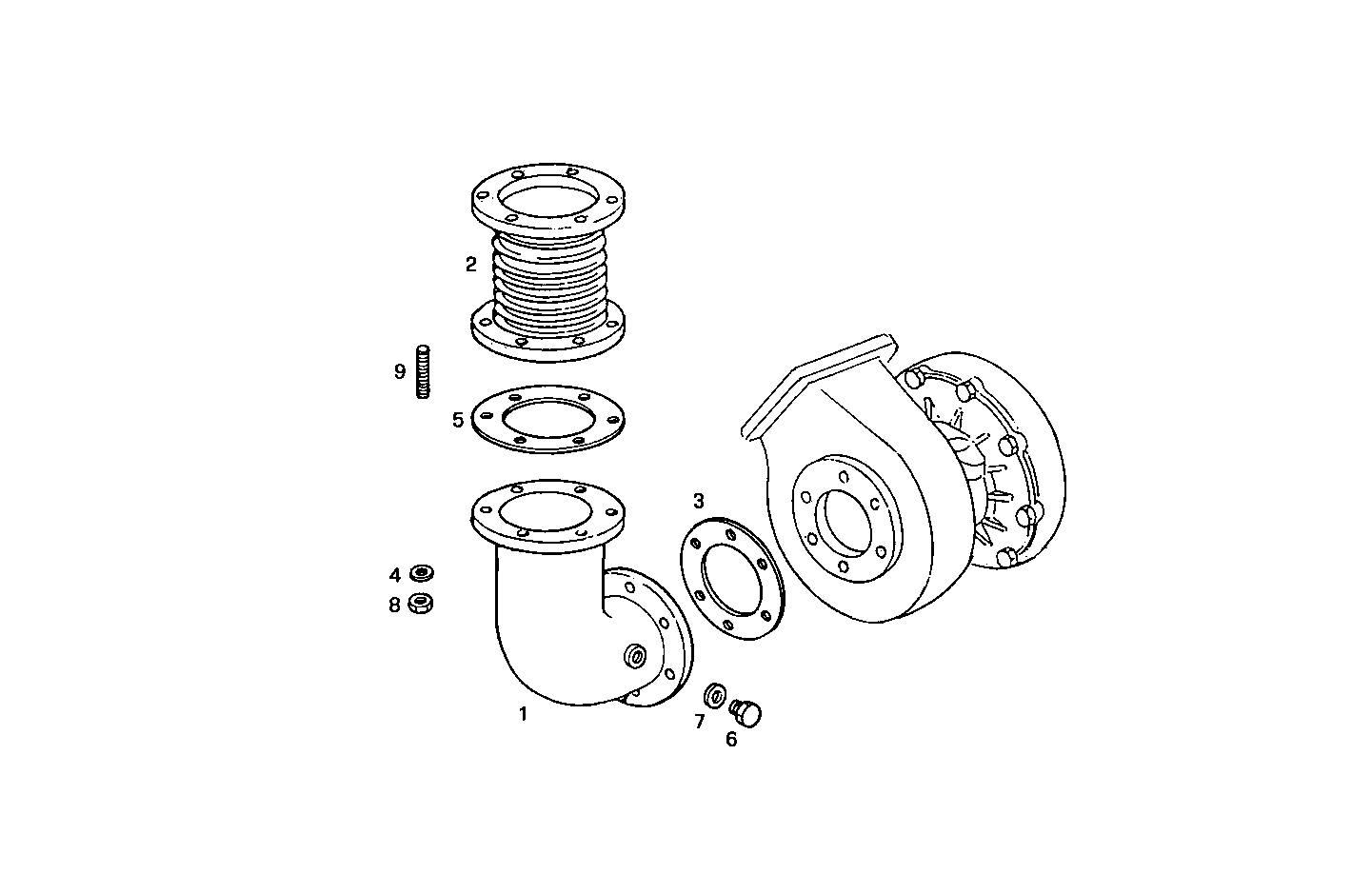

A40010019 TURNING EXHAUST ELBOW WITH BELLOWS
| Item | Part number | Description |
|---|---|---|
| 1 | 8018463 | EXHAUST ELBOW |
| 2 | 8101671 | EXHAUST BELLOWS |
| 3 | 42075987 | GASKET |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 8009600 | GASKET |
| 6 | 16992211 | THREADED PLUG M12X1,5 |
| 7 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 13449524 | STUD M10X1,25X15X25 |
