8210SRi10.00

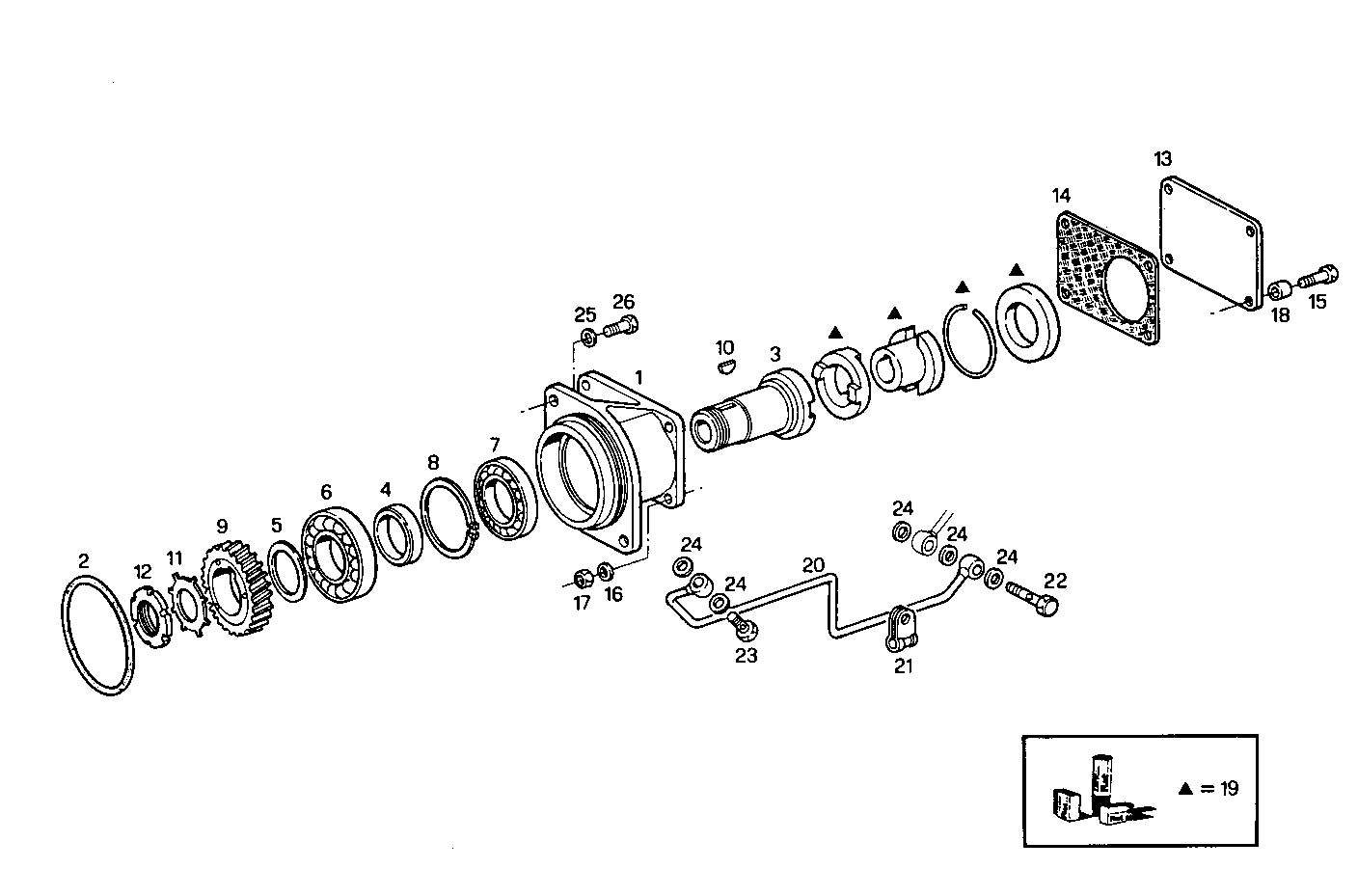

A09080011 ARRANGED FOR HYDRAULIC PUMP - right front
| Item | Part number | Description |
|---|---|---|
| 1 | 8112253 | SUPPORT |
| 2 | 61317171 | O-RING |
| 3 | 8112240 | SHAFT |
| 4 | 8112244 | SPACING BAR |
| 5 | 8112245 | SPACING BAR |
| 6 | 8863034 | DRIVE BEARING |
| 7 | 8863111 | DRIVE BEARING |
| 8 | 11061376 | CIRCLIP Ø72,5 MM |
| 9 | 4636971 | GEAR |
| 10 | 10205920 | KEY Ø9 MM |
| 11 | 4513025 | LOCKING PLATE |
| 12 | 10214110 | GROOVED NUT |
| 13 | 61585907 | COVER |
| 14 | 4863974 | FLAT ENGINE GASKET |
| 15 | 14306721 | CYLIND-HEAD SCREW M8X40 |
| 16 | 11193879 | SPRING WASHER Ø8X16 MM |
| 17 | 17037931 | HEXAGON NUT M8X1,25 |
| 18 | 13605811 | SPACER SP=1,5 MM |
| 19 | 8090978 | KIT-HYDRAULIC PUMP |
| 20 | 8012822 | OIL LINE |
| 21 | 4656139 | FASTENING BRACKET |
| 22 | 4735292 | THREADED UNION |
| 23 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 24 | 4858606 | GASKET Ø10X14X1 MM |
| 25 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 26 | 15970621 | SCREW M10X1,25X22 |
