8210SRi10.00

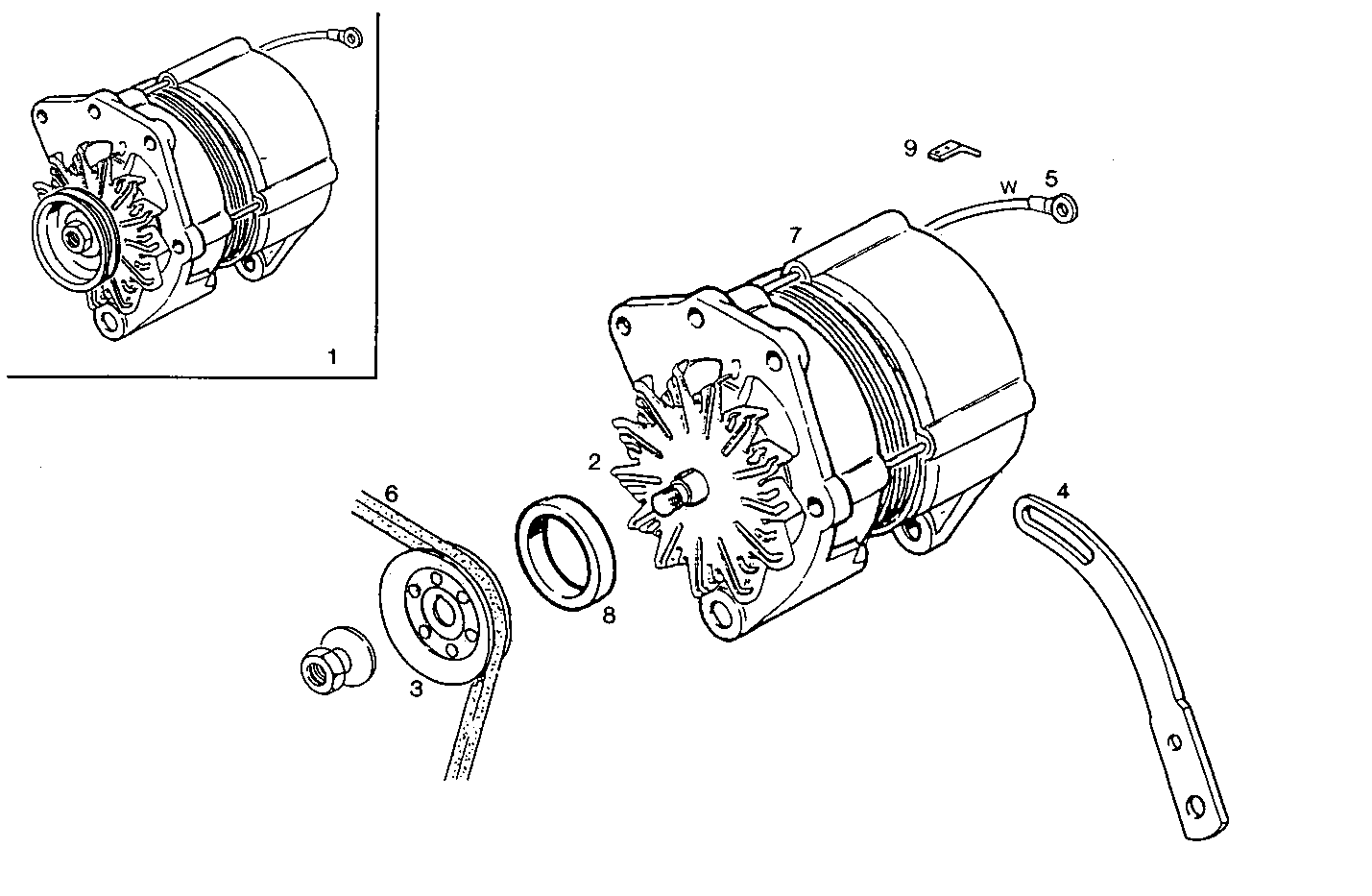

A14120029 SELF-REGULATED ALTERNATOR - 24V 55A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8019558 | ALTERNATOR ASSY |
| 2 | 4757196 | GENERATOR FAN BOSCH |
| 3 | 4808604 | PULLEY |
| 4 | 8114037 | BELT TENSIONER |
| 5 | 8019531 | WIRE/CABLE W |
| 6 | 4819721 | V-BELT |
| 7 | 98424450 | ALTERNATOR ASSY BOSCH |
| 8 | 98454596 | SPACING BAR BOSCH |
| 9 | 12277944 | CONNECTION D+ |
