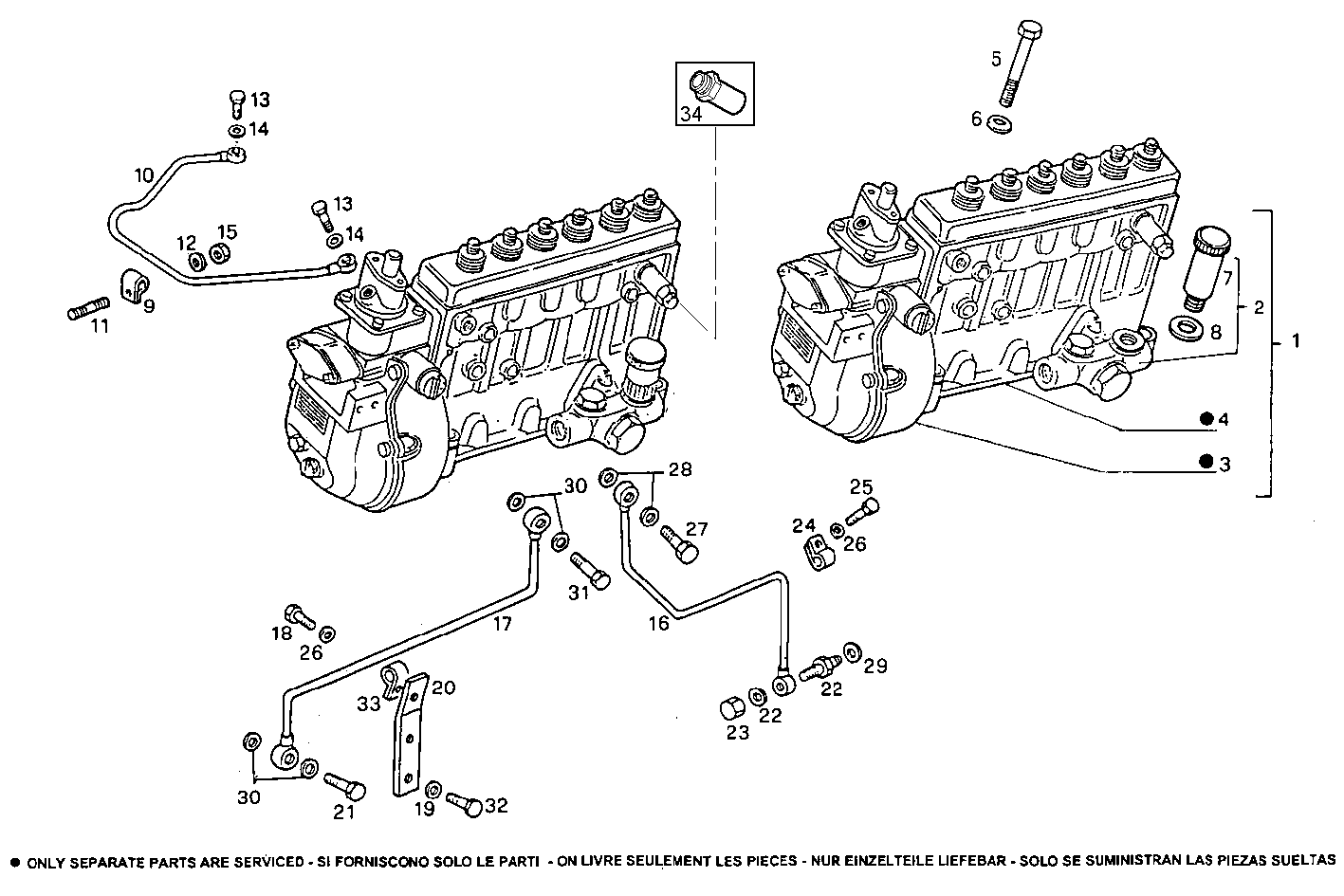

| Item |
Part number |
Description |
|
1 |
8019633 |
INLINE INJECT.PUMP ASSY |
|
2 |
8017832 |
FUEL PUMP ASSY |
|
5 |
15971621 |
HEXAGON BOLT M10X1,25X90 MM |
|
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
7 |
8011481 |
HAND PUMP |
|
8 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
9 |
17316390 |
CLIP |
|
10 |
8012902 |
AIR PIPE/DUCT |
|
11 |
16746624 |
STUD M8X20 MM (8.8) |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
14 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
15 |
17037931 |
HEXAGON NUT M8X1,25 |
|
16 |
98443555 |
PIPE |
|
17 |
98474954 |
PIPE |
|
18 |
16043021 |
HEXAGON BOLT M8X12 MM |
|
20 |
4645737 |
FASTENING BRACKET |
|
21 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
22 |
4621393 |
THREADED UNION |
|
23 |
11902111 |
PLUG |
|
24 |
17316190 |
PIPE CLIP Ø6 MM |
|
25 |
16043124 |
SCREW M8X14 MM |
|
27 |
705736 |
SCREW CONNECTOR |
|
28 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
29 |
4837613 |
GASKET [up to ...] |
|
30 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
31 |
98479387 |
SCREW CONNECTOR [from 301968] |
|
32 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
33 |
17316490 |
CLIP |
|
34 |
93190258 |
INJECTOR |
