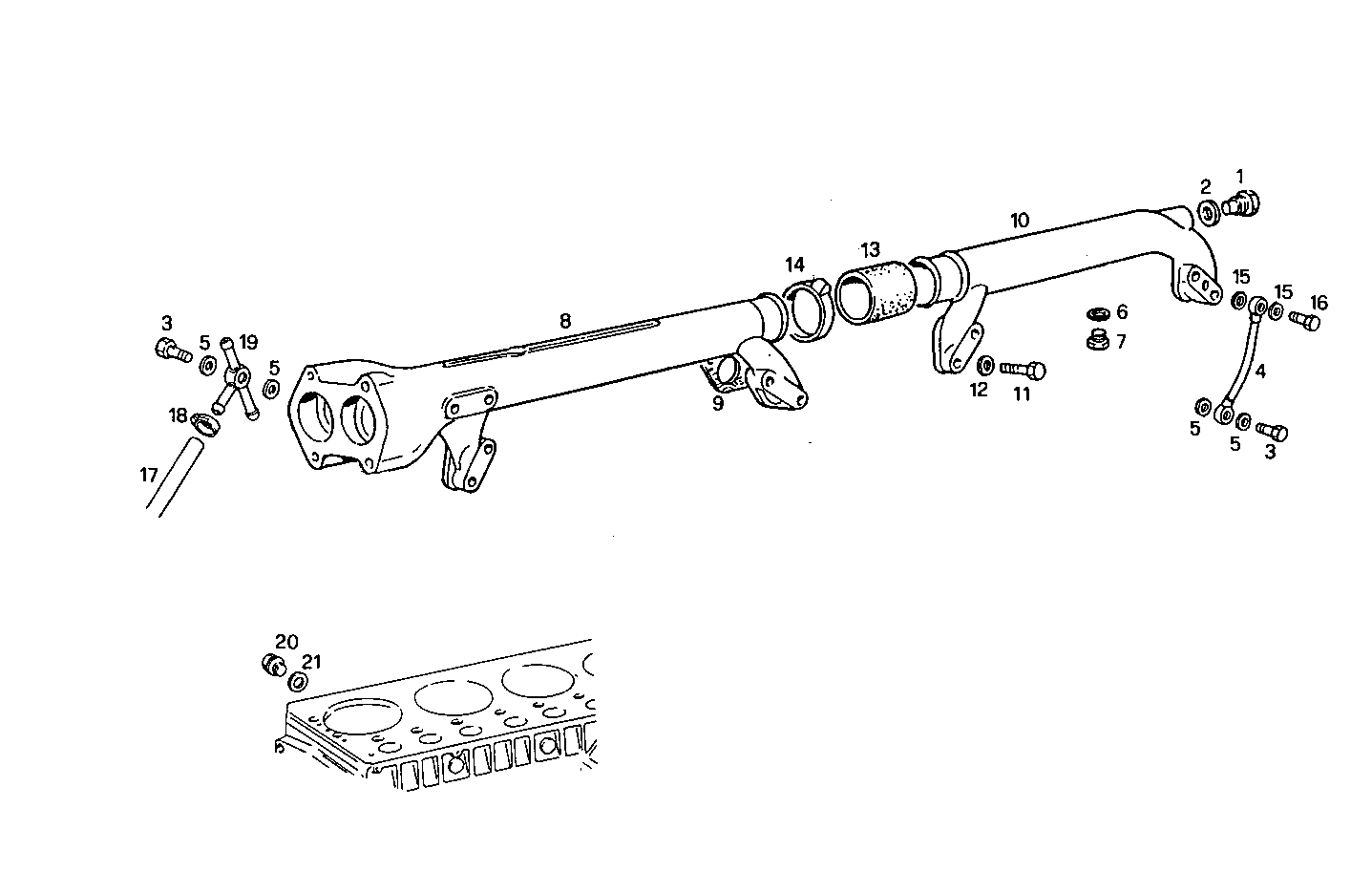

| Item |
Part number |
Description |
|
1 |
4871068 |
PLUG ASSY |
|
2 |
10260360 |
SEAL GASKET Ø24,3 MM |
|
3 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
4 |
8012899 |
WATER PIPE |
|
5 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
6 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
7 |
10304911 |
THREADED PLUG M20X1,5 |
|
8 |
98427299 |
WATER MANIFOLD |
|
9 |
4852097 |
FLAT ENGINE GASKET |
|
10 |
8113491 |
WATER PIPE |
|
11 |
15888734 |
HEXAGON BOLT M10X1,25X55 MM |
|
12 |
17095114 |
WASHER Ø10X21 MM |
|
13 |
98421377 |
RUBBER SLEEVE Ø51 MM |
|
14 |
17764992 |
CLIP Ø50-70 MM |
|
15 |
4858606 |
GASKET Ø10X14X1 MM |
|
16 |
8015164 |
SCREW CONNECTOR |
|
17 |
19066487 |
WATER HOSE L = 0,130 mm. |
|
18 |
17764292 |
HOSE CLIP Ø10/16 MM |
|
19 |
8012903 |
PIPE SOCKET |
|
20 |
10300911 |
PLUG M8 |
|
21 |
4858605 |
WASHER Ø8X12 MM |
