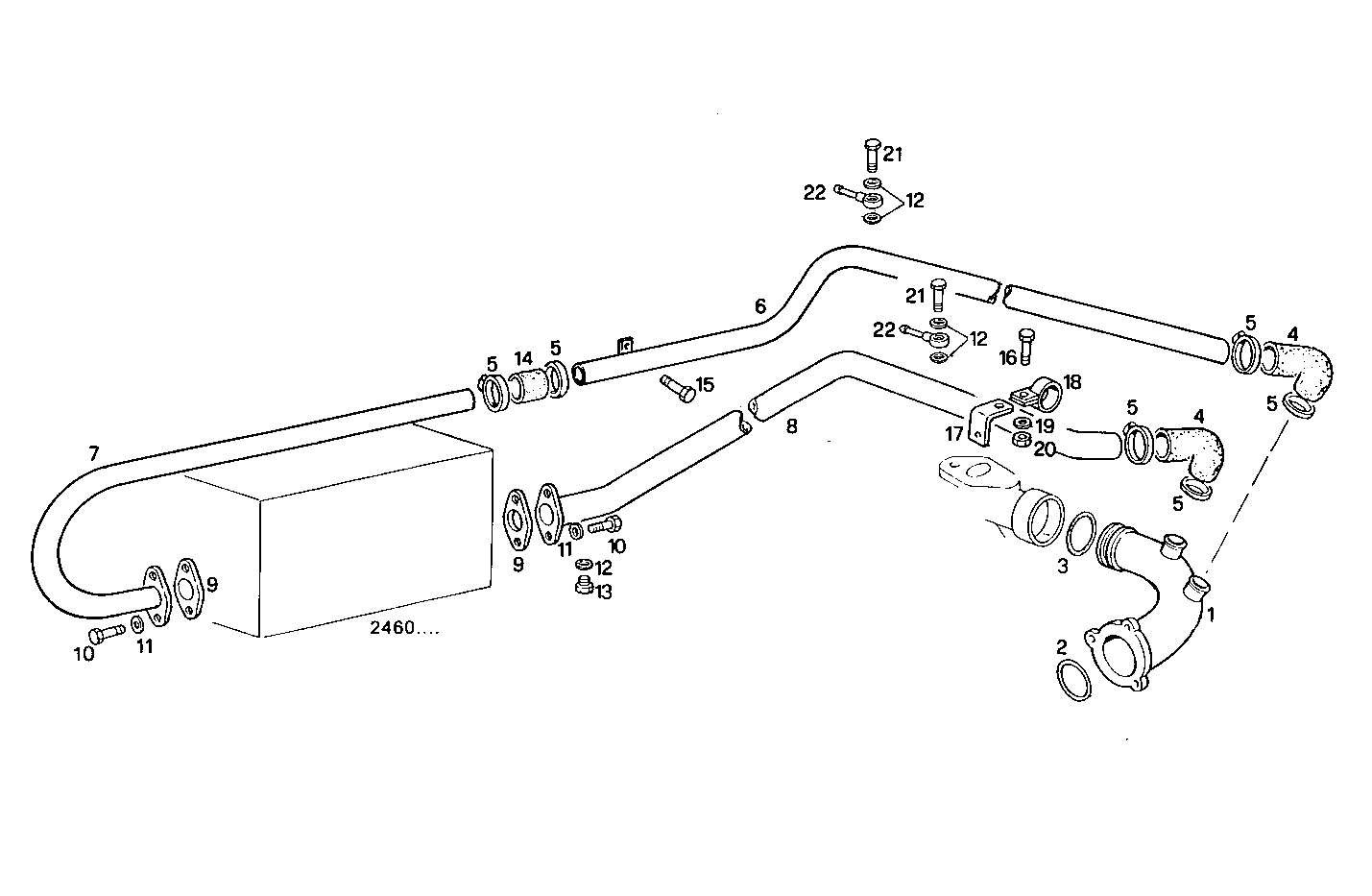

| Item |
Part number |
Description |
|
1 |
8110718 |
WATER PIPE |
|
2 |
17280181 |
O-RING Ø53,70X1,78 MM |
|
3 |
17296181 |
O-RING Ø59,69X5,33 MM |
|
4 |
4644083 |
WATER HOSE |
|
5 |
17764891 |
CLIP Ø40/60 MM |
|
6 |
8008245 |
WATER PIPE |
|
7 |
8107267 |
WATER PIPE |
|
8 |
8012134 |
WATER PIPE |
|
9 |
8103540 |
GASKET |
|
10 |
16609824 |
HEXAGON BOLT M12X1,75X25 MM |
|
11 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
12 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
13 |
16992211 |
THREADED PLUG M12X1,5 |
|
14 |
4787631 |
WATER HOSE |
|
15 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
16 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
17 |
8107409 |
RETAINER |
|
18 |
4936741 |
CLIP |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
22 |
98405514 |
PIPE SOCKET |
