8210SRi12.01

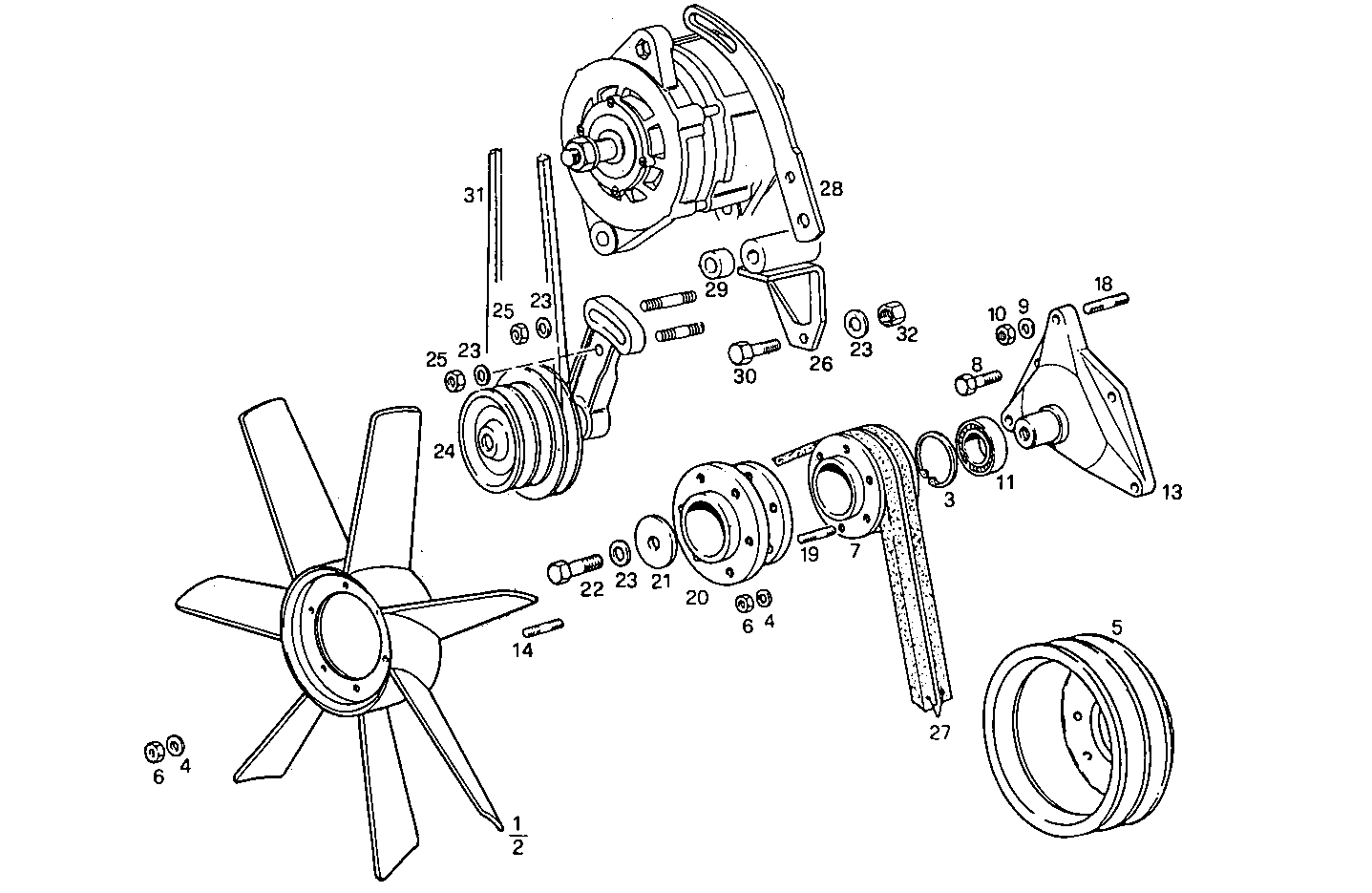

A08010036 PUSHER FAN - high position

Iveco/FPT PUSHER FAN

Item Part number Description
1 8021733 FAN Ø700 MM
3 16874776 CIRCLIP Ø85,5 MM [from 10-92]
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 4651309 WATER PUMP PULLEY
6 17037931 HEXAGON NUT M8X1,25
7 98464098 PULLEY [from 10-92]
8 15972421 HEXAGON BOLT M10X1,25X130 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 17038221 HEXAGON NUT M10
11 98427607 ENGINE BEARINGS
13 98464097 SUPPORT [from 10-92]
14 16729224 STUD M8X16 MM
18 13453721 STUD M10X25X30
19 16729324 STUD M8X12X20 MM
20 8006900 SPACING BAR
21 4801143 WASHER
22 15540521 SCREW M12X1,25X35
23 17091074 WASHER Ø12X24X2,8 MM
24 98485209 BELT TENSIONER ASSY
25 17038621 NUT M12
26 8006911 SUPPORT
27 4854694 SET OF V-BELTS KIT
28 8007183 BELT TENSIONER
29 8114378 SPACING BAR
30 16610724 SCREW M12X1,75X70 MM
31 4814275 ALTERNATOR BELT
32 17038421 HEXAGON NUT M12 (8)
