8210SRi12.01

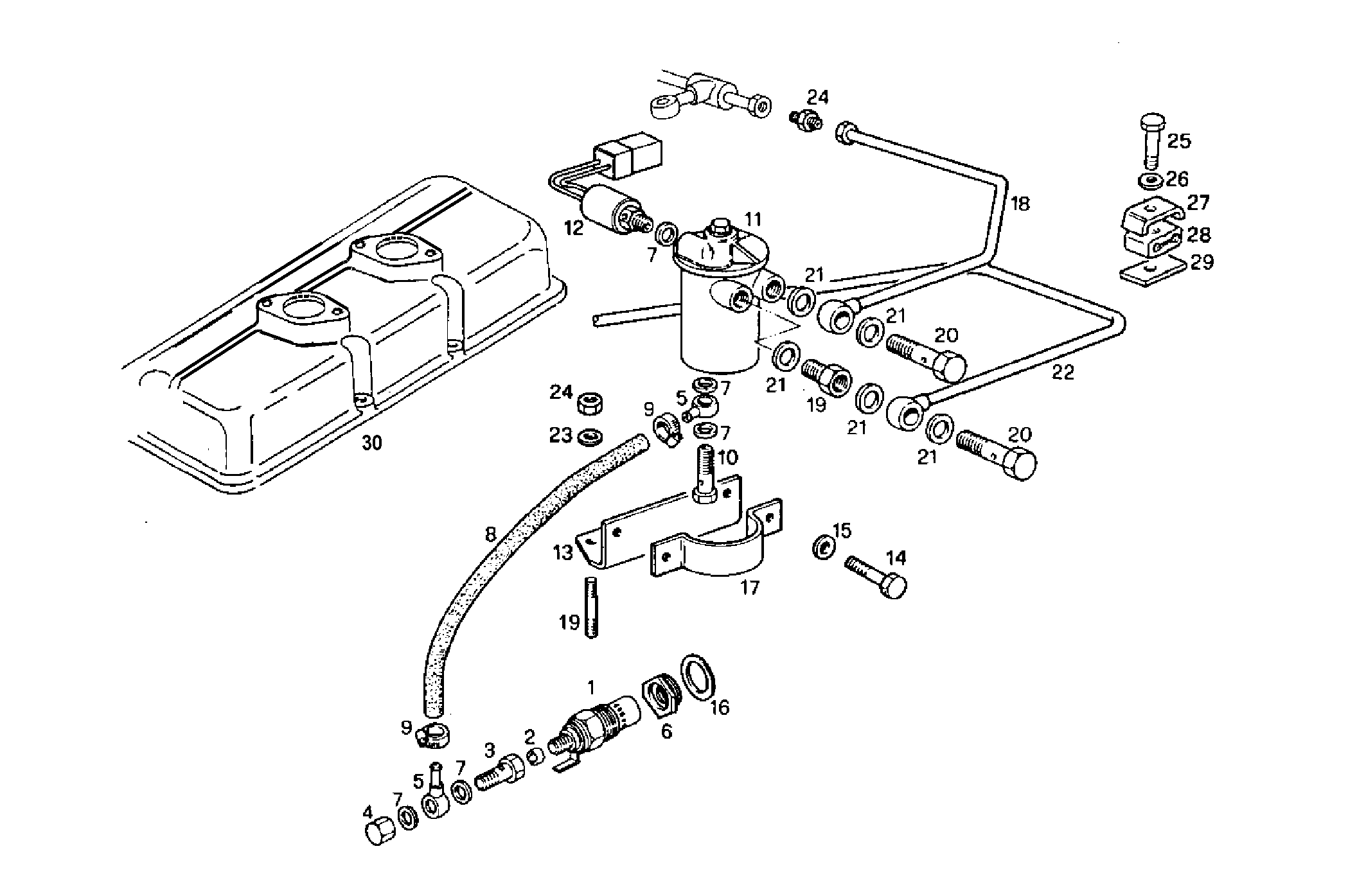

A20010027 THERMOSTARTER - 24V

Iveco/FPT THERMOSTARTER

Item Part number Description
1 4221168 THERMO-STARTER 24V
2 4557649 WASHER
3 4551101 SCREW CONNECTOR
4 11902017 LOCK PLUG M8
5 4647661 SWIVEL COUPLING
6 8013159 PIPE SOCKET
7 98474303 WASHER Ø8X14 MM SP=2,3 MM
8 19018087 HOSE
9 18087991 CLIP Ø8/16 MM
10 4864078 BANJO BOLT M8X1,25
11 4815431 TANK FOR PREHEATER
12 98414208 ELECT.V.VE.PREHEAT
13 8013181 RETAINER
14 16603724 HEXAGON BOLT M6X20 MM (8.8)
15 17088474 WASHER Ø6X12 MM
16 10265060 SEAL GASKET Ø32X38 MM SP=1,5 MM
17 61586091 FASTENING BRACKET
18 8013182 FUEL LINE
19 16729224 STUD M8X16 MM
20 4864082 BANJO BOLT M12X1,5X25 MM
21 98474306 WASHER Ø12X20 MM SP=1,9 MM
22 8013183 FUEL LINE
23 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
24 16501611 PIPE SOCKET M14X1,5
25 16602324 HEXAGON BOLT M5X25 MM
26 17094504 WASHER Ø5,3X10 MM
27 4659218 CLIP
28 4659217 DOWEL
29 4659219 PLATE
30 8018760 COVER
