8210SRi25.00A500

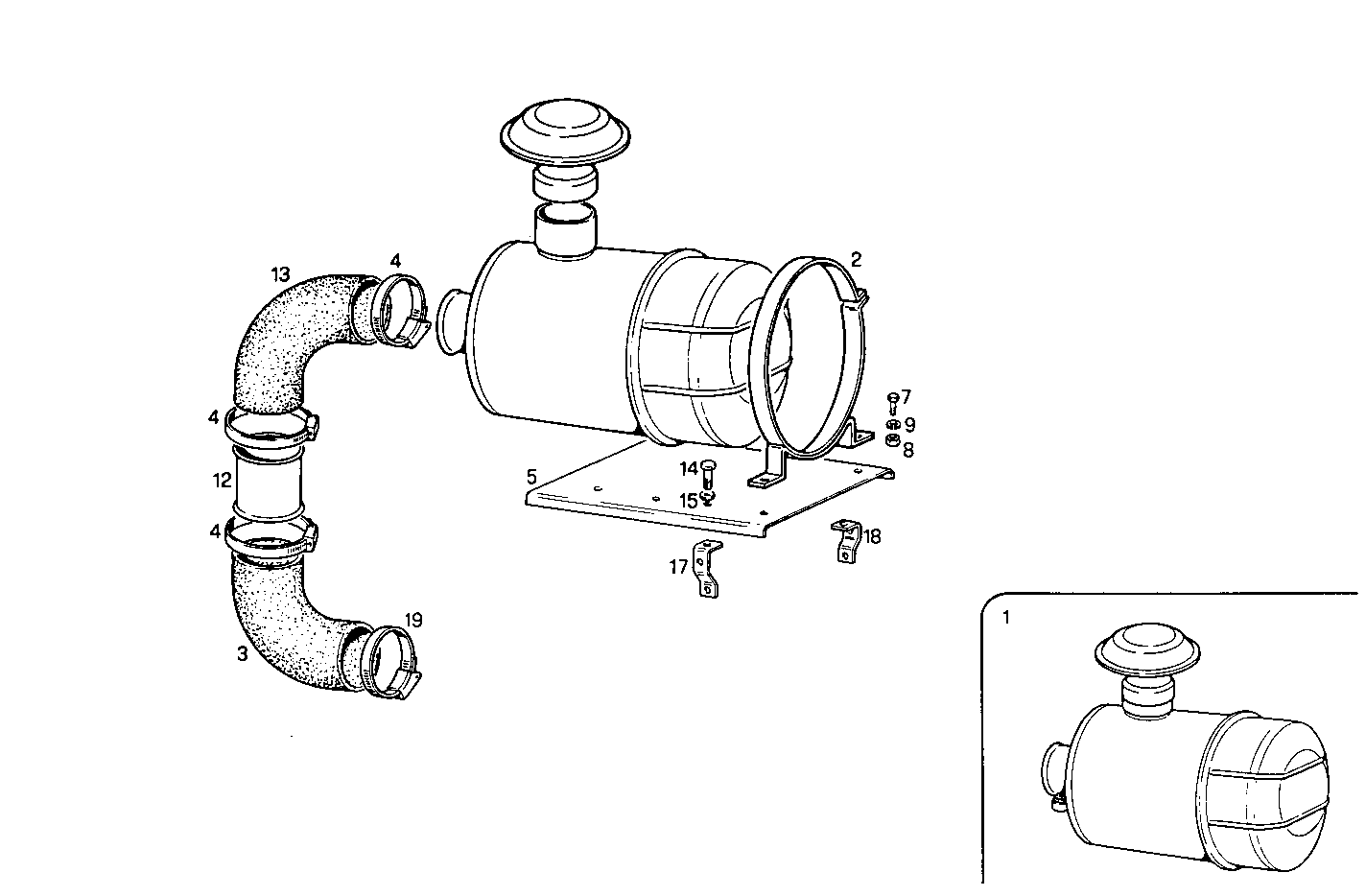

A21170018 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8107805 AIR CLEANER ASSY
2 8105666 RETAINER
3 8113939 FILTER HOSE
4 17766093 CLIP Ø160/180 MM
5 8005146 SUPPORT
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 12164711 HEXAGON NUT M10X1,25
9 11198479 SPRING WASHER Ø10X27 MM SP=2,8
12 8113940 AIR PIPE/DUCT
13 8113938 FILTER HOSE
14 15540321 HEXAGON BOLT M12X1,25X25 MM
15 11190879 SPRING WASHER Ø12X30X3,0 MM
17 8107870 RETAINER
18 8107871 RETAINER
19 17765793 CLIP Ø130/150 MM
