8210SRi25.01

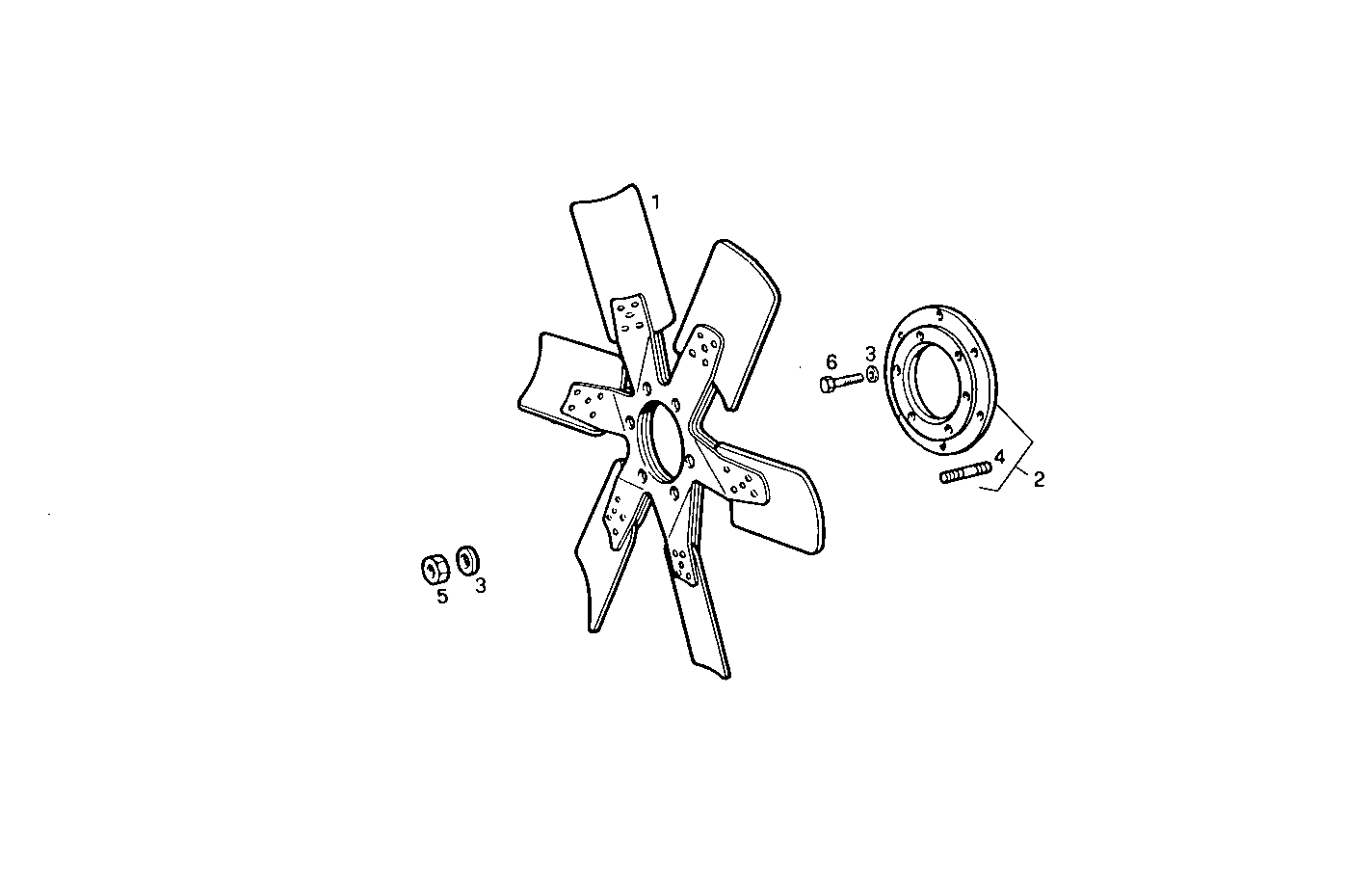

A08020013 OVERSIZE PUSHER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 8021733 | FAN Ø700 MM |
| 2 | 8101145 | SPACING BAR ASSY |
| 3 | 11198371 | SPRING WASHER Ø10X20 MM |
| 4 | 13543020 | STUD M8X16X14 |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 11307021 | HEXAGON BOLT M10X40 MM |
