8210SRi25.01

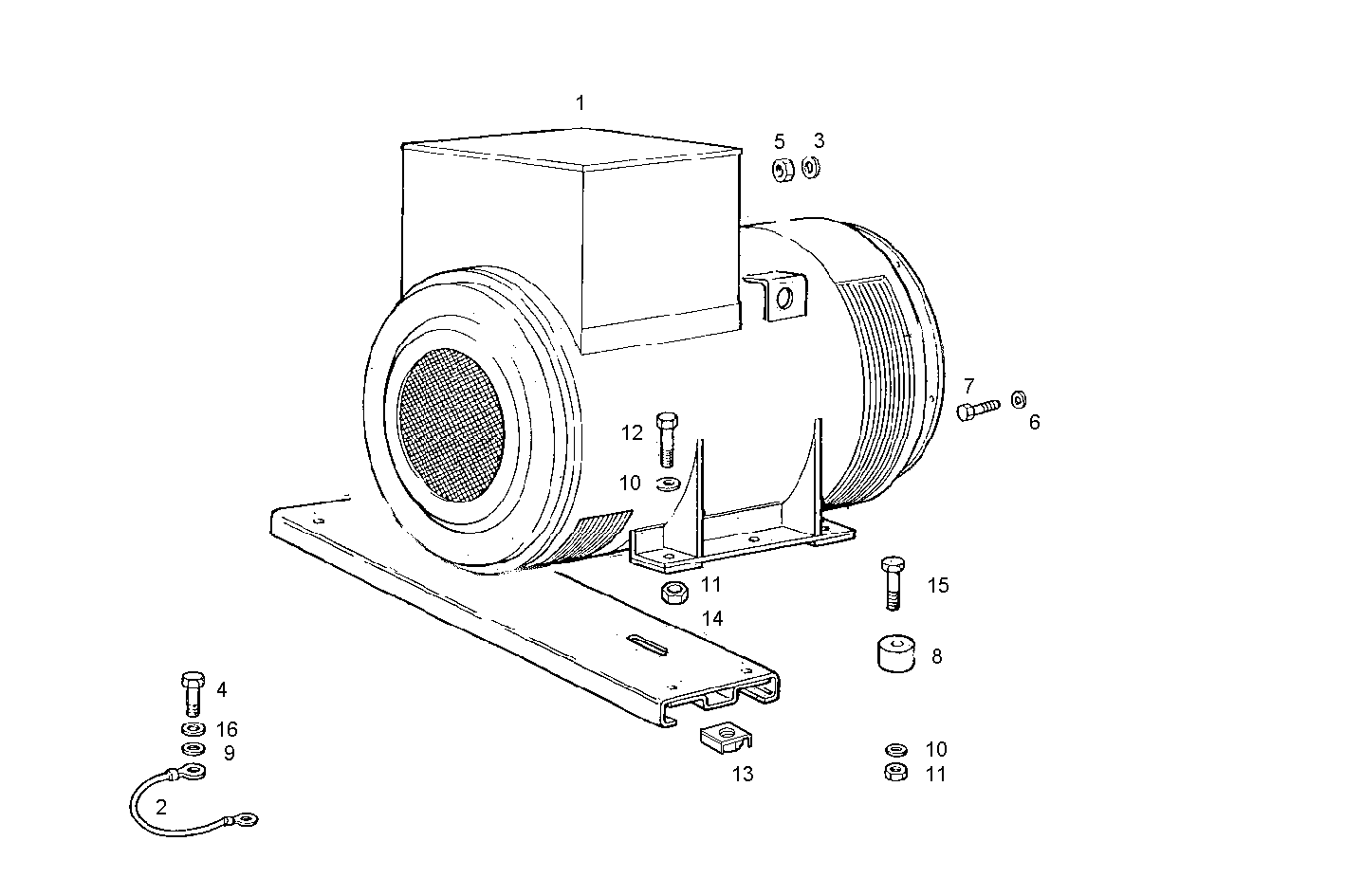

A37240003 ELECTRIC MACHINE - MARELLI

Iveco/FPT ELECTRIC MACHINE

Item Part number Description
1 503111526 ELECTRIC MACHINE MJB250LB4
1 8031848 ELECTRIC MACHINE M8B 250 LB4
2 8104707 WIRE/CABLE
3 17090174 SPRING WASHER Ø10X20 MM
4 16605524 HEXAGON BOLT M8X20 MM
5 17038221 HEXAGON NUT M10
6 17091174 SPRING WASHER Ø12X24 MM
7 15540434 HEXAGON BOLT M12X1,5
8 8016970 SPACING BAR
9 16665514 WASHER Ø8 MM
10 17092774 WASHER Ø20X38X4,6 MM
11 17039321 NUT M20X2,5
12 16617224 SCREW M20X50
13 8019231 PLATE
14 8019651 SUPPORT
15 16618524 HEXAGON BOLT
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
