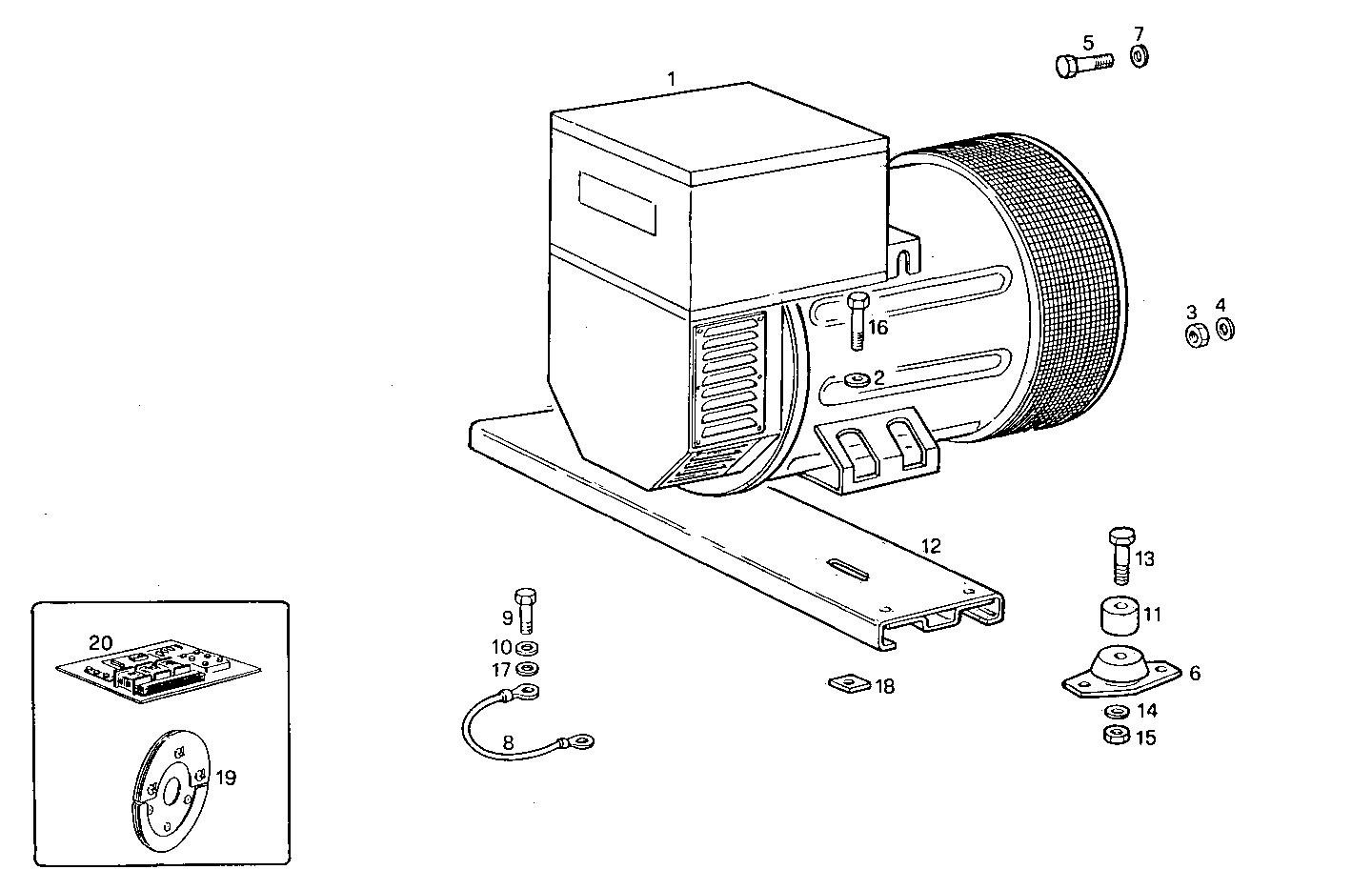

| Item |
Part number |
Description |
|
1 |
8028100 |
ELECTRIC MACHINE ECO 37 1L 50-60HZ |
|
2 |
17092774 |
WASHER �20X38X4,6 MM |
|
3 |
17038221 |
HEXAGON NUT M10 |
|
4 |
17090174 |
SPRING WASHER �10X20 MM |
|
5 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
6 |
4955094 |
RUBBER PAD |
|
7 |
17091074 |
WASHER �12X24X2,8 MM |
|
8 |
8104707 |
WIRE/CABLE |
|
9 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
10 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
11 |
8108891 |
SPACING BAR |
|
12 |
8019651 |
SUPPORT |
|
13 |
16620524 |
SCREW M24X120 |
|
14 |
17093174 |
WASHER �24X46X5,4 MM |
|
15 |
17039721 |
HEXAGON NUT M24 |
|
16 |
16617424 |
SCREW M20X60 |
|
17 |
16665504 |
WASHER �8 MM |
|
18 |
8019231 |
PLATE |
|
19 |
8093777 |
EL.MACH.DIODE BRIDGE MECC-ALTE |
|
20 |
8093778 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
