8210SRi25.01

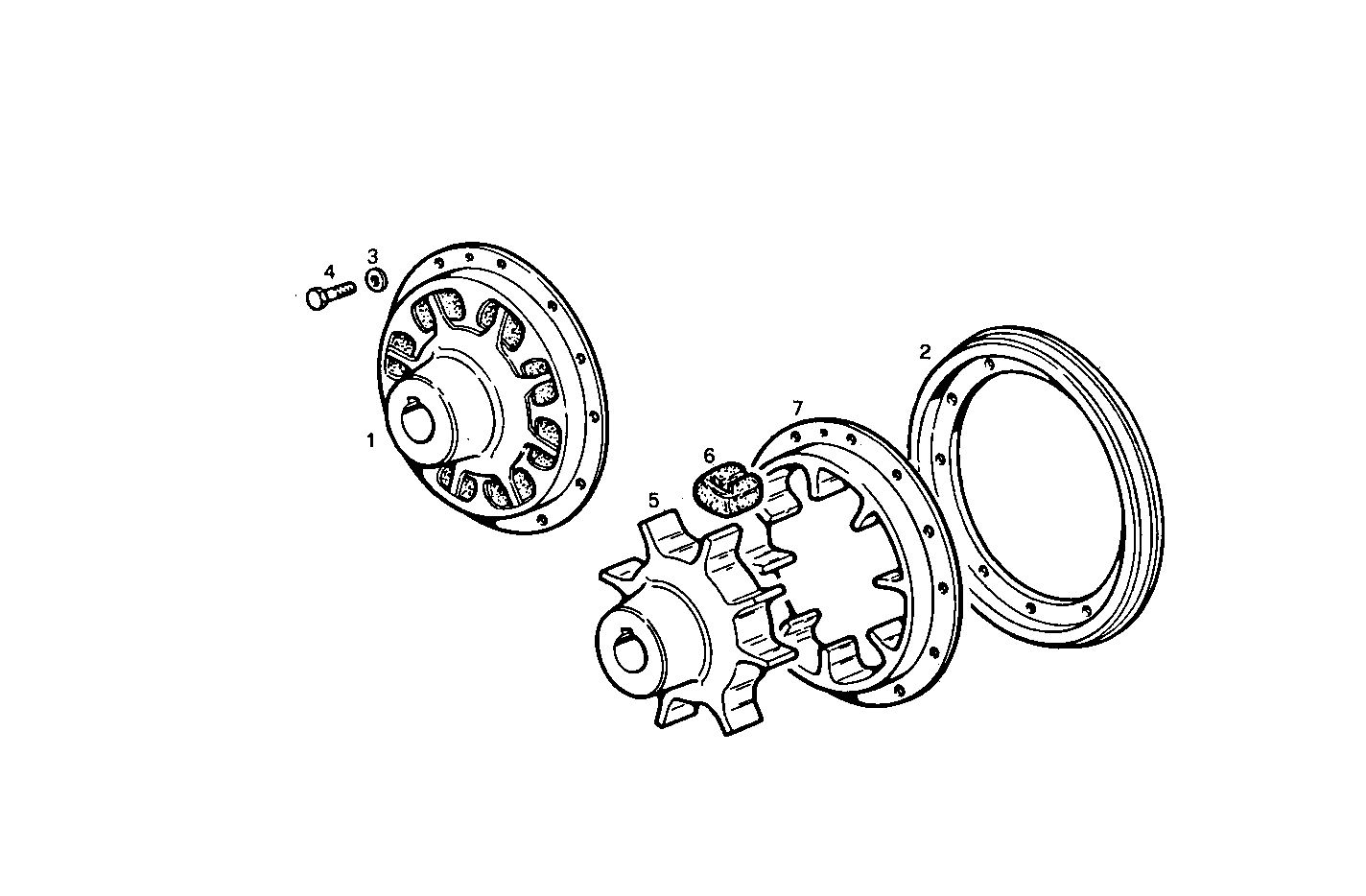

A44020010 ELASTIC COUPLING - for genset - loose

Iveco/FPT ELASTIC COUPLING

Item Part number Description
1 4930982 FLEXIBLE COUPLING ASSY
2 8104520 SUPPORT RING
3 11198679 SPRING WASHER Ø13 MM
4 15540921 HEXAGON BOLT M12X1,25X55 MM
5 4930909 FLEXPLATE
6 4930911 RUBBER PAD
7 4930912 FLEXPLATE
