8210SRi25.01

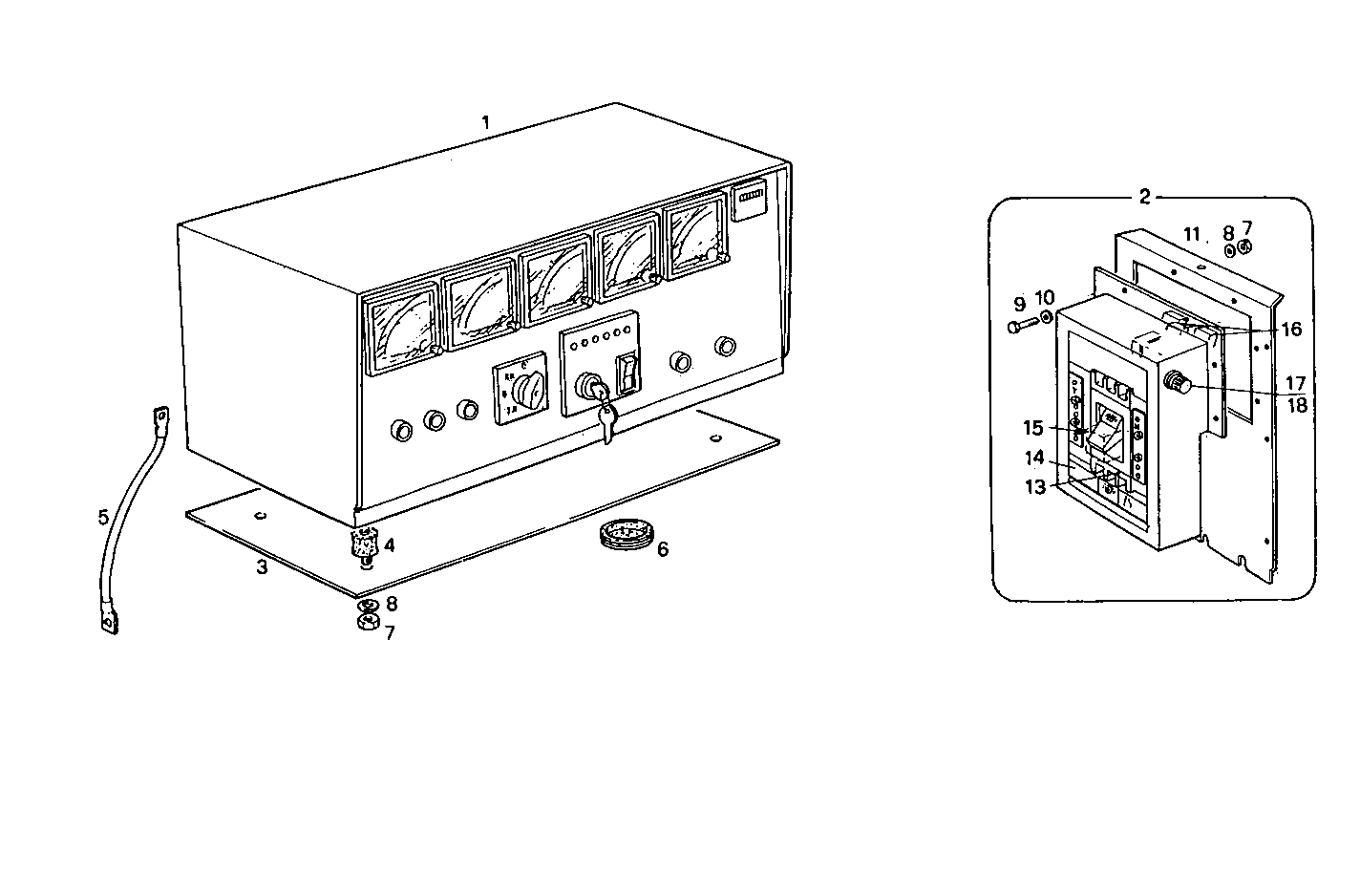

A60310022 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8022395 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 8020590 | SWITCH 400A |
| 3 | 8019259 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8110852 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 17088474 | WASHER �6X12 MM |
| 9 | 16603524 | SCREW M6X12 MM (8.8) |
| 10 | 17094714 | WASHER �6,4X12 MM |
| 11 | 8027609 | COVER |
| 13 | 8021332 | THERMOSWITCH |
| 14 | 8021327 | SWITCH |
| 15 | 8021328 | MINIMUN TENSION COIL |
| 16 | 8090288 | TRANSFORMATOR |
| 17 | 8105267 | FUSE BOX 2A |
| 18 | 8105216 | FUSE 10A |
