8210SRi25.01A550

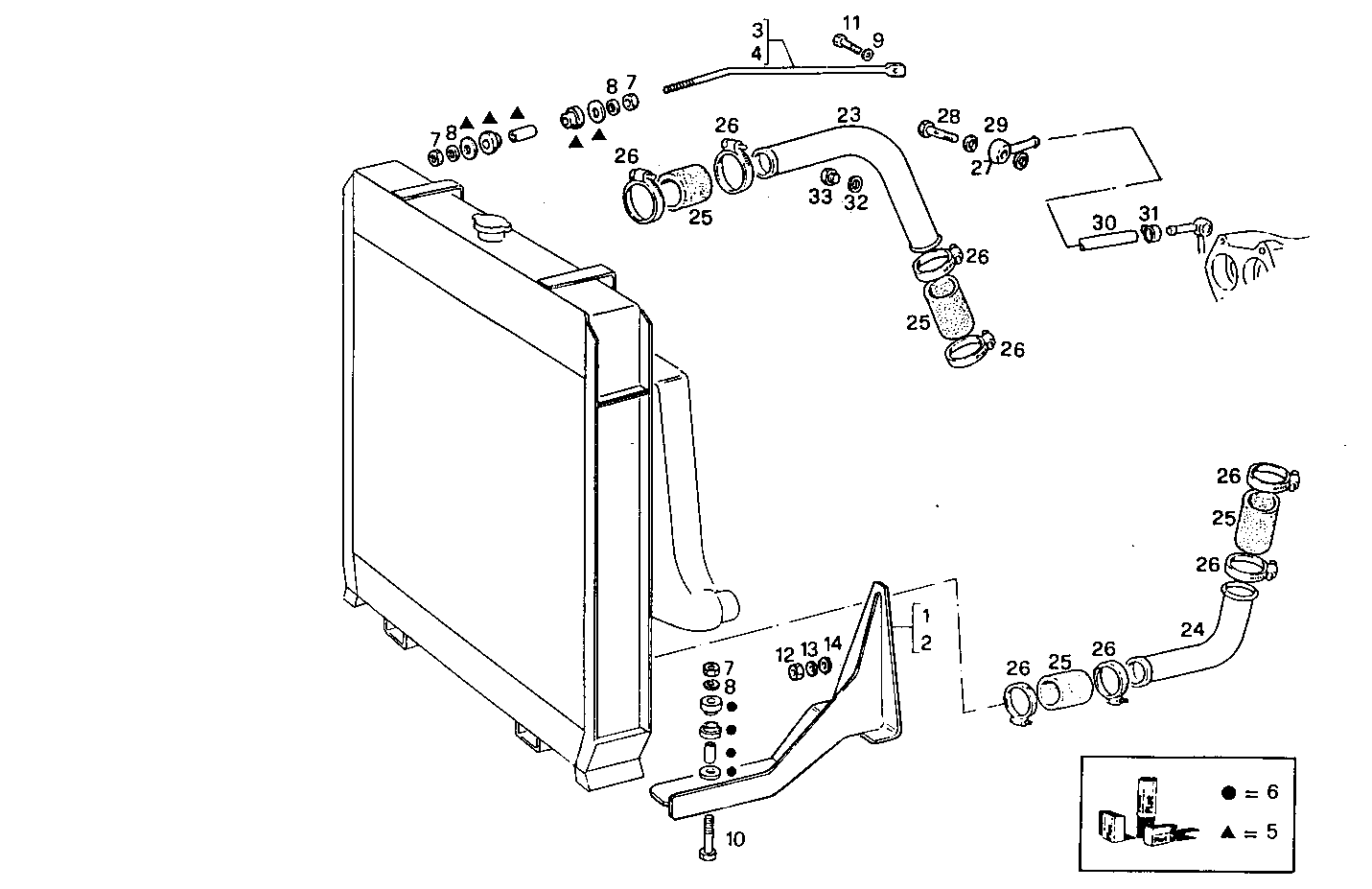

3300.003/02 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8107629 SUPPORT LEFT
2 8107628 SUPPORT RIGHT
3 8107626 TIE ROD RIGHT
4 8107627 TIE ROD LEFT
5 8090413 KIT-RADIATOR A.S. COMPLETE
6 8090977 KIT-RADIATOR A.S. COMPLETE
7 16101511 HEXAGON NUT M12X1,25
8 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
9 11198379 SPRING WASHER Ø10X20 MM SP=2,6
10 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
11 11343721 HEXAGON BOLT M10X65 MM
12 12164011 HEXAGON NUT M14X1,5 [up to…]
13 11194179 SPRING WASHER Ø15 MM
14 10738121 WASHER Ø14 MM
23 8109658 WATER PIPE
24 8107624 WATER PIPE
25 17745887 RUBBER SLEEVE WATER
26 12174890 CLIP Ø62-82 MM
27 4636689 SWIVEL COUPLING
28 4864082 BANJO BOLT M12X1,5X25 MM
29 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
30 19067387 HOSE L = 0,240 mm.
31 12179490 CLIP Ø9-16 MM
32 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
33 10300711 LOCK PLUG M16
