8210SRi26.00

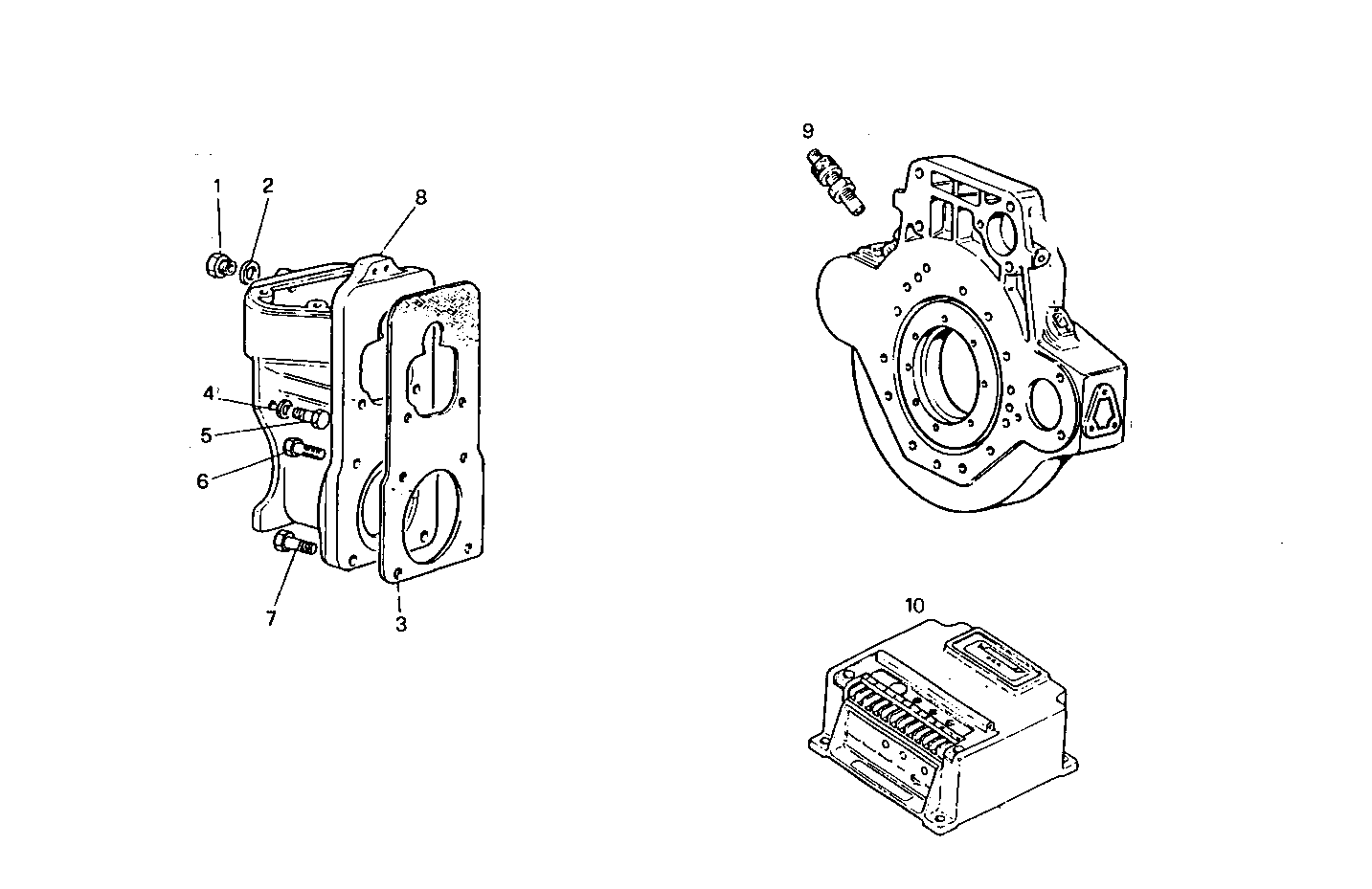

1460.020/02 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 10300711 | LOCK PLUG M16 |
| 2 | 10278660 | SEAL GASKET Ø16X22 MM SP=1 MM |
| 3 | 1300955 | GASKET |
| 4 | 11197779 | SPRING WASHER Ø6X12 MM |
| 5 | 4934404 | SCREW |
| 6 | 14309221 | SCREW M6X65 |
| 7 | 16689177 | SOCKET-HEAD SCREW M6X16 MM |
| 8 | 8108576 | SUPPORT |
| 9 | 4933859 | PICK-UP |
| 10 | 8103081 | INJECTION CONTROL |
| 11 | 17494631 | SPRING WASHER Ø5 MM |
