8210SRi26.00

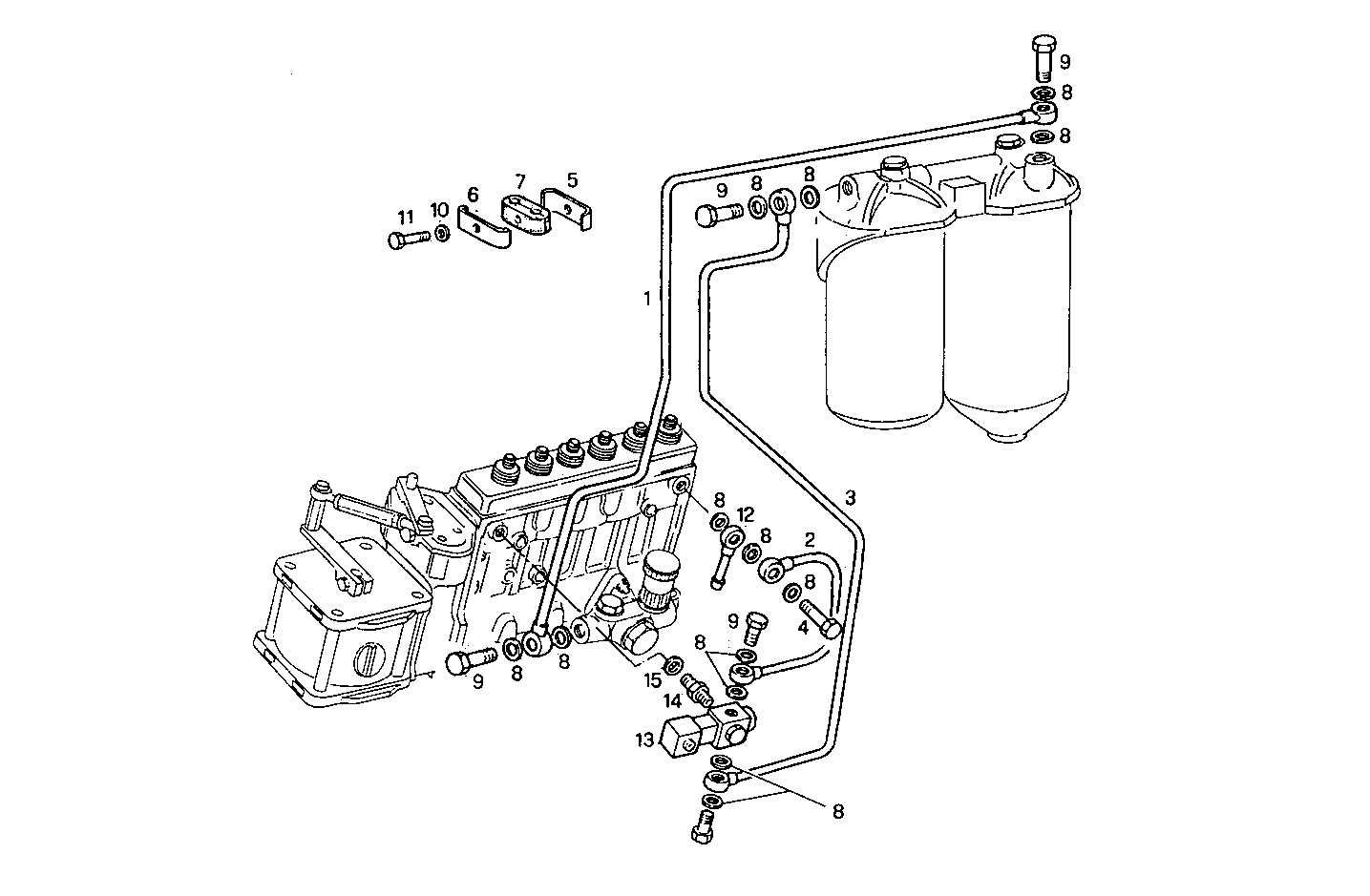

2030.029 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4736611 | FUEL LINE |
| 2 | 8109318 | FUEL LINE |
| 3 | 8113819 | INJECTION LINE |
| 4 | 4936577 | SCREW CONNECTOR |
| 5 | 4644289 | CLIP |
| 6 | 4644288 | CLIP |
| 7 | 4871771 | RUBBER LUG |
| 8 | 10282460 | SEAL GASKET Ø14X20 MM |
| 9 | 10184317 | SCREW CONNECTOR M14X1,5 |
| 10 | 11197779 | SPRING WASHER Ø6X12 MM |
| 11 | 16603824 | SCREW M6X25 |
| 12 | 79010214 | PIPE SOCKET 1C |
| 13 | 8108944 | ELECTROVALVE |
| 14 | 4929626 | PIPE SOCKET |
| 15 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
