8210SRi26.00

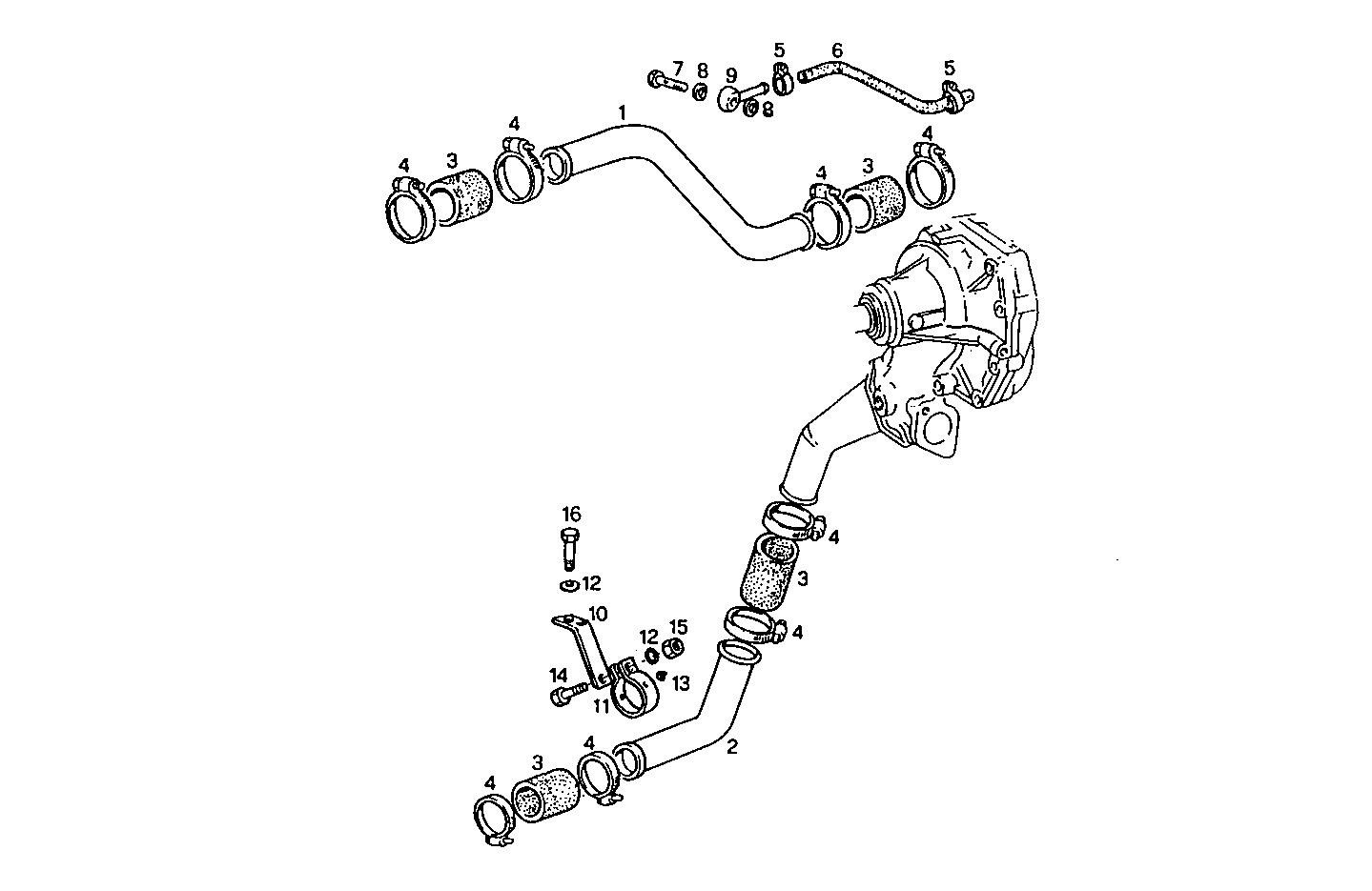

3210.036/04 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8005093 | WATER PIPE |
| 2 | 8005092 | WATER PIPE |
| 3 | 17745887 | RUBBER SLEEVE WATER |
| 4 | 4830091 | CLIP |
| 5 | 12178990 | CLIP |
| 6 | 19070287 | WATER HOSE L=1100 MM |
| 7 | 10181717 | SCREW CONNECTOR M12X1,5X23 |
| 8 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 9 | 4935134 | OIL LINE |
| 10 | 8108989 | RETAINER |
| 11 | 4936328 | CLIP ASSY |
| 12 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 13 | 4565875 | RUBBER PAD |
| 14 | 11306921 | SCREW M10X1,25X30 |
| 15 | 12164711 | HEXAGON NUT M10X1,25 |
| 16 | 15971821 | SCREW M10X1,25X100 |
