8210SRi26.01

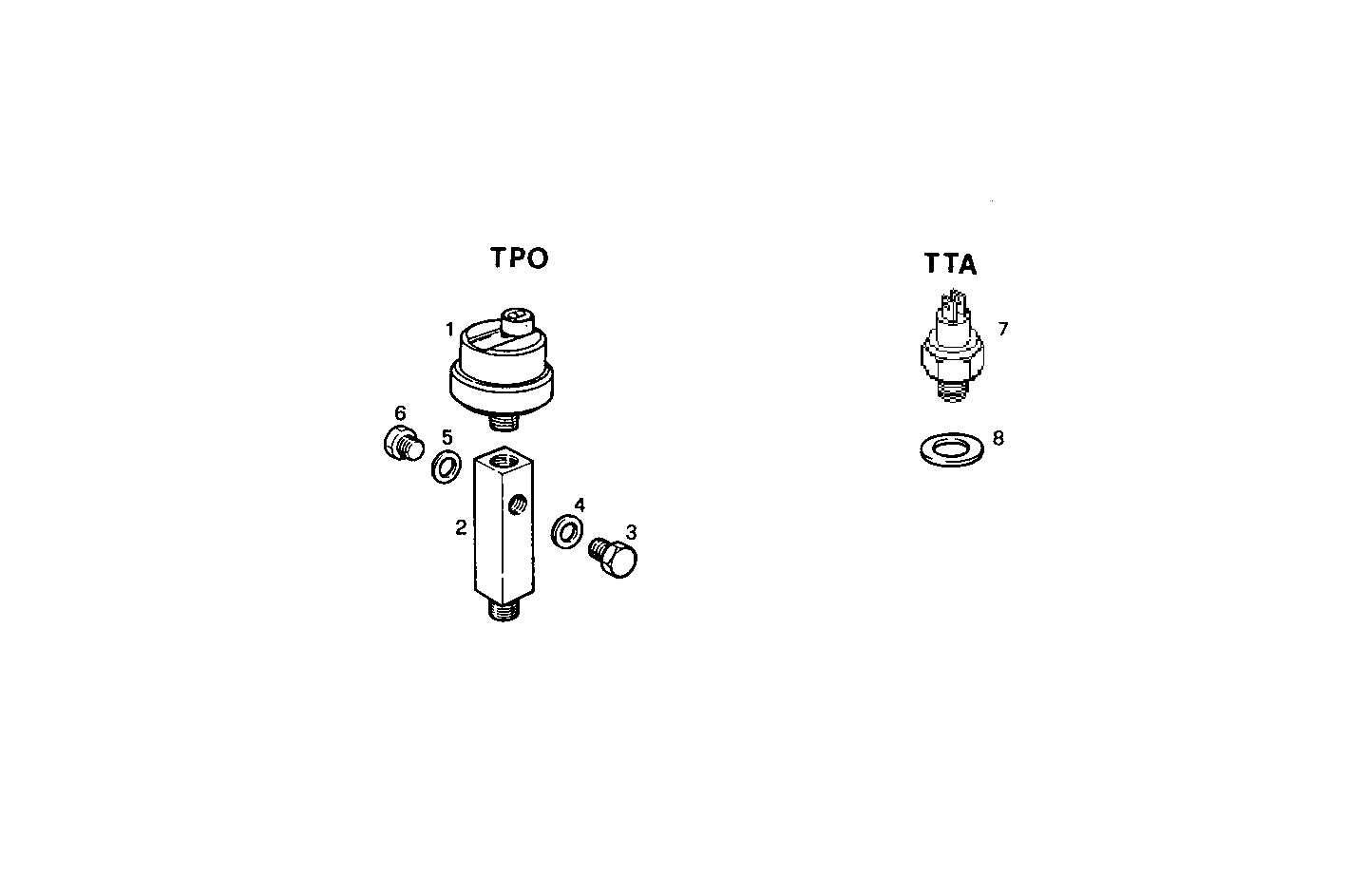

A38510007 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8100417 | TRANSMITTER TPO |
| 2 | 4929576 | PIPE SOCKET |
| 3 | 16992111 | THREADED PLUG M10X1 |
| 4 | 4858606 | GASKET Ø10X14X1 MM |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 10300571 | PLUG M12X1,5 |
| 7 | 8100418 | TRANSMITTER TTA |
| 8 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
