8210SRi26.02

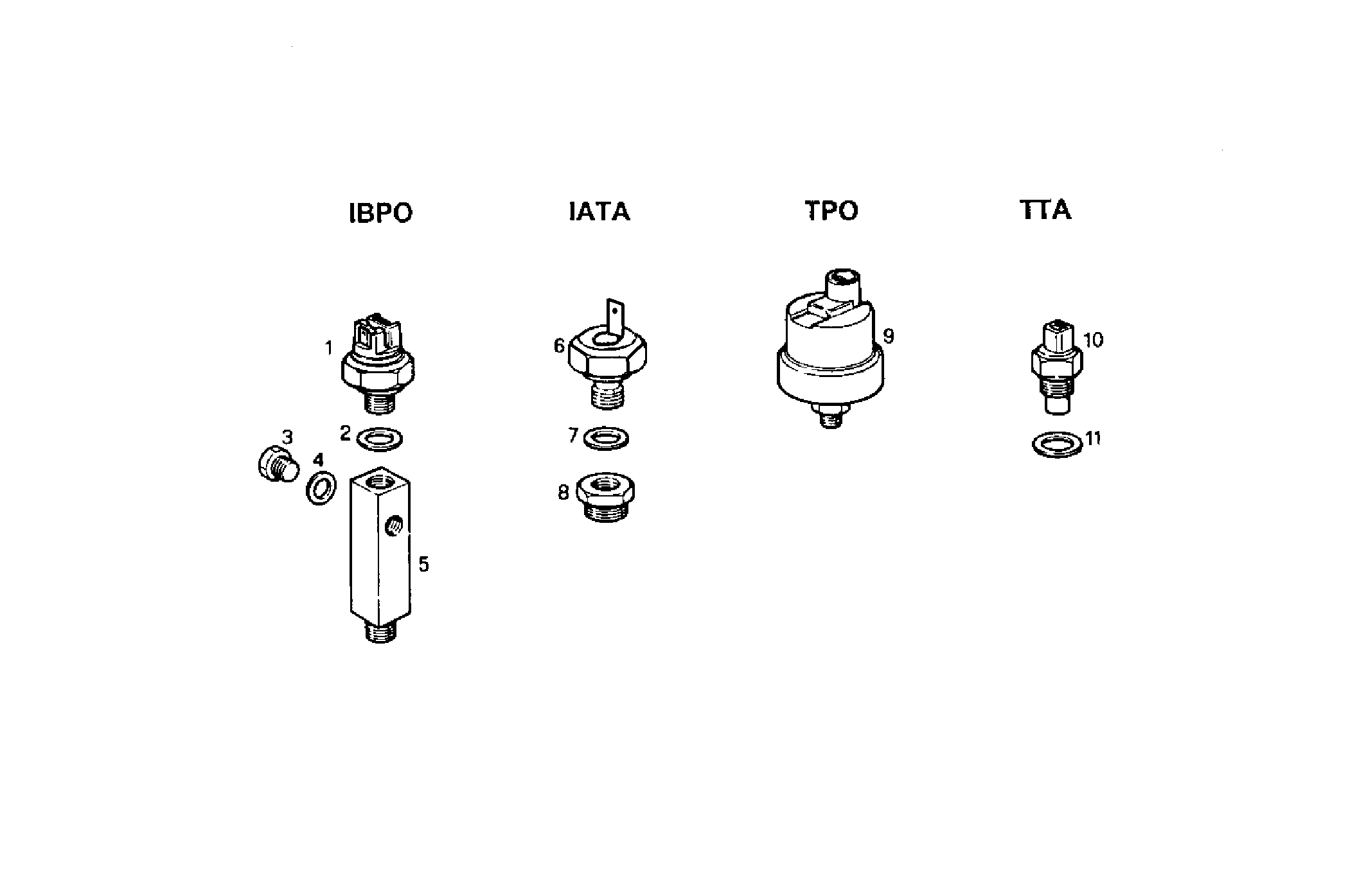

A38550044 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VEGLIA
| Item | Part number | Description |
|---|---|---|
| 1 | 8114030 | TRANSMITTER IBPO |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 16992111 | THREADED PLUG M10X1 |
| 4 | 4858606 | GASKET Ø10X14X1 MM |
| 5 | 4929576 | PIPE SOCKET |
| 6 | 8019581 | TRANSMITTER IATA |
| 7 | 4658608 | GASKET |
| 8 | 4928177 | PIPE SOCKET |
| 9 | 8100563 | TRANSMITTER TPO |
| 10 | 4933019 | TRANSMITTER TTA - TTO |
| 11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
