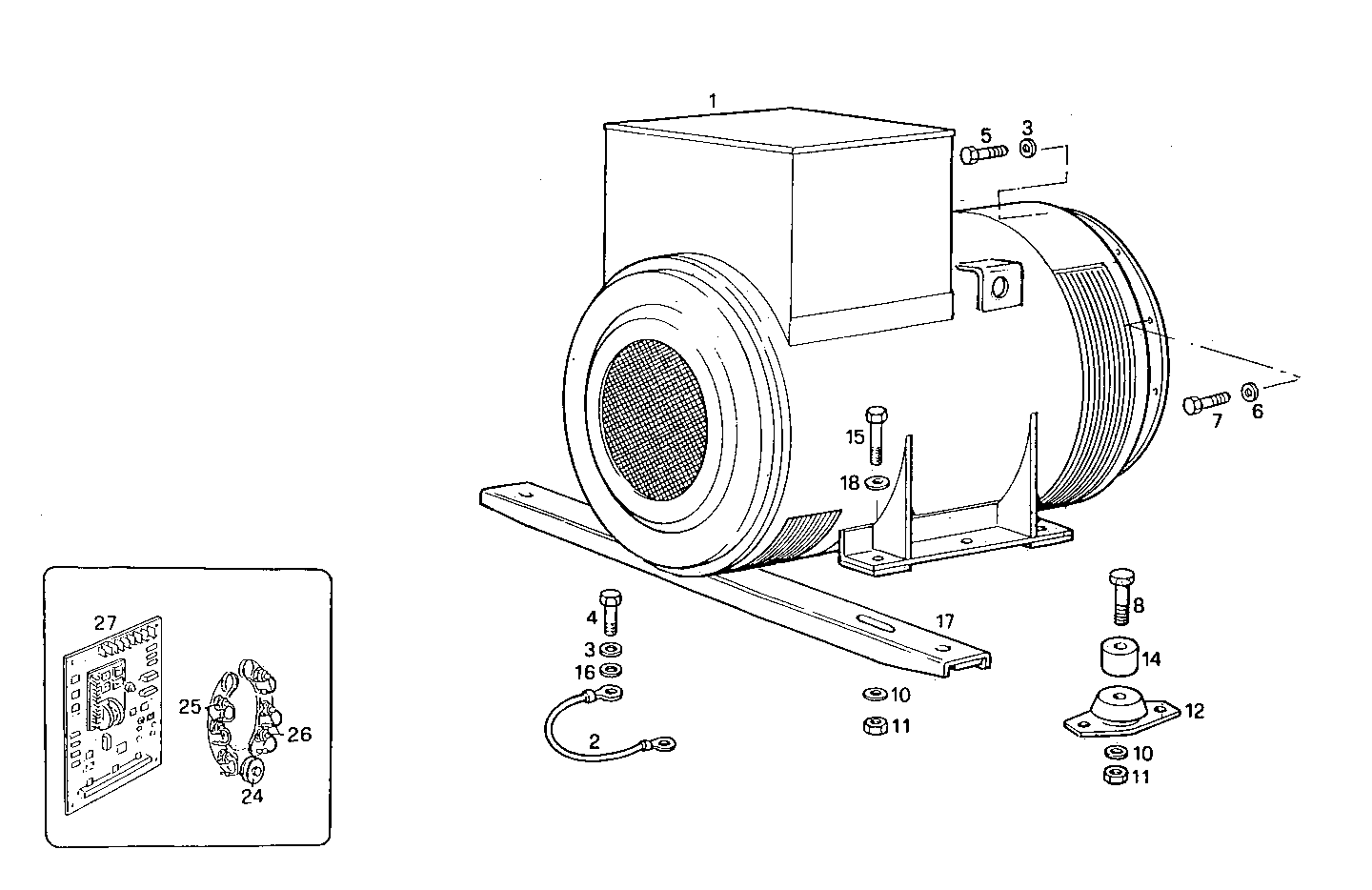

| Item |
Part number |
Description |
|
1 |
503111817 |
ELECTRIC MACHINE MJB315 SA4 |
|
1 |
503110259 |
ELECTRIC MACHINE M8B 315 SA4-300KVA |
|
2 |
8110852 |
EARTH WIRE |
|
3 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
4 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
5 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
6 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
7 |
15540431 |
HEXAGON BOLT M12X1,25X30 MM |
|
8 |
16620624 |
SCREW M24X130 |
|
10 |
17093174 |
WASHER Ø24X46X5,4 MM |
|
11 |
17039721 |
HEXAGON NUT M24 |
|
12 |
4955094 |
RUBBER PAD |
|
14 |
8108891 |
SPACING BAR |
|
15 |
16620124 |
SCREW M24X3X80 |
|
16 |
17095104 |
WASHER Ø10X21X2 MM |
|
17 |
8016859 |
SUPPORT |
|
18 |
8016962 |
WASHER |
|
24 |
8093676 |
SUPPRESSOR MARELLI |
|
25 |
8106488 |
EL.MACHINE DIODE MARELLI - REVERSE |
|
26 |
8106487 |
EL.MACHINE DIODE MARELLI - FORWARD |
|
27 |
8093680 |
EL.MACHINE VOLTAGE REGUL. MARELLI |
