8210SRi27.00A580

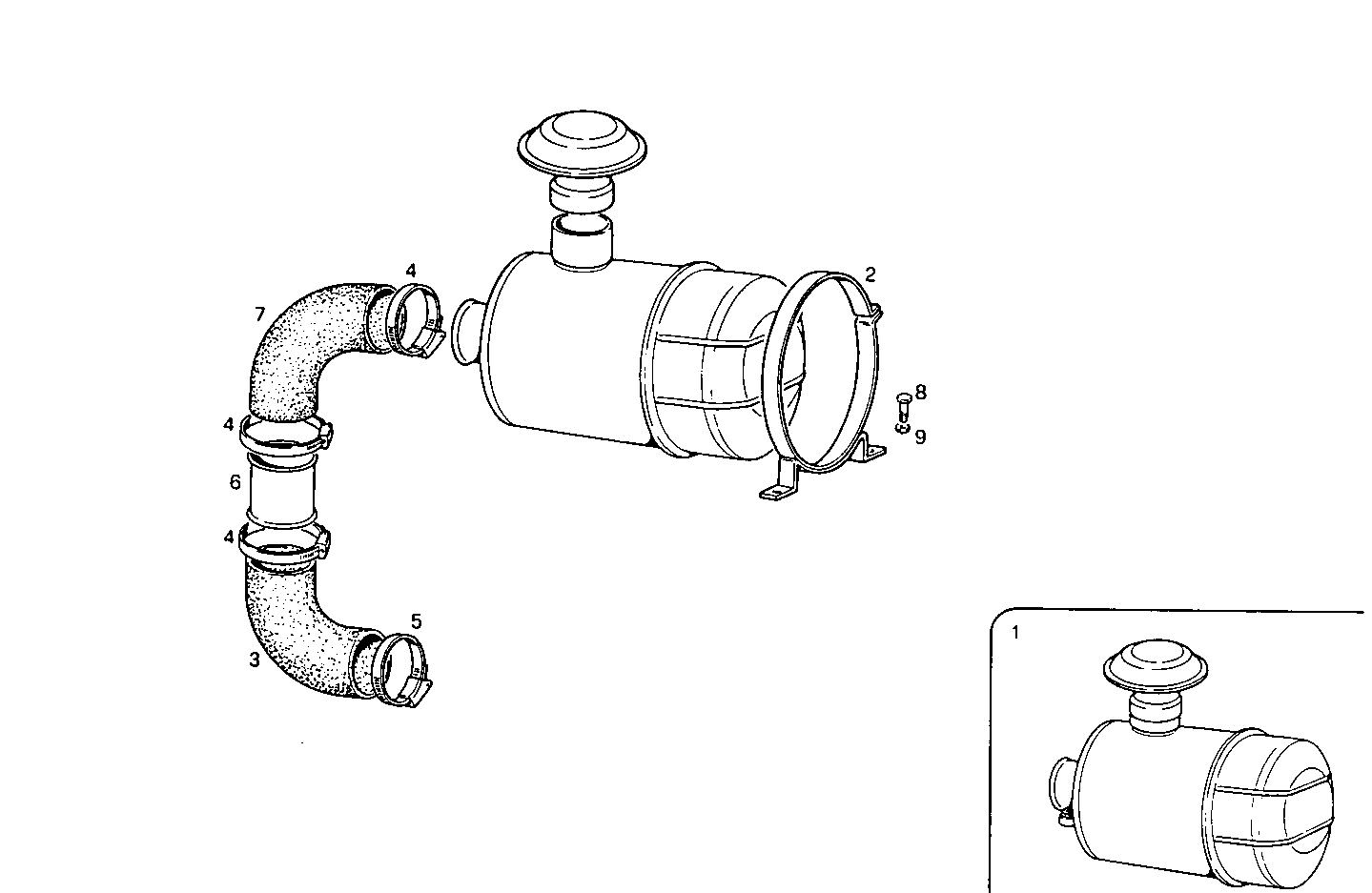

A21170901 DRY AIR CLEANER - with mechanical clogging gauge - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8107805 | AIR CLEANER ASSY |
| 2 | 8105666 | RETAINER |
| 3 | 8113939 | FILTER HOSE |
| 4 | 17766093 | CLIP Ø160/180 MM |
| 5 | 17765793 | CLIP Ø130/150 MM |
| 6 | 8113940 | AIR PIPE/DUCT |
| 7 | 8113938 | FILTER HOSE |
| 8 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 9 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
