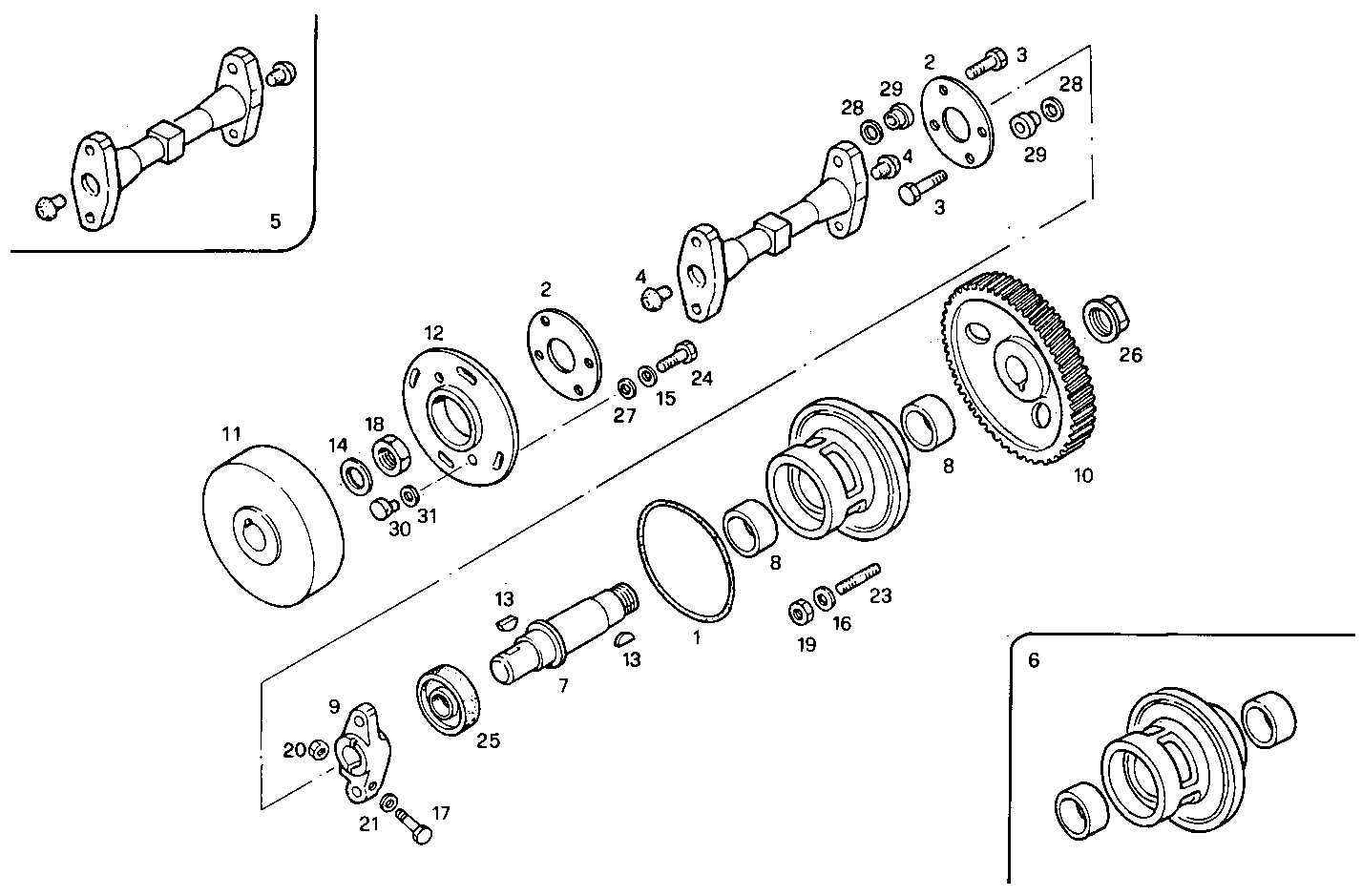

| Item |
Part number |
Description |
|
1 |
17292481 |
O-RING �132,9 MM SP=3,5 MM |
|
2 |
4882440 |
RING |
|
3 |
17456534 |
SCREW M10X25 |
|
4 |
4608219 |
RUBBER PAD |
|
5 |
98425508 |
SHAFT ASSY |
|
6 |
98441163 |
SUPPORT ASSY |
|
7 |
99448787 |
INJECT.PUMP SPIND |
|
8 |
4529701 |
BEARING BUSH |
|
9 |
98462133 |
INJECT.PUMP SLEEVE |
|
10 |
98418371 |
INJ.PUMP DRIV.GEA |
|
11 |
98424707 |
INJECT.PUMP DAMPE |
|
12 |
98424813 |
INJECT.PUMP SLEEVE |
|
13 |
10206320 |
KEY 5X7,5 MM |
|
14 |
10731121 |
WASHER �20,7 MM |
|
15 |
17095104 |
WASHER �10X21X2 MM |
|
16 |
17090274 |
WASHER �10X20 MM |
|
17 |
15541021 |
HEXAGON BOLT M12X1,25X60 MM |
|
18 |
16980931 |
HEXAGON NUT M20X1,5 |
|
19 |
17038221 |
HEXAGON NUT M10 |
|
20 |
17038621 |
NUT M12 |
|
21 |
17091074 |
WASHER �12X24X2,8 MM |
|
23 |
13449424 |
STUD M10X15X22 |
|
24 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
25 |
98494989 |
SHAFT SEAL �45X75 MM SP=10 MM |
|
26 |
4799474 |
HEXAGON NUT |
|
27 |
17090174 |
SPRING WASHER �10X20 MM |
|
28 |
4882441 |
WASHER |
|
29 |
4882442 |
BUSH |
|
30 |
98425632 |
ADJUSTING CAM |
|
31 |
61316640 |
CORRUGATED WASHER |
