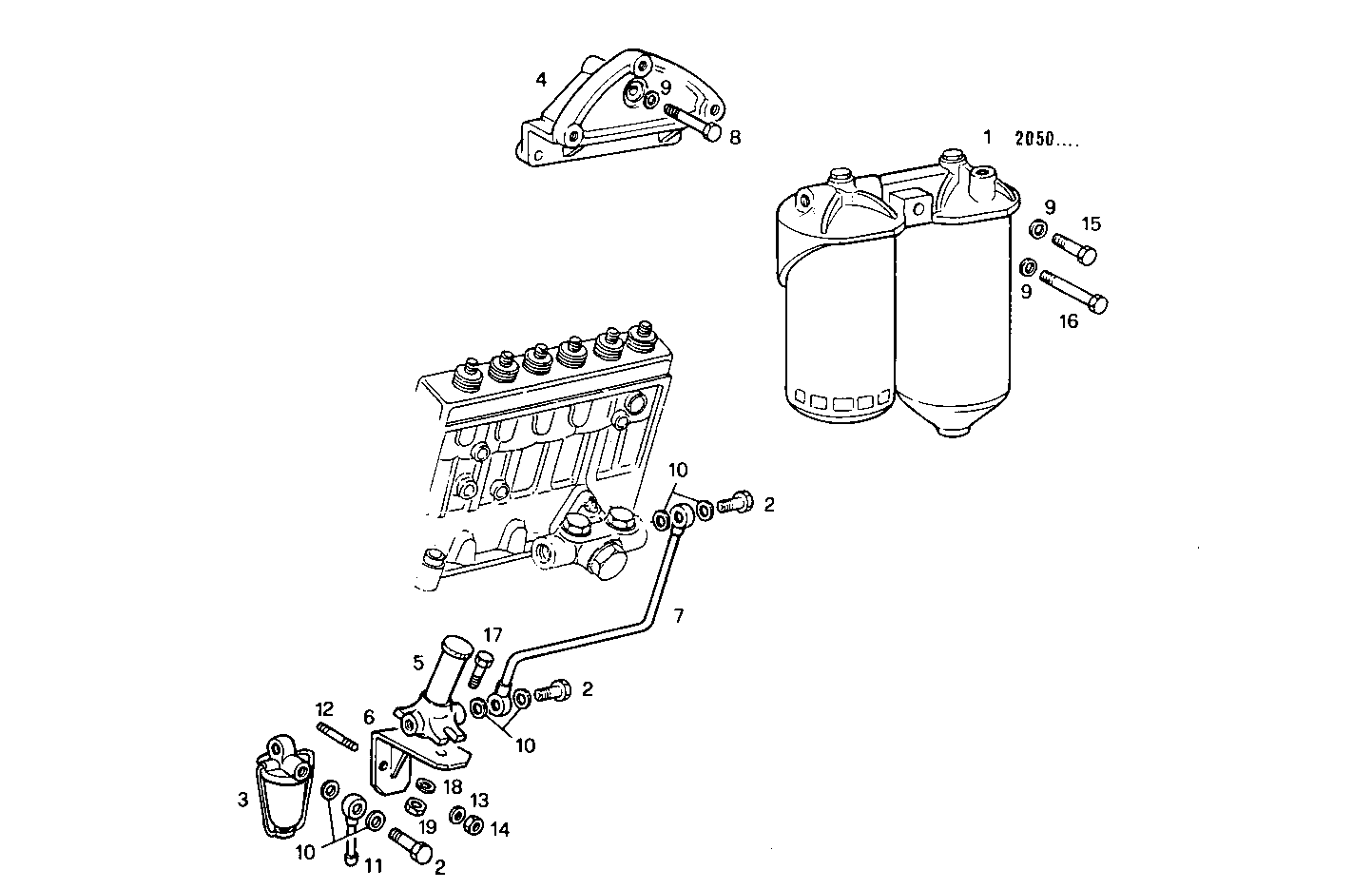

| Item |
Part number |
Description |
|
1 |
4690738 |
FUEL FILTER ASSY |
|
2 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
3 |
4797318 |
FUEL FILTER CORONA |
|
4 |
4702471 |
FILTER SUPPORT |
|
5 |
4797319 |
HAND PUMP ASSY |
|
6 |
8010575 |
RETAINER |
|
7 |
8010519 |
FUEL LINE |
|
8 |
15971330 |
HEXAGON BOLT M10X75 MM |
|
9 |
17090174 |
SPRING WASHER �10X20 MM |
|
10 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
11 |
98404882 |
PIPE SOCKET �8 MM |
|
12 |
16729224 |
STUD M8X16 MM |
|
13 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
15972621 |
HEXAGON BOLT M10X1,25X140 MM |
|
16 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
17 |
16603924 |
HEXAGON BOLT M6X30 MM |
|
18 |
17088474 |
WASHER �6X12 MM |
|
19 |
17037821 |
HEXAGON NUT M6X1 |
