8210SRi28.00A550

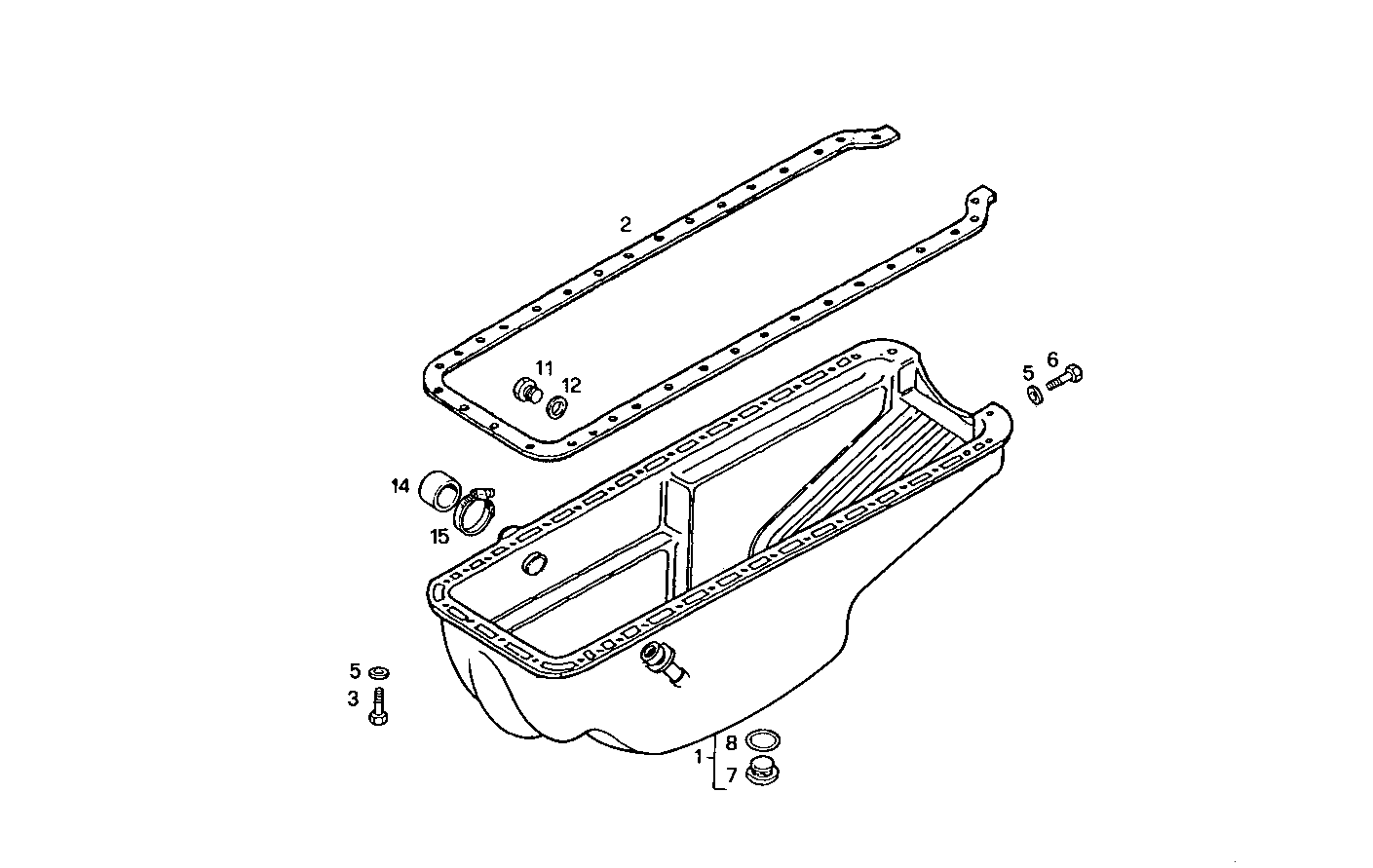

0420.078 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4803020 | OIL SUMP ASSY |
| 2 | 98493262 | OIL SUMP GASKET |
| 3 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 10923624 | SCREW |
| 7 | 98491299 | THREADED PLUG M22X1,5 |
| 8 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 11 | 11903211 | LOCK PLUG M12X1,25 |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 14 | 4695740 | RUBBER SLEEVE |
| 15 | 17764791 | CLIP Ø32/50 MM |
