8210SRi29.00

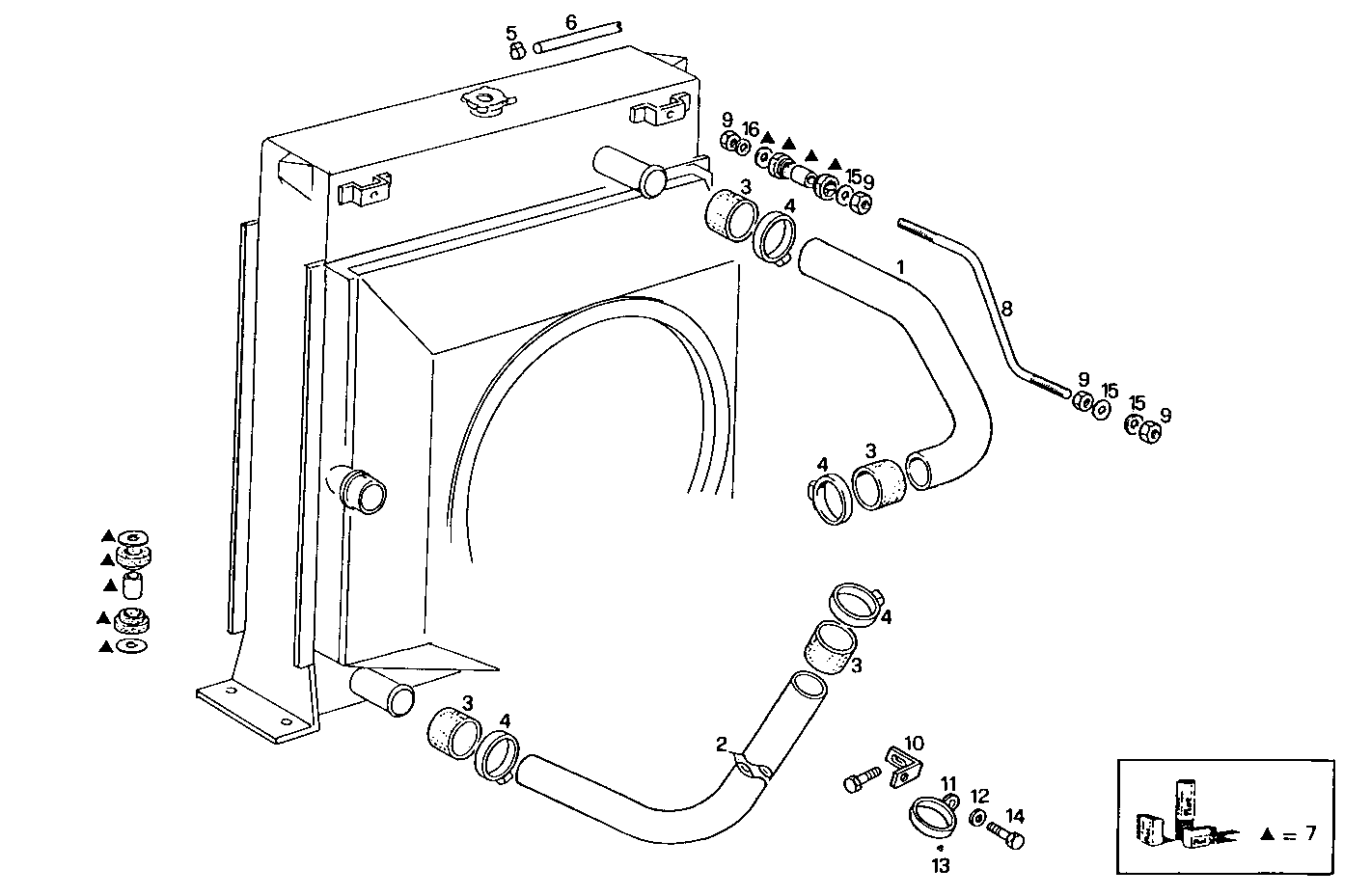

3300.023/02 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8028824 | WATER PIPE |
| 2 | 8028025 | WATER PIPE |
| 3 | 17745887 | RUBBER SLEEVE WATER |
| 4 | 4830091 | CLIP |
| 5 | 18087991 | CLIP �8/16 MM |
| 6 | 19056687 | RUBBER HOSE �7,5 MM |
| 7 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 8 | 8027757 | TIE ROD |
| 9 | 17038421 | HEXAGON NUT M12 (8) |
| 10 | 8100819 | RETAINER |
| 11 | 4936328 | CLIP ASSY |
| 12 | 17090174 | SPRING WASHER �10X20 MM |
| 13 | 4565875 | RUBBER PAD |
| 14 | 11306921 | SCREW M10X1,25X30 |
| 15 | 17091374 | SPRING WASHER �12X30X3,0 MM |
| 16 | 17095304 | WASHER �12X24 MM |
