8210SRi29.00

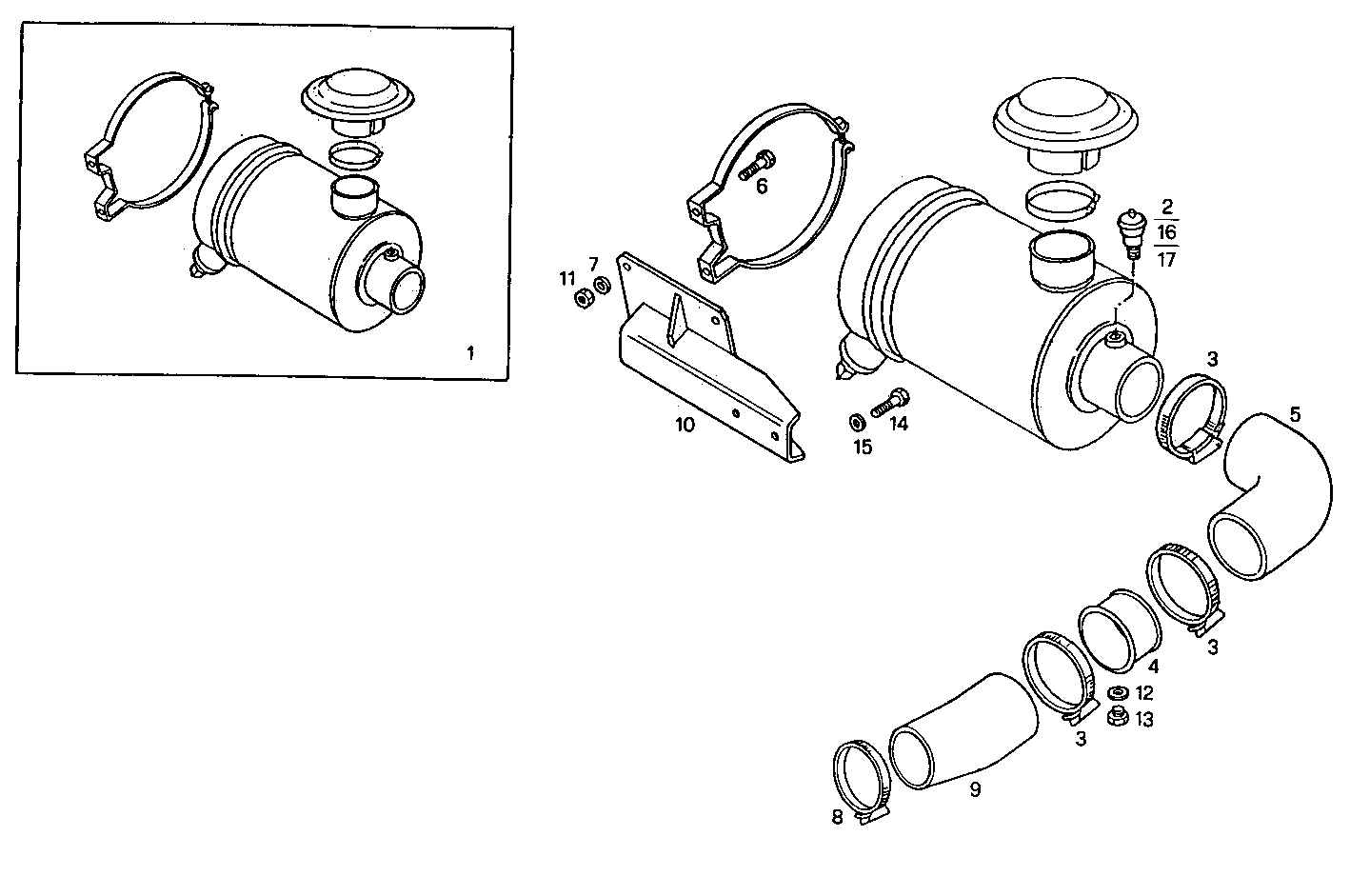

A21210037 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016974 AIR CLEANER OPT.
2 4936137 CHOCKED FILTER INDIC. MECHANICAL
3 17766091 CLIP Ø160/180 MM
4 8018638 AIR MANIFOLD
5 8018096 FILTER HOSE
6 16609924 HEXAGON BOLT M12X30 MM (8.8)
7 17091074 WASHER Ø12X24X2,8 MM
8 17765791 CLIP DIA 130/150 [up to 10-93]
9 8018642 FILTER HOSE
10 8018639 SUPPORT
11 17038421 HEXAGON NUT M12 (8)
12 4858606 GASKET Ø10X14X1 MM
13 11903111 LOCK PLUG M10X1,25
14 11391531 SCREW
15 98416514 WASHER
16 8022540 CHOCKED FILTER INDIC. MECHANICAL
17 8027294 CHOCKED FILTER INDIC. MECHANICAL
